LEDme BAR

SLP1/SLP2 /LEDme Bar展柜灯

LEDme BAR

简介 特点 视频 应用 规格 文档

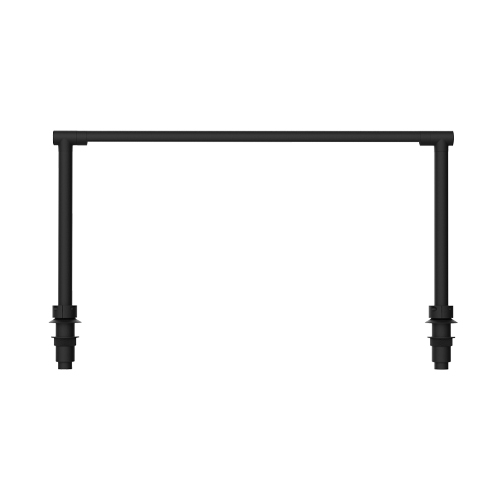

LEDme BAR

SLP1/SLP2 /LEDme Bar展柜灯

外形设计精巧，由拉伸铝型材制成灯身，提供多种长度尺寸选择，并可根据桌柜大小调节灯具高度尺寸和照射方向，更重要的是能够支持现场徒手拼接，具有较高的使用灵活性。内置 LED 发光模组，外置恒流或恒压驱动，并支持多种调光方式。

产品特点

让光在有限的空间得到无限的延伸

LiteBox偏光洗墙系统

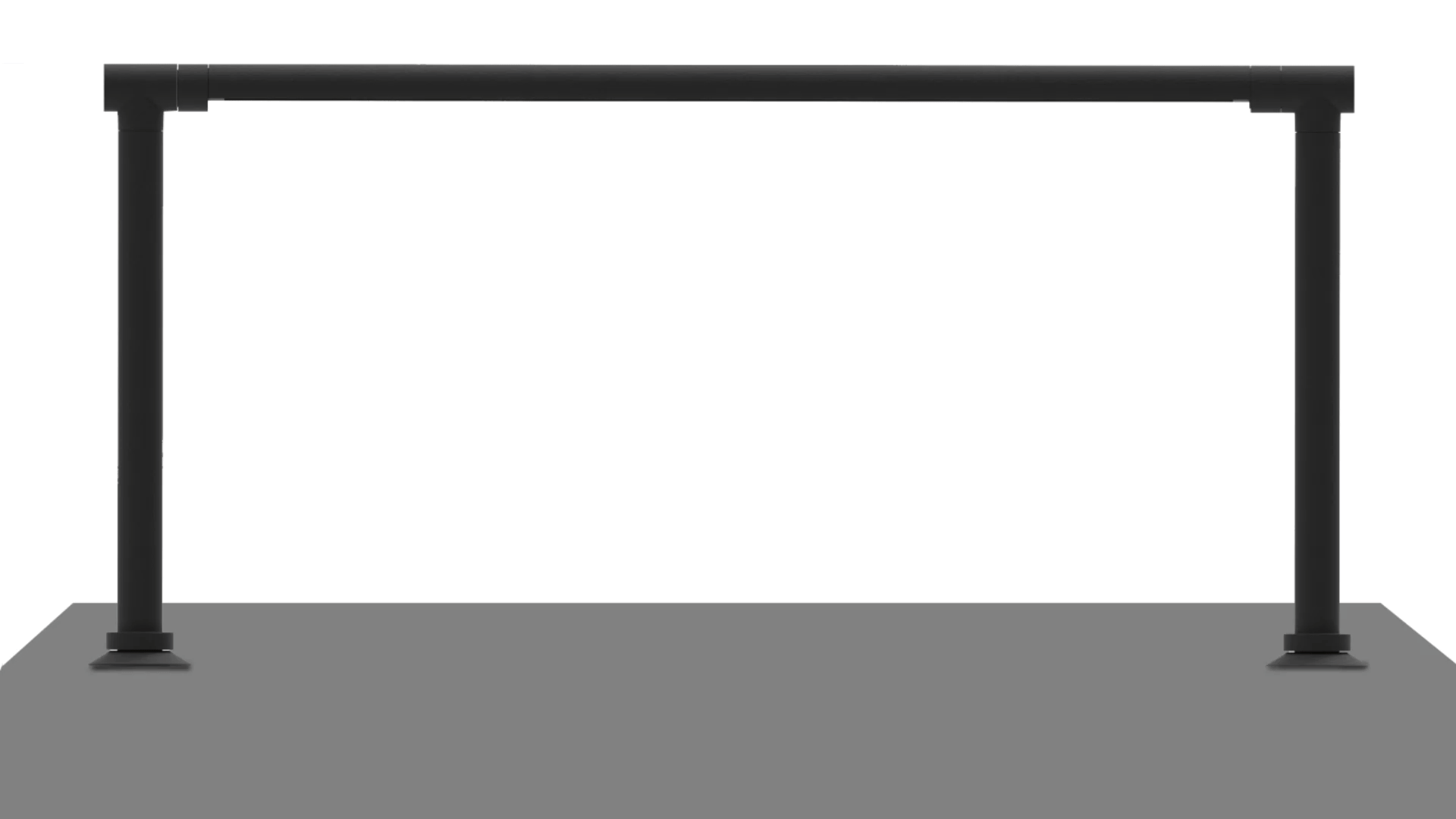

灯体旋转

绕灯体轴线可 0°~60°调节照射方向

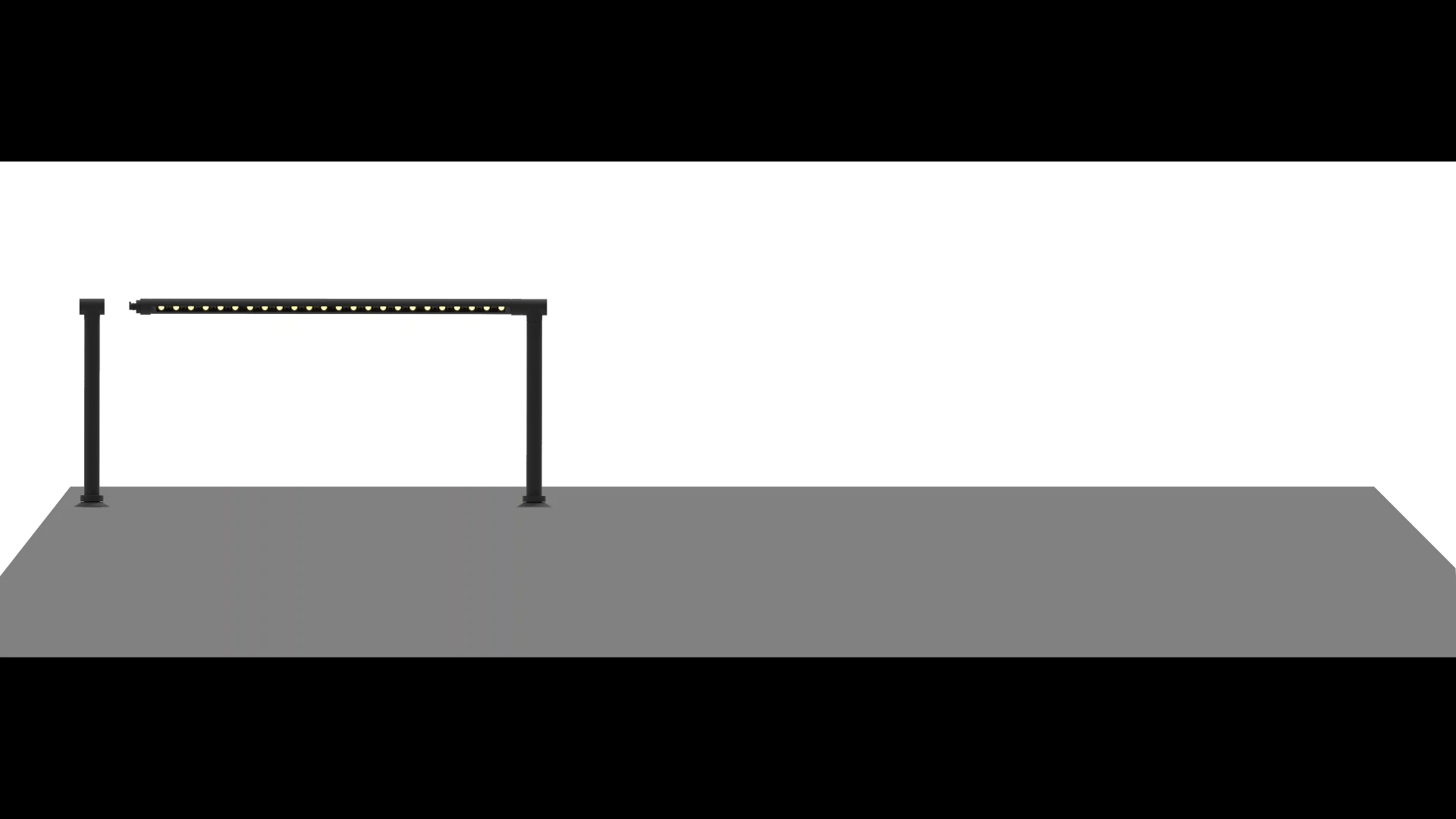

专利拼接技术，现场灵活拼接

单根支持最小0.5m, 最长2m长度，并加载WAC 专利拼接技术，可在安装现场徒手拼接。

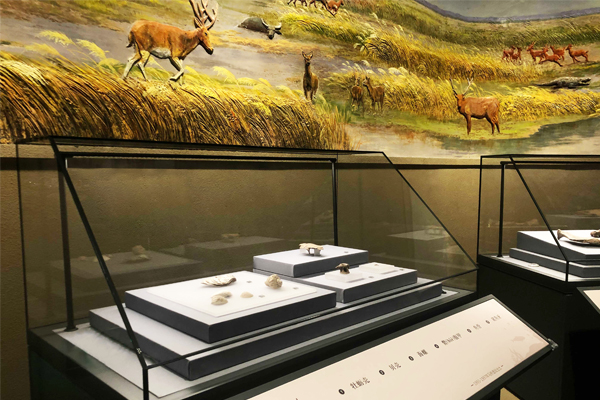

上海市闵行博物馆

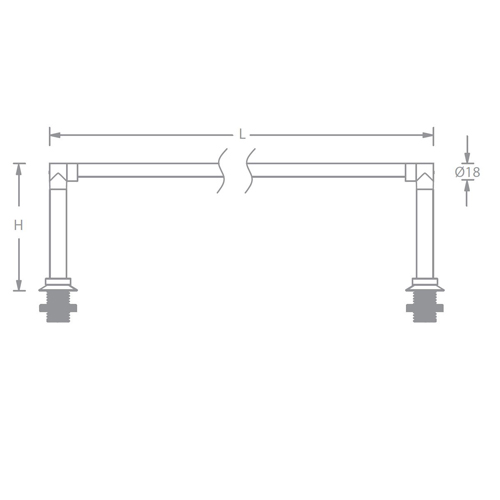

产品规格
型号 输入电压/电流 开孔尺寸（mm） 灯具长度/尺寸 光束角 色温（K） 显色指数 调光控制
SLP1-1005T-W930BK 24V DC ø25 间距468 497mm Wall Washer 3000 Ra 90 电器另配
SLP1-1005T-W940BK 24V DC ø25 间距468 497mm Wall Washer 4000 Ra 90 电器另配
SLP1-1005T-WA30BK 24V DC ø25 间距468 497mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP1-1005T-WA40BK 24V DC ø25 间距468 497mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP1-1006T-W930BK 24V DC ø25 间距570 599mm Wall Washer 3000 Ra 90 电器另配
SLP1-1006T-W940BK 24V DC ø25 间距570 599mm Wall Washer 4000 Ra 90 电器另配
SLP1-1006T-WA30BK 24V DC ø25 间距570 599mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP1-1006T-WA40BK 24V DC ø25 间距570 599mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP1-1007T-W930BK 24V DC ø25 间距672 701mm Wall Washer 3000 Ra 90 电器另配
SLP1-1007T-W940BK 24V DC ø25 间距672 701mm Wall Washer 4000 Ra 90 电器另配
SLP1-1007T-WA30BK 24V DC ø25 间距672 701mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP1-1007T-WA40BK 24V DC ø25 间距672 701mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP1-1008T-W930BK 24V DC ø25 间距774 803mm Wall Washer 3000 Ra 90 电器另配
SLP1-1008T-W940BK 24V DC ø25 间距774 803mm Wall Washer 4000 Ra 90 电器另配
SLP1-1008T-WA30BK 24V DC ø25 间距774 803mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP1-1008T-WA40BK 24V DC ø25 间距774 803mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP1-1009T-W930BK 24V DC ø25 间距876 905mm Wall Washer 3000 Ra 90 电器另配
SLP1-1009T-W940BK 24V DC ø25 间距876 905mm Wall Washer 4000 Ra 90 电器另配
SLP1-1009T-WA30BK 24V DC ø25 间距876 905mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP1-1009T-WA40BK 24V DC ø25 间距876 905mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP1-1010T-W930BK 24V DC ø25 间距978 1007mm Wall Washer 3000 Ra 90 电器另配
SLP1-1010T-W940BK 24V DC ø25 间距978 1007mm Wall Washer 4000 Ra 90 电器另配
SLP1-1010T-WA30BK 24V DC ø25 间距978 1007mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP1-1010T-WA40BK 24V DC ø25 间距978 1007mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP1-1011T-W930BK 24V DC ø25 间距1080 1109mm Wall Washer 3000 Ra 90 电器另配
SLP1-1011T-W940BK 24V DC ø25 间距1080 1109mm Wall Washer 4000 Ra 90 电器另配
SLP1-1011T-WA30BK 24V DC ø25 间距1080 1109mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP1-1011T-WA40BK 24V DC ø25 间距1080 1109mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP1-1012T-W930BK 24V DC ø25 间距1182 1211mm Wall Washer 3000 Ra 90 电器另配
SLP1-1012T-W940BK 24V DC ø25 间距1182 1211mm Wall Washer 4000 Ra 90 电器另配
SLP1-1012T-WA30BK 24V DC ø25 间距1182 1211mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP1-1012T-WA40BK 24V DC ø25 间距1182 1211mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP1-1013T-W930BK 24V DC ø25 间距1284 1313mm Wall Washer 3000 Ra 90 电器另配
SLP1-1013T-W940BK 24V DC ø25 间距1284 1313mm Wall Washer 4000 Ra 90 电器另配
SLP1-1013T-WA30BK 24V DC ø25 间距1284 1313mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP1-1013T-WA40BK 24V DC ø25 间距1284 1313mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP1-1014T-W930BK 24V DC ø25 间距1388 1417mm Wall Washer 3000 Ra 90 电器另配
SLP1-1014T-W940BK 24V DC ø25 间距1388 1417mm Wall Washer 4000 Ra 90 电器另配
SLP1-1014T-WA30BK 24V DC ø25 间距1388 1417mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP1-1014T-WA40BK 24V DC ø25 间距1388 1417mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP1-1015T-W930BK 24V DC ø25 间距1490 1519mm Wall Washer 3000 Ra 90 电器另配
SLP1-1015T-W940BK 24V DC ø25 间距1490 1519mm Wall Washer 4000 Ra 90 电器另配
SLP1-1015T-WA30BK 24V DC ø25 间距1490 1519mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP1-1015T-WA40BK 24V DC ø25 间距1490 1519mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP1-1016T-W930BK 24V DC ø25 间距1592 1621mm Wall Washer 3000 Ra 90 电器另配
SLP1-1016T-W940BK 24V DC ø25 间距1592 1621mm Wall Washer 4000 Ra 90 电器另配
SLP1-1016T-WA30BK 24V DC ø25 间距1592 1621mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP1-1016T-WA40BK 24V DC ø25 间距1592 1621mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP1-1017T-W930BK 24V DC ø25 间距1694 1723mm Wall Washer 3000 Ra 90 电器另配
SLP1-1017T-W940BK 24V DC ø25 间距1694 1723mm Wall Washer 4000 Ra 90 电器另配
SLP1-1017T-WA30BK 24V DC ø25 间距1694 1723mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP1-1017T-WA40BK 24V DC ø25 间距1694 1723mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP1-1018T-W930BK 24V DC ø25 间距1796 1825mm Wall Washer 3000 Ra 90 电器另配
SLP1-1018T-W940BK 24V DC ø25 间距1796 1825mm Wall Washer 4000 Ra 90 电器另配
SLP1-1018T-WA30BK 24V DC ø25 间距1796 1825mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP1-1018T-WA40BK 24V DC ø25 间距1796 1825mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP1-1019T-W930BK 24V DC ø25 间距1898 1927mm Wall Washer 3000 Ra 90 电器另配
SLP1-1019T-W940BK 24V DC ø25 间距1898 1927mm Wall Washer 4000 Ra 90 电器另配
SLP1-1019T-WA30BK 24V DC ø25 间距1898 1927mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP1-1019T-WA40BK 24V DC ø25 间距1898 1927mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP1-1020T-W930BK 24V DC ø25 间距2000 2029mm Wall Washer 3000 Ra 90 电器另配
SLP1-1020T-W940BK 24V DC ø25 间距2000 2029mm Wall Washer 4000 Ra 90 电器另配
SLP1-1020T-WA30BK 24V DC ø25 间距2000 2029mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP1-1020T-WA40BK 24V DC ø25 间距2000 2029mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP1-2005T-W930BK 24V DC ø25 间距468 497mm Wall Washer 3000 Ra 90 电器另配
SLP1-2005T-W940BK 24V DC ø25 间距468 497mm Wall Washer 4000 Ra 90 电器另配
SLP1-2005T-WA30BK 24V DC ø25 间距468 497mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP1-2005T-WA40BK 24V DC ø25 间距468 497mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP1-2006T-W930BK 24V DC ø25 间距570 599mm Wall Washer 3000 Ra 90 电器另配
SLP1-2006T-W940BK 24V DC ø25 间距570 599mm Wall Washer 4000 Ra 90 电器另配
SLP1-2006T-WA30BK 24V DC ø25 间距570 599mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP1-2006T-WA40BK 24V DC ø25 间距570 599mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP1-2007T-W930BK 24V DC ø25 间距672 701mm Wall Washer 3000 Ra 90 电器另配
SLP1-2007T-W940BK 24V DC ø25 间距672 701mm Wall Washer 4000 Ra 90 电器另配
SLP1-2007T-WA30BK 24V DC ø25 间距672 701mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP1-2007T-WA40BK 24V DC ø25 间距672 701mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP1-2008T-W930BK 24V DC ø25 间距774 803mm Wall Washer 3000 Ra 90 电器另配
SLP1-2008T-W940BK 24V DC ø25 间距774 803mm Wall Washer 4000 Ra 90 电器另配
SLP1-2008T-WA30BK 24V DC ø25 间距774 803mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP1-2008T-WA40BK 24V DC ø25 间距774 803mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP1-2009T-W930BK 24V DC ø25 间距876 905mm Wall Washer 3000 Ra 90 电器另配
SLP1-2009T-W940BK 24V DC ø25 间距876 905mm Wall Washer 4000 Ra 90 电器另配
SLP1-2009T-WA30BK 24V DC ø25 间距876 905mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP1-2009T-WA40BK 24V DC ø25 间距876 905mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP1-2010T-W930BK 24V DC ø25 间距978 1007mm Wall Washer 3000 Ra 90 电器另配
SLP1-2010T-W940BK 24V DC ø25 间距978 1007mm Wall Washer 4000 Ra 90 电器另配
SLP1-2010T-WA30BK 24V DC ø25 间距978 1007mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP1-2010T-WA40BK 24V DC ø25 间距978 1007mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP1-2011T-W930BK 24V DC ø25 间距1080 1109mm Wall Washer 3000 Ra 90 电器另配
SLP1-2011T-W940BK 24V DC ø25 间距1080 1109mm Wall Washer 4000 Ra 90 电器另配
SLP1-2011T-WA30BK 24V DC ø25 间距1080 1109mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP1-2011T-WA40BK 24V DC ø25 间距1080 1109mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP1-2012T-W930BK 24V DC ø25 间距1182 1211mm Wall Washer 3000 Ra 90 电器另配
SLP1-2012T-W940BK 24V DC ø25 间距1182 1211mm Wall Washer 4000 Ra 90 电器另配
SLP1-2012T-WA30BK 24V DC ø25 间距1182 1211mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP1-2012T-WA40BK 24V DC ø25 间距1182 1211mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP1-2013T-W930BK 24V DC ø25 间距1284 1313mm Wall Washer 3000 Ra 90 电器另配
SLP1-2013T-W940BK 24V DC ø25 间距1284 1313mm Wall Washer 4000 Ra 90 电器另配
SLP1-2013T-WA30BK 24V DC ø25 间距1284 1313mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP1-2013T-WA40BK 24V DC ø25 间距1284 1313mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP1-2014T-W930BK 24V DC ø25 间距1388 1417mm Wall Washer 3000 Ra 90 电器另配
SLP1-2014T-W940BK 24V DC ø25 间距1388 1417mm Wall Washer 4000 Ra 90 电器另配
SLP1-2014T-WA30BK 24V DC ø25 间距1388 1417mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP1-2014T-WA40BK 24V DC ø25 间距1388 1417mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP1-2015T-W930BK 24V DC ø25 间距1490 1519mm Wall Washer 3000 Ra 90 电器另配
SLP1-2015T-W940BK 24V DC ø25 间距1490 1519mm Wall Washer 4000 Ra 90 电器另配
SLP1-2015T-WA30BK 24V DC ø25 间距1490 1519mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP1-2015T-WA40BK 24V DC ø25 间距1490 1519mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP1-2016T-W930BK 24V DC ø25 间距1592 1621mm Wall Washer 3000 Ra 90 电器另配
SLP1-2016T-W940BK 24V DC ø25 间距1592 1621mm Wall Washer 4000 Ra 90 电器另配
SLP1-2016T-WA30BK 24V DC ø25 间距1592 1621mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP1-2016T-WA40BK 24V DC ø25 间距1592 1621mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP1-2017T-W930BK 24V DC ø25 间距1694 1723mm Wall Washer 3000 Ra 90 电器另配
SLP1-2017T-W940BK 24V DC ø25 间距1694 1723mm Wall Washer 4000 Ra 90 电器另配
SLP1-2017T-WA30BK 24V DC ø25 间距1694 1723mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP1-2017T-WA40BK 24V DC ø25 间距1694 1723mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP1-2018T-W930BK 24V DC ø25 间距1796 1825mm Wall Washer 3000 Ra 90 电器另配
SLP1-2018T-W940BK 24V DC ø25 间距1796 1825mm Wall Washer 4000 Ra 90 电器另配
SLP1-2018T-WA30BK 24V DC ø25 间距1796 1825mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP1-2018T-WA40BK 24V DC ø25 间距1796 1825mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP1-2019T-W930BK 24V DC ø25 间距1898 1927mm Wall Washer 3000 Ra 90 电器另配
SLP1-2019T-W940BK 24V DC ø25 间距1898 1927mm Wall Washer 4000 Ra 90 电器另配
SLP1-2019T-WA30BK 24V DC ø25 间距1898 1927mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP1-2019T-WA40BK 24V DC ø25 间距1898 1927mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP1-2020T-W930BK 24V DC ø25 间距2000 2029mm Wall Washer 3000 Ra 90 电器另配
SLP1-2020T-W940BK 24V DC ø25 间距2000 2029mm Wall Washer 4000 Ra 90 电器另配
SLP1-2020T-WA30BK 24V DC ø25 间距2000 2029mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP1-2020T-WA40BK 24V DC ø25 间距2000 2029mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP2-1005T-W930BK 24V DC ø25 间距468 467mm Wall Washer 3000 Ra 90 电器另配
SLP2-1005T-W940BK 24V DC ø25 间距468 467mm Wall Washer 4000 Ra 90 电器另配
SLP2-1005T-WA30BK 24V DC ø25 间距468 467mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP2-1005T-WA40BK 24V DC ø25 间距468 467mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP2-1006T-W930BK 24V DC ø25 间距570 569mm Wall Washer 3000 Ra 90 电器另配
SLP2-1006T-W940BK 24V DC ø25 间距570 569mm Wall Washer 4000 Ra 90 电器另配
SLP2-1006T-WA30BK 24V DC ø25 间距570 569mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP2-1006T-WA40BK 24V DC ø25 间距570 569mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP2-1007T-W930BK 24V DC ø25 间距672 671mm Wall Washer 3000 Ra 90 电器另配
SLP2-1007T-W940BK 24V DC ø25 间距672 671mm Wall Washer 4000 Ra 90 电器另配
SLP2-1007T-WA30BK 24V DC ø25 间距672 671mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP2-1007T-WA40BK 24V DC ø25 间距672 671mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP2-1008T-W930BK 24V DC ø25 间距774 773mm Wall Washer 3000 Ra 90 电器另配
SLP2-1008T-W940BK 24V DC ø25 间距774 773mm Wall Washer 4000 Ra 90 电器另配
SLP2-1008T-WA30BK 24V DC ø25 间距774 773mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP2-1008T-WA40BK 24V DC ø25 间距774 773mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP2-1009T-W930BK 24V DC ø25 间距876 875mm Wall Washer 3000 Ra 90 电器另配
SLP2-1009T-W940BK 24V DC ø25 间距876 875mm Wall Washer 4000 Ra 90 电器另配
SLP2-1009T-WA30BK 24V DC ø25 间距876 875mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP2-1009T-WA40BK 24V DC ø25 间距876 875mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP2-1010T-W930BK 24V DC ø25 间距978 977mm Wall Washer 3000 Ra 90 电器另配
SLP2-1010T-W940BK 24V DC ø25 间距978 977mm Wall Washer 4000 Ra 90 电器另配
SLP2-1010T-WA30BK 24V DC ø25 间距978 977mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP2-1010T-WA40BK 24V DC ø25 间距978 977mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP2-1011T-W930BK 24V DC ø25 间距1080 1079mm Wall Washer 3000 Ra 90 电器另配
SLP2-1011T-W940BK 24V DC ø25 间距1080 1079mm Wall Washer 4000 Ra 90 电器另配
SLP2-1011T-WA30BK 24V DC ø25 间距1080 1079mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP2-1011T-WA40BK 24V DC ø25 间距1080 1079mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP2-1012T-W930BK 24V DC ø25 间距1182 1181mm Wall Washer 3000 Ra 90 电器另配
SLP2-1012T-W940BK 24V DC ø25 间距1182 1181mm Wall Washer 4000 Ra 90 电器另配
SLP2-1012T-WA30BK 24V DC ø25 间距1182 1181mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP2-1012T-WA40BK 24V DC ø25 间距1182 1181mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP2-1013T-W930BK 24V DC ø25 间距1284 1283mm Wall Washer 3000 Ra 90 电器另配
SLP2-1013T-W940BK 24V DC ø25 间距1284 1283mm Wall Washer 4000 Ra 90 电器另配
SLP2-1013T-WA30BK 24V DC ø25 间距1284 1283mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP2-1013T-WA40BK 24V DC ø25 间距1284 1283mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP2-1014T-W930BK 24V DC ø25 间距1388 1387mm Wall Washer 3000 Ra 90 电器另配
SLP2-1014T-W940BK 24V DC ø25 间距1388 1387mm Wall Washer 4000 Ra 90 电器另配
SLP2-1014T-WA30BK 24V DC ø25 间距1388 1387mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP2-1014T-WA40BK 24V DC ø25 间距1388 1387mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP2-1015T-W930BK 24V DC ø25 间距1490 1489mm Wall Washer 3000 Ra 90 电器另配
SLP2-1015T-W940BK 24V DC ø25 间距1490 1489mm Wall Washer 4000 Ra 90 电器另配
SLP2-1015T-WA30BK 24V DC ø25 间距1490 1489mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP2-1015T-WA40BK 24V DC ø25 间距1490 1489mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP2-1016T-W930BK 24V DC ø25 间距1592 1591mm Wall Washer 3000 Ra 90 电器另配
SLP2-1016T-W940BK 24V DC ø25 间距1592 1591mm Wall Washer 4000 Ra 90 电器另配
SLP2-1016T-WA30BK 24V DC ø25 间距1592 1591mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP2-1016T-WA40BK 24V DC ø25 间距1592 1591mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP2-1017T-W930BK 24V DC ø25 间距1694 1693mm Wall Washer 3000 Ra 90 电器另配
SLP2-1017T-W940BK 24V DC ø25 间距1694 1693mm Wall Washer 4000 Ra 90 电器另配
SLP2-1017T-WA30BK 24V DC ø25 间距1694 1693mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP2-1017T-WA40BK 24V DC ø25 间距1694 1693mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP2-1018T-W930BK 24V DC ø25 间距1796 1795mm Wall Washer 3000 Ra 90 电器另配
SLP2-1018T-W940BK 24V DC ø25 间距1796 1795mm Wall Washer 4000 Ra 90 电器另配
SLP2-1018T-WA30BK 24V DC ø25 间距1796 1795mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP2-1018T-WA40BK 24V DC ø25 间距1796 1795mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP2-1019T-W930BK 24V DC ø25 间距1898 1897mm Wall Washer 3000 Ra 90 电器另配
SLP2-1019T-W940BK 24V DC ø25 间距1898 1897mm Wall Washer 4000 Ra 90 电器另配
SLP2-1019T-WA30BK 24V DC ø25 间距1898 1897mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP2-1019T-WA40BK 24V DC ø25 间距1898 1897mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP2-1020T-W930BK 24V DC ø25 间距2000 1999mm Wall Washer 3000 Ra 90 电器另配
SLP2-1020T-W940BK 24V DC ø25 间距2000 1999mm Wall Washer 4000 Ra 90 电器另配
SLP2-1020T-WA30BK 24V DC ø25 间距2000 1999mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP2-1020T-WA40BK 24V DC ø25 间距2000 1999mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP2-2005T-W930BK 24V DC ø25 间距468 467mm Wall Washer 3000 Ra 90 电器另配
SLP2-2005T-W940BK 24V DC ø25 间距468 467mm Wall Washer 4000 Ra 90 电器另配
SLP2-2005T-WA30BK 24V DC ø25 间距468 467mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP2-2005T-WA40BK 24V DC ø25 间距468 467mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP2-2006T-W930BK 24V DC ø25 间距570 569mm Wall Washer 3000 Ra 90 电器另配
SLP2-2006T-W940BK 24V DC ø25 间距570 569mm Wall Washer 4000 Ra 90 电器另配
SLP2-2006T-WA30BK 24V DC ø25 间距570 569mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP2-2006T-WA40BK 24V DC ø25 间距570 569mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP2-2007T-W930BK 24V DC ø25 间距672 671mm Wall Washer 3000 Ra 90 电器另配
SLP2-2007T-W940BK 24V DC ø25 间距672 671mm Wall Washer 4000 Ra 90 电器另配
SLP2-2007T-WA30BK 24V DC ø25 间距672 671mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP2-2007T-WA40BK 24V DC ø25 间距672 671mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP2-2008T-W930BK 24V DC ø25 间距774 773mm Wall Washer 3000 Ra 90 电器另配
SLP2-2008T-W940BK 24V DC ø25 间距774 773mm Wall Washer 4000 Ra 90 电器另配
SLP2-2008T-WA30BK 24V DC ø25 间距774 773mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP2-2008T-WA40BK 24V DC ø25 间距774 773mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP2-2009T-W930BK 24V DC ø25 间距876 875mm Wall Washer 3000 Ra 90 电器另配
SLP2-2009T-W940BK 24V DC ø25 间距876 875mm Wall Washer 4000 Ra 90 电器另配
SLP2-2009T-WA30BK 24V DC ø25 间距876 875mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP2-2009T-WA40BK 24V DC ø25 间距876 875mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP2-2010T-W930BK 24V DC ø25 间距978 977mm Wall Washer 3000 Ra 90 电器另配
SLP2-2010T-W940BK 24V DC ø25 间距978 977mm Wall Washer 4000 Ra 90 电器另配
SLP2-2010T-WA30BK 24V DC ø25 间距978 977mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP2-2010T-WA40BK 24V DC ø25 间距978 977mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP2-2011T-W930BK 24V DC ø25 间距1080 1079mm Wall Washer 3000 Ra 90 电器另配
SLP2-2011T-W940BK 24V DC ø25 间距1080 1079mm Wall Washer 4000 Ra 90 电器另配
SLP2-2011T-WA30BK 24V DC ø25 间距1080 1079mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP2-2011T-WA40BK 24V DC ø25 间距1080 1079mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP2-2012T-W930BK 24V DC ø25 间距1182 1181mm Wall Washer 3000 Ra 90 电器另配
SLP2-2012T-W940BK 24V DC ø25 间距1182 1181mm Wall Washer 4000 Ra 90 电器另配
SLP2-2012T-WA30BK 24V DC ø25 间距1182 1181mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP2-2012T-WA40BK 24V DC ø25 间距1182 1181mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP2-2013T-W930BK 24V DC ø25 间距1284 1283mm Wall Washer 3000 Ra 90 电器另配
SLP2-2013T-W940BK 24V DC ø25 间距1284 1283mm Wall Washer 4000 Ra 90 电器另配
SLP2-2013T-WA30BK 24V DC ø25 间距1284 1283mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP2-2013T-WA40BK 24V DC ø25 间距1284 1283mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP2-2014T-W930BK 24V DC ø25 间距1388 1387mm Wall Washer 3000 Ra 90 电器另配
SLP2-2014T-W940BK 24V DC ø25 间距1388 1387mm Wall Washer 4000 Ra 90 电器另配
SLP2-2014T-WA30BK 24V DC ø25 间距1388 1387mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP2-2014T-WA40BK 24V DC ø25 间距1388 1387mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP2-2015T-W930BK 24V DC ø25 间距1490 1489mm Wall Washer 3000 Ra 90 电器另配
SLP2-2015T-W940BK 24V DC ø25 间距1490 1489mm Wall Washer 4000 Ra 90 电器另配
SLP2-2015T-WA30BK 24V DC ø25 间距1490 1489mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP2-2015T-WA40BK 24V DC ø25 间距1490 1489mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP2-2016T-W930BK 24V DC ø25 间距1592 1591mm Wall Washer 3000 Ra 90 电器另配
SLP2-2016T-W940BK 24V DC ø25 间距1592 1591mm Wall Washer 4000 Ra 90 电器另配
SLP2-2016T-WA30BK 24V DC ø25 间距1592 1591mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP2-2016T-WA40BK 24V DC ø25 间距1592 1591mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP2-2017T-W930BK 24V DC ø25 间距1694 1693mm Wall Washer 3000 Ra 90 电器另配
SLP2-2017T-W940BK 24V DC ø25 间距1694 1693mm Wall Washer 4000 Ra 90 电器另配
SLP2-2017T-WA30BK 24V DC ø25 间距1694 1693mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP2-2017T-WA40BK 24V DC ø25 间距1694 1693mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP2-2018T-W930BK 24V DC ø25 间距1796 1795mm Wall Washer 3000 Ra 90 电器另配
SLP2-2018T-W940BK 24V DC ø25 间距1796 1795mm Wall Washer 4000 Ra 90 电器另配
SLP2-2018T-WA30BK 24V DC ø25 间距1796 1795mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP2-2018T-WA40BK 24V DC ø25 间距1796 1795mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP2-2019T-W930BK 24V DC ø25 间距1898 1897mm Wall Washer 3000 Ra 90 电器另配
SLP2-2019T-W940BK 24V DC ø25 间距1898 1897mm Wall Washer 4000 Ra 90 电器另配
SLP2-2019T-WA30BK 24V DC ø25 间距1898 1897mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP2-2019T-WA40BK 24V DC ø25 间距1898 1897mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
SLP2-2020T-W930BK 24V DC ø25 间距2000 1999mm Wall Washer 3000 Ra 90 电器另配
SLP2-2020T-W940BK 24V DC ø25 间距2000 1999mm Wall Washer 4000 Ra 90 电器另配
SLP2-2020T-WA30BK 24V DC ø25 间距2000 1999mm Wall Washer 3000 Ra 97(Ra≥95) 电器另配
SLP2-2020T-WA40BK 24V DC ø25 间距2000 1999mm Wall Washer 4000 Ra 97(Ra≥95) 电器另配
×

下载

产品线图 配光曲线
