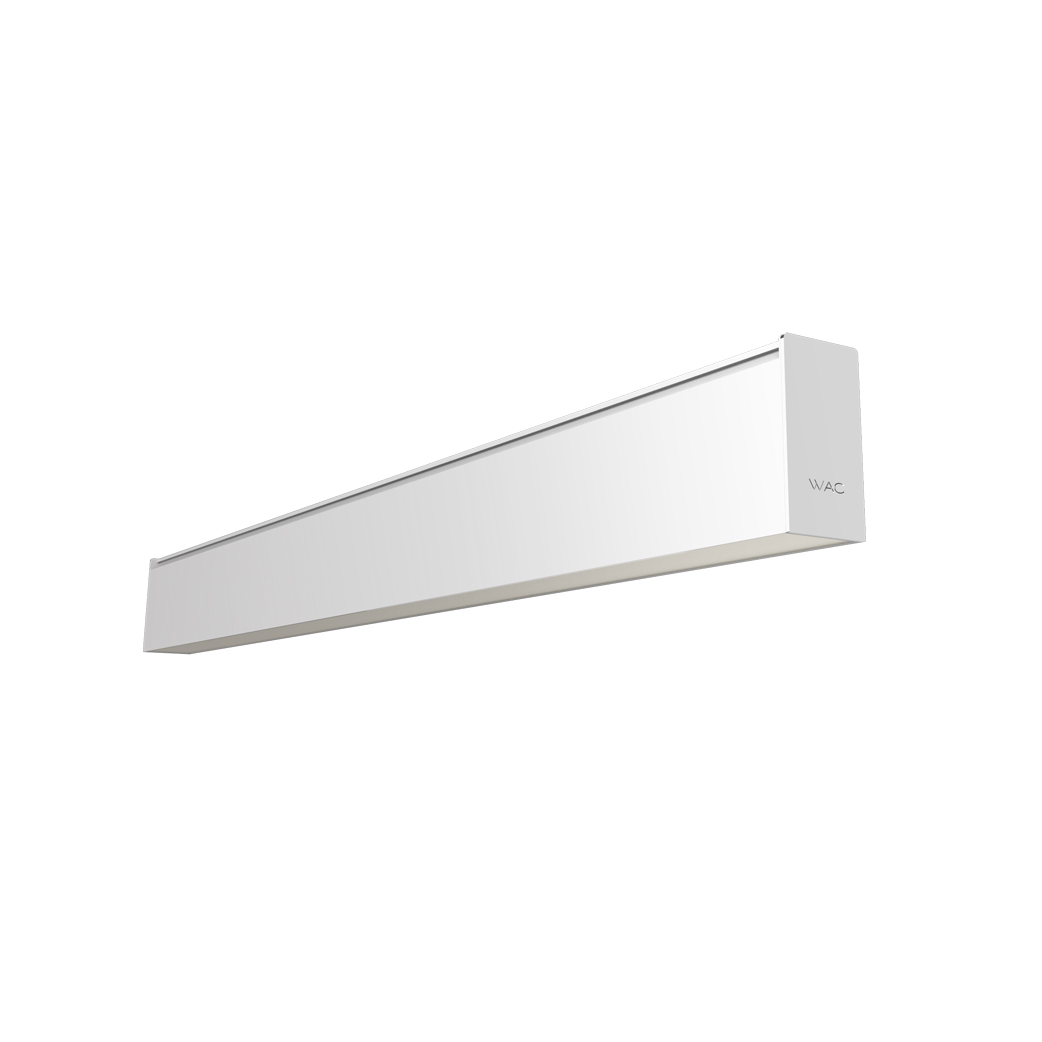

一体化铝型材灯体，造型简约大方，选用高性能 LED 光源，配合高效散热结构，能保障长时间稳定照明，卓越的光学性能，给用户带来完美的光环境体验。支持首尾无缝拼接，长度可按需定制，并具备吊装、表面明装、嵌入式安装等多种安装方式。
凭借先进的光学技术，搭配磨砂透镜或棱镜透镜，可实现高功率输出。同时，该系列灯具配备格栅款，能提供从聚光到泛光的多种配光选择。

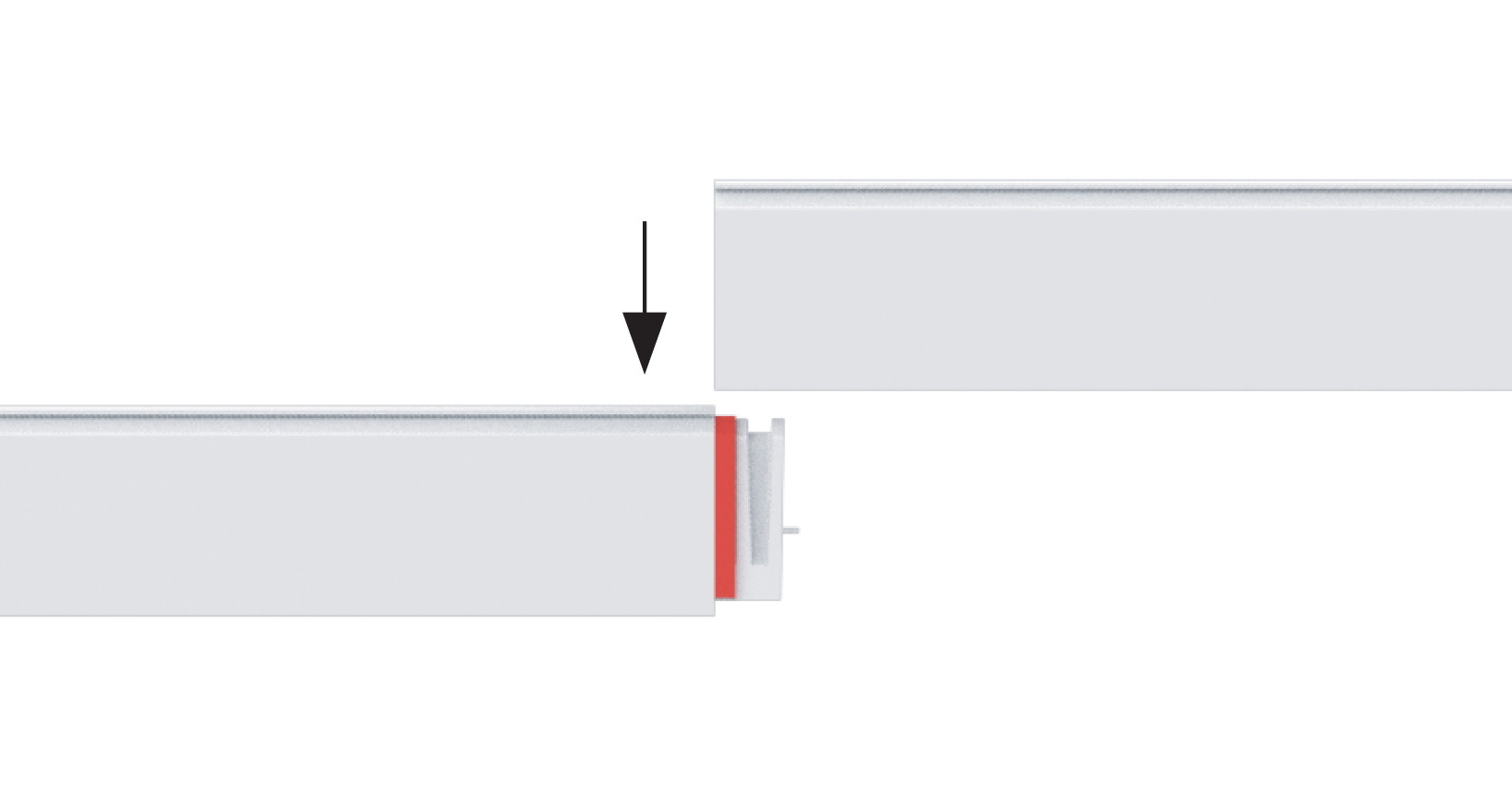

拥有独特的结构设计，支持现场连续拼接，呈现连续均匀的照明效果。

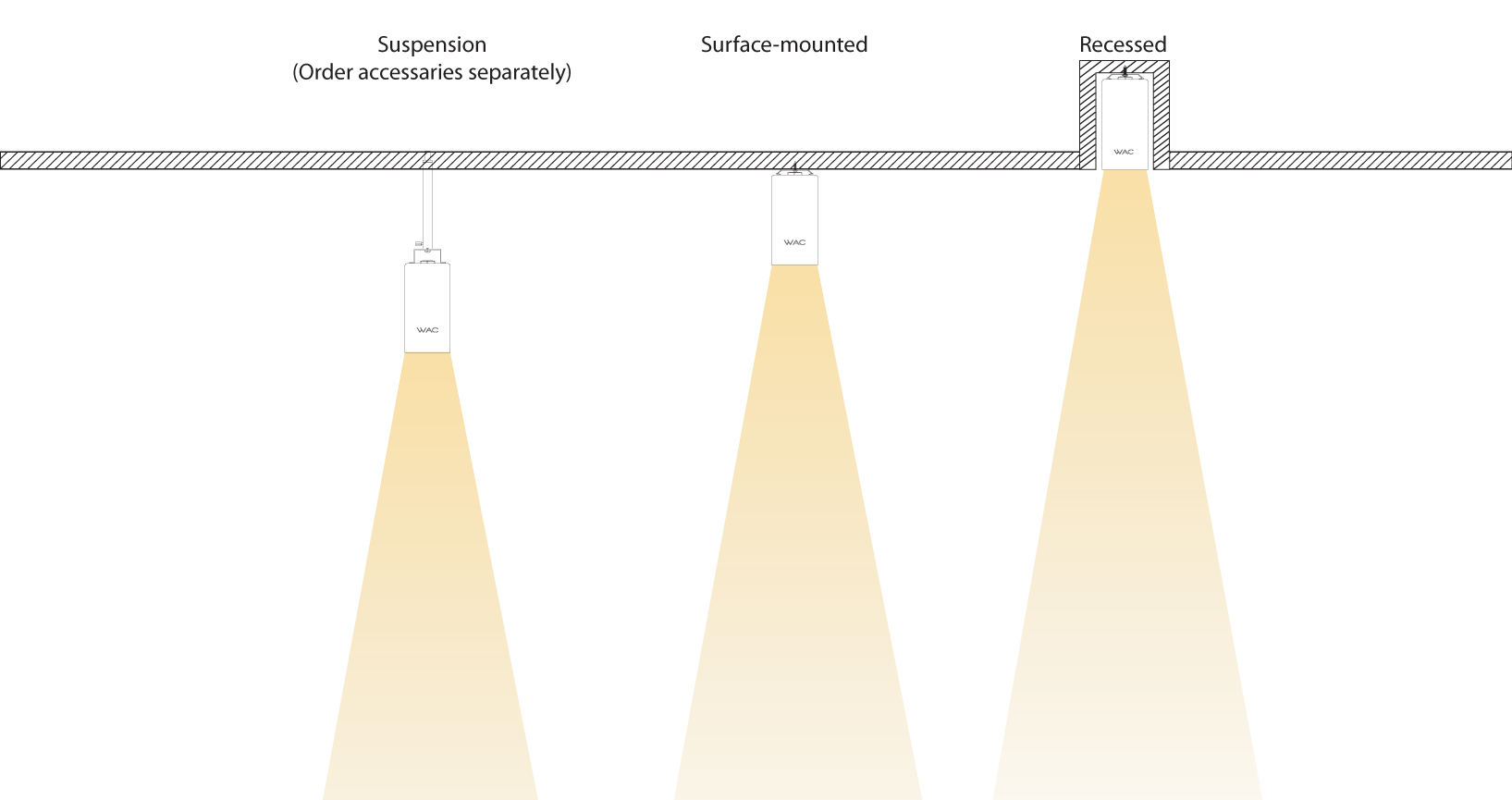

提供悬挂式、明装式和嵌入式三种不同的安装方式。
Model | Length（mm） | Comment | Power （W） | LEDs (quantity) | Max Lumens(lm) | Control Systems | Beam | CCT | Finish | |
ES510 | 1000 | C Ceiling Mounted U U-Shape Bracket | 035 35(Max) | 288 | 3141 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | P (雾面罩) Y (棱晶罩) | 27 2700K 30 3000K 40 4000K | WT White | |
Model | Length（mm） | Comment | Power （W） | LEDs (quantity) | Max Lumens(lm) | Control Systems | Beam | CCT | Finish | |
ES520 | 2000 | C Ceiling Mounted U U-Shape Bracket | 070 70(Max) | 576 | 5652 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | P (雾面罩) Y (棱晶罩) | 27 2700K 30 3000K 40 4000K | WT White | |
Model | Length（mm） | Comment | Power （W） | LEDs (quantity) | Max Lumens(lm) | Control Systems | Beam | CCT | Finish | |
ES530 | 3000 | C Ceiling Mounted U U-Shape Bracket | 105 105(Max) | 864 | 8478 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | P (雾面罩) Y (棱晶罩) | 27 2700K 30 3000K 40 4000K | WT White | |
示例：ES510C-035EL-P27BK
| 型号 | 表面颜色 | 输入电压/电流 | 调光控制 | 灯具长度/尺寸 | LED颗粒数（pcs) | 光源功率（W） | 光束角 | 色温（K） |
|---|---|---|---|---|---|---|---|---|
| ES510C-035DL-P27WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 1000mm | 288 | 35 | 雾面罩 | 2700K |
| ES510C-035DL-P30WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 1000mm | 288 | 35 | 雾面罩 | 3000K |
| ES510C-035DL-P40WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 1000mm | 288 | 35 | 雾面罩 | 4000K |
| ES510C-035DL-Y27WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 1000mm | 288 | 35 | 棱晶罩 | 2700K |
| ES510C-035DL-Y30WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 1000mm | 288 | 35 | 棱晶罩 | 3000K |
| ES510C-035DL-Y40WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 1000mm | 288 | 35 | 棱晶罩 | 4000K |
| ES510C-035EL-P27WT | 白色 | 220V AC/50Hz | ON-OFF | 1000mm | 288 | 35 | 雾面罩 | 2700K |
| ES510C-035EL-P30WT | 白色 | 220V AC/50Hz | ON-OFF | 1000mm | 288 | 35 | 雾面罩 | 3000K |
| ES510C-035EL-P40WT | 白色 | 220V AC/50Hz | ON-OFF | 1000mm | 288 | 35 | 雾面罩 | 4000K |
| ES510C-035EL-Y27WT | 白色 | 220V AC/50Hz | ON-OFF | 1000mm | 288 | 35 | 棱晶罩 | 2700K |
| ES510C-035EL-Y30WT | 白色 | 220V AC/50Hz | ON-OFF | 1000mm | 288 | 35 | 棱晶罩 | 3000K |
| ES510C-035EL-Y40WT | 白色 | 220V AC/50Hz | ON-OFF | 1000mm | 288 | 35 | 棱晶罩 | 4000K |
| ES510U-035DL-P27WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 1000mm | 288 | 35 | 雾面罩 | 2700K |
| ES510U-035DL-P30WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 1000mm | 288 | 35 | 雾面罩 | 3000K |
| ES510U-035DL-P40WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 1000mm | 288 | 35 | 雾面罩 | 4000K |
| ES510U-035DL-Y27WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 1000mm | 288 | 35 | 棱晶罩 | 2700K |
| ES510U-035DL-Y30WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 1000mm | 288 | 35 | 棱晶罩 | 3000K |
| ES510U-035DL-Y40WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 1000mm | 288 | 35 | 棱晶罩 | 4000K |
| ES510U-035EL-P27WT | 白色 | 220V AC/50Hz | ON-OFF | 1000mm | 288 | 35 | 雾面罩 | 2700K |
| ES510U-035EL-P30WT | 白色 | 220V AC/50Hz | ON-OFF | 1000mm | 288 | 35 | 雾面罩 | 3000K |
| ES510U-035EL-P40WT | 白色 | 220V AC/50Hz | ON-OFF | 1000mm | 288 | 35 | 雾面罩 | 4000K |
| ES510U-035EL-Y27WT | 白色 | 220V AC/50Hz | ON-OFF | 1000mm | 288 | 35 | 棱晶罩 | 2700K |
| ES510U-035EL-Y30WT | 白色 | 220V AC/50Hz | ON-OFF | 1000mm | 288 | 35 | 棱晶罩 | 3000K |
| ES510U-035EL-Y40WT | 白色 | 220V AC/50Hz | ON-OFF | 1000mm | 288 | 35 | 棱晶罩 | 4000K |
| ES520C-070DL-P27WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 2000mm | 576 | 70 | 雾面罩 | 2700K |
| ES520C-070DL-P30WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 2000mm | 576 | 70 | 雾面罩 | 3000K |
| ES520C-070DL-P40WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 2000mm | 576 | 70 | 雾面罩 | 4000K |
| ES520C-070DL-Y27WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 2000mm | 576 | 70 | 棱晶罩 | 2700K |
| ES520C-070DL-Y30WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 2000mm | 576 | 70 | 棱晶罩 | 3000K |
| ES520C-070DL-Y40WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 2000mm | 576 | 70 | 棱晶罩 | 4000K |
| ES520C-070EL-P27WT | 白色 | 220V AC/50Hz | ON-OFF | 2000mm | 576 | 70 | 雾面罩 | 2700K |
| ES520C-070EL-P30WT | 白色 | 220V AC/50Hz | ON-OFF | 2000mm | 576 | 70 | 雾面罩 | 3000K |
| ES520C-070EL-P40WT | 白色 | 220V AC/50Hz | ON-OFF | 2000mm | 576 | 70 | 雾面罩 | 4000K |
| ES520C-070EL-Y27WT | 白色 | 220V AC/50Hz | ON-OFF | 2000mm | 576 | 70 | 棱晶罩 | 2700K |
| ES520C-070EL-Y30WT | 白色 | 220V AC/50Hz | ON-OFF | 2000mm | 576 | 70 | 棱晶罩 | 3000K |
| ES520C-070EL-Y40WT | 白色 | 220V AC/50Hz | ON-OFF | 2000mm | 576 | 70 | 棱晶罩 | 4000K |
| ES520U-070DL-P27WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 2000mm | 576 | 70 | 雾面罩 | 2700K |
| ES520U-070DL-P30WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 2000mm | 576 | 70 | 雾面罩 | 3000K |
| ES520U-070DL-P40WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 2000mm | 576 | 70 | 雾面罩 | 4000K |
| ES520U-070DL-Y27WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 2000mm | 576 | 70 | 棱晶罩 | 2700K |
| ES520U-070DL-Y30WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 2000mm | 576 | 70 | 棱晶罩 | 3000K |
| ES520U-070DL-Y40WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 2000mm | 576 | 70 | 棱晶罩 | 4000K |
| ES520U-070EL-P27WT | 白色 | 220V AC/50Hz | ON-OFF | 2000mm | 576 | 70 | 雾面罩 | 2700K |
| ES520U-070EL-P30WT | 白色 | 220V AC/50Hz | ON-OFF | 2000mm | 576 | 70 | 雾面罩 | 3000K |
| ES520U-070EL-P40WT | 白色 | 220V AC/50Hz | ON-OFF | 2000mm | 576 | 70 | 雾面罩 | 4000K |
| ES520U-070EL-Y27WT | 白色 | 220V AC/50Hz | ON-OFF | 2000mm | 576 | 70 | 棱晶罩 | 2700K |
| ES520U-070EL-Y30WT | 白色 | 220V AC/50Hz | ON-OFF | 2000mm | 576 | 70 | 棱晶罩 | 3000K |
| ES520U-070EL-Y40WT | 白色 | 220V AC/50Hz | ON-OFF | 2000mm | 576 | 70 | 棱晶罩 | 4000K |
| ES530C-105DL-P27WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 3000mm | 864 | 105 | 雾面罩 | 2700K |
| ES530C-105DL-P30WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 3000mm | 864 | 105 | 雾面罩 | 3000K |
| ES530C-105DL-P40WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 3000mm | 864 | 105 | 雾面罩 | 4000K |
| ES530C-105DL-Y27WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 3000mm | 864 | 105 | 棱晶罩 | 2700K |
| ES530C-105DL-Y30WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 3000mm | 864 | 105 | 棱晶罩 | 3000K |
| ES530C-105DL-Y40WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 3000mm | 864 | 105 | 棱晶罩 | 4000K |
| ES530C-105EL-P27WT | 白色 | 220V AC/50Hz | ON-OFF | 3000mm | 864 | 105 | 雾面罩 | 2700K |
| ES530C-105EL-P30WT | 白色 | 220V AC/50Hz | ON-OFF | 3000mm | 864 | 105 | 雾面罩 | 3000K |
| ES530C-105EL-P40WT | 白色 | 220V AC/50Hz | ON-OFF | 3000mm | 864 | 105 | 雾面罩 | 4000K |
| ES530C-105EL-Y27WT | 白色 | 220V AC/50Hz | ON-OFF | 3000mm | 864 | 105 | 棱晶罩 | 2700K |
| ES530C-105EL-Y30WT | 白色 | 220V AC/50Hz | ON-OFF | 3000mm | 864 | 105 | 棱晶罩 | 3000K |
| ES530C-105EL-Y40WT | 白色 | 220V AC/50Hz | ON-OFF | 3000mm | 864 | 105 | 棱晶罩 | 4000K |
| ES530U-105DL-P27WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 3000mm | 864 | 105 | 雾面罩 | 2700K |
| ES530U-105DL-P30WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 3000mm | 864 | 105 | 雾面罩 | 3000K |
| ES530U-105DL-P40WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 3000mm | 864 | 105 | 雾面罩 | 4000K |
| ES530U-105DL-Y27WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 3000mm | 864 | 105 | 棱晶罩 | 2700K |
| ES530U-105DL-Y30WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 3000mm | 864 | 105 | 棱晶罩 | 3000K |
| ES530U-105DL-Y40WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 3000mm | 864 | 105 | 棱晶罩 | 4000K |
| ES530U-105EL-P27WT | 白色 | 220V AC/50Hz | ON-OFF | 3000mm | 864 | 105 | 雾面罩 | 2700K |
| ES530U-105EL-P30WT | 白色 | 220V AC/50Hz | ON-OFF | 3000mm | 864 | 105 | 雾面罩 | 3000K |
| ES530U-105EL-P40WT | 白色 | 220V AC/50Hz | ON-OFF | 3000mm | 864 | 105 | 雾面罩 | 4000K |
| ES530U-105EL-Y27WT | 白色 | 220V AC/50Hz | ON-OFF | 3000mm | 864 | 105 | 棱晶罩 | 2700K |
| ES530U-105EL-Y30WT | 白色 | 220V AC/50Hz | ON-OFF | 3000mm | 864 | 105 | 棱晶罩 | 3000K |
| ES530U-105EL-Y40WT | 白色 | 220V AC/50Hz | ON-OFF | 3000mm | 864 | 105 | 棱晶罩 | 4000K |
