直径仅8mm，铝型材制成灯身，提供多种长度尺寸选择，并可根据桌柜大小调节灯具高度尺寸和照射方向，支持现场徒手拼接，具有较高的使用灵活性。可选择单色温或可调色温，外置24VDC恒压驱动，并支持调光。

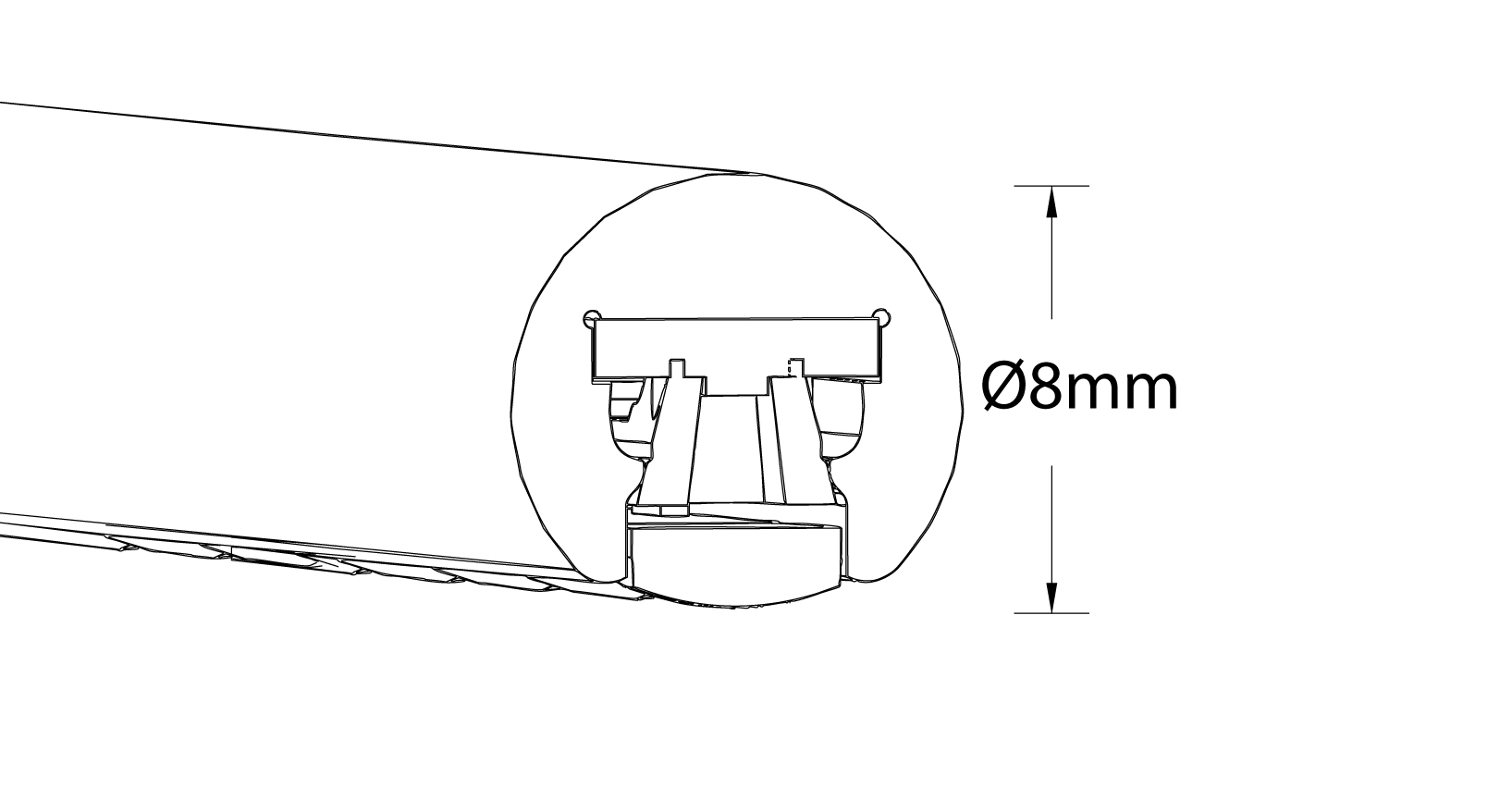

外形纤薄度提升超 50%，直径仅 8 毫米，树立了行业内纤薄线性照明方案的新标杆。

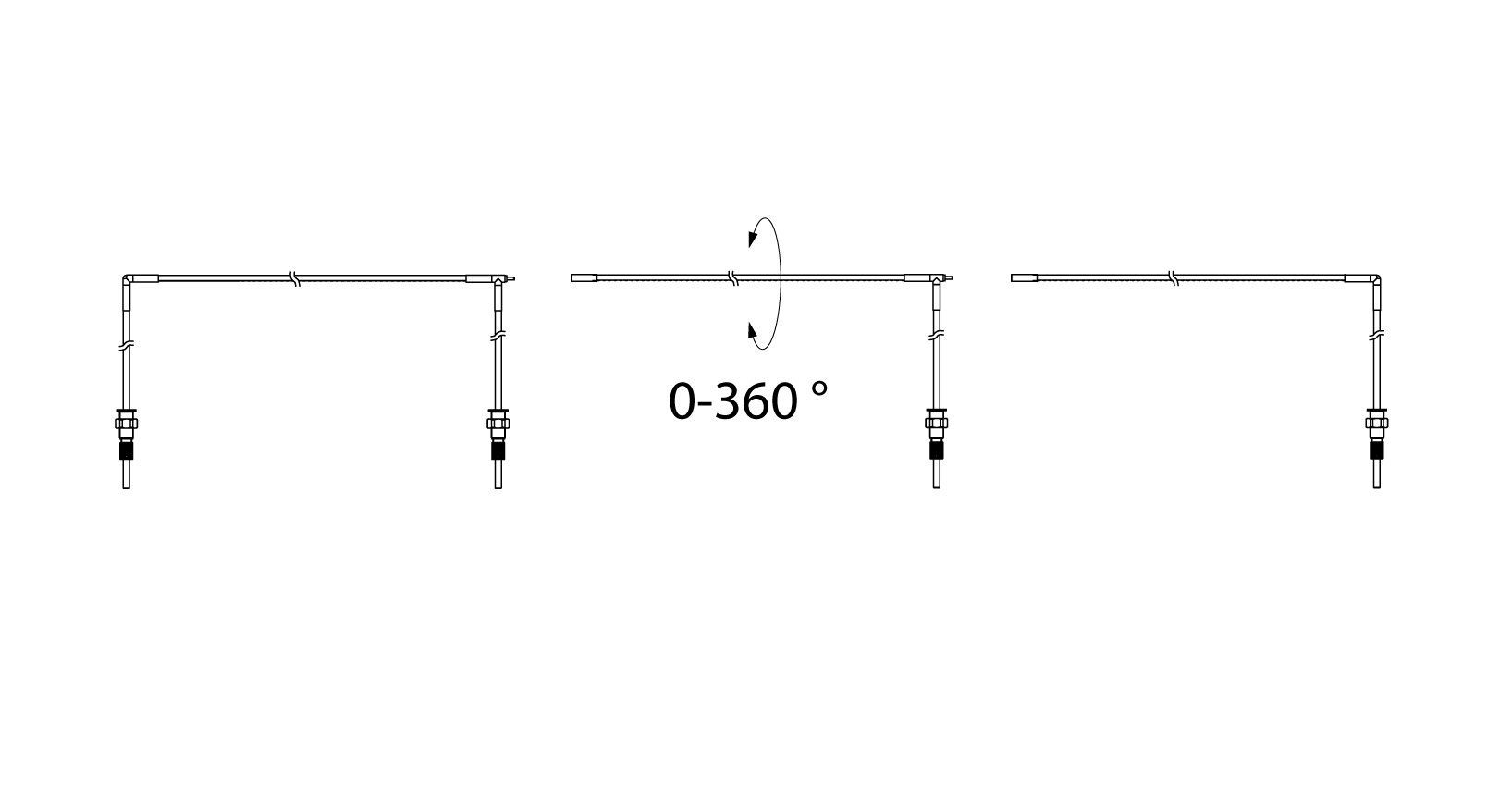

LEDme Air系列采用航空级铝合金框架，配备WAC专利拼接技术，可无缝延伸至1.6米，以匹配桌面柜体的长度。该灯具还可进行0-360°旋转，便于精确调整照明位置。
支持 2700K-6000K 色温调节，适用于不同的照明氛围和场景。

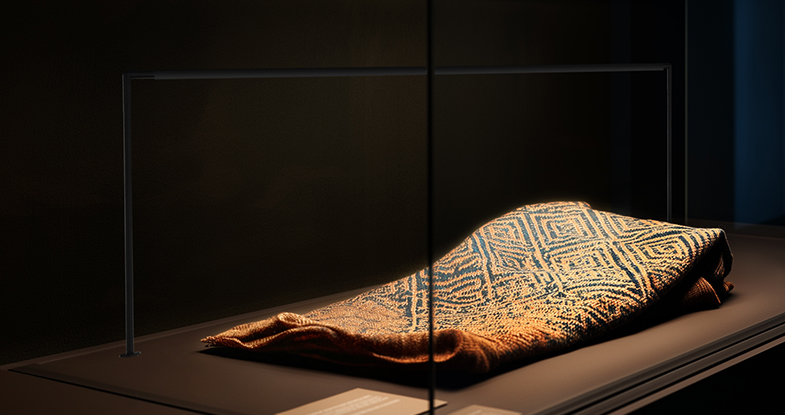

LEDme Air 展柜灯
Model | LED | Length（L1） | Drive | Beam | CRI | CCT | Finish |
SLP3 Universal luminaire SLP4 Connected luminaire | 10 10W/m 05 5W/m | 16 1.59m 14 1.39m 12 1.19m 10 0.99m 05 0.49m | T Constant Voltage | W Wash | A Ra 97(Ra≥95) | 30 3000K 35 3500K 40 4000K CC 2700K-6000K | BK Black |

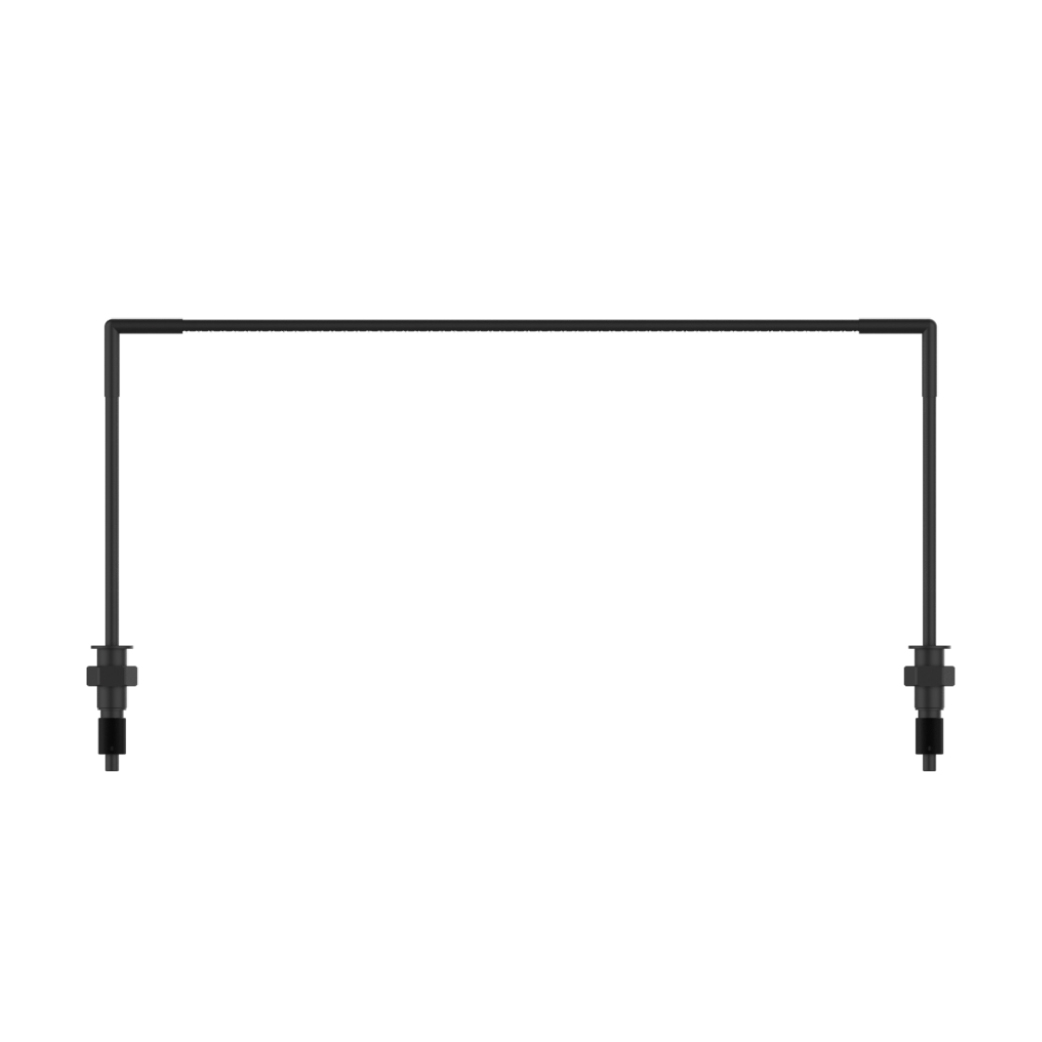

示例：SLP3-1010T-WA30BK, 注：SLP3带双端支杆(总长L1)，开孔Φ20mm，孔间距为L1减9mm；SLP4为单端支杆的拼接型号(总长L2)，需与SLP3搭配使用，均不含电器；产品长度L1/L2可按需定制，最小单位为0.1m左右，总长度不超过1.59m，具体请咨询WAC。
| 型号 | 输入电压/电流 | 开孔尺寸（mm） | 灯具长度/尺寸 | 光束角 | 色温（K） | 显色指数 | 调光控制 |
|---|---|---|---|---|---|---|---|
| SLP3-0505T-WA30BK | 24V DC | ø19 间距473 | 482mm | Wall Washer | 3000 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-0505T-WA35BK | 24V DC | ø19 间距473 | 482mm | Wall Washer | 3500 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-0505T-WA40BK | 24V DC | ø19 间距473 | 482mm | Wall Washer | 4000 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-0505T-WACCBK | 24V DC | ø20 间距473 | 473mm | Wall Washer | 2700-6000 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-0510T-WA30BK | 24V DC | ø19 间距973 | 982mm | Wall Washer | 3000 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-0510T-WA35BK | 24V DC | ø19 间距973 | 982mm | Wall Washer | 3500 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-0510T-WA40BK | 24V DC | ø19 间距973 | 982mm | Wall Washer | 4000 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-0510T-WACCBK | 24V DC | ø20 间距973 | 973mm | Wall Washer | 2700-6000 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-0512T-WA30BK | 24V DC | ø19 间距1173 | 1182mm | Wall Washer | 3000 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-0512T-WA35BK | 24V DC | ø19 间距1173 | 1182mm | Wall Washer | 3500 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-0512T-WA40BK | 24V DC | ø19 间距1173 | 1182mm | Wall Washer | 4000 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-0512T-WACCBK | 24V DC | ø20 间距1173 | 1173mm | Wall Washer | 2700-6000 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-0514T-WA30BK | 24V DC | ø19 间距1373 | 1382mm | Wall Washer | 3000 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-0514T-WA35BK | 24V DC | ø19 间距1373 | 1382mm | Wall Washer | 3500 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-0514T-WA40BK | 24V DC | ø19 间距1373 | 1382mm | Wall Washer | 4000 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-0514T-WACCBK | 24V DC | ø20 间距1373 | 1373mm | Wall Washer | 2700-6000 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-0516T-WA30BK | 24V DC | ø19 间距1573 | 1582mm | Wall Washer | 3000 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-0516T-WA35BK | 24V DC | ø19 间距1573 | 1582mm | Wall Washer | 3500 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-0516T-WA40BK | 24V DC | ø19 间距1573 | 1582mm | Wall Washer | 4000 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-0516T-WACCBK | 24V DC | ø20 间距1573 | 1573mm | Wall Washer | 2700-6000 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-1005T-WA30BK | 24V DC | ø19 间距473 | 482mm | Wall Washer | 3000 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-1005T-WA35BK | 24V DC | ø19 间距473 | 482mm | Wall Washer | 3500 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-1005T-WA40BK | 24V DC | ø19 间距473 | 482mm | Wall Washer | 4000 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-1005T-WACCBK | 24V DC | ø20 间距473 | 473mm | Wall Washer | 2700-6000 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-1010T-WA30BK | 24V DC | ø19 间距973 | 982mm | Wall Washer | 3000 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-1010T-WA35BK | 24V DC | ø19 间距973 | 982mm | Wall Washer | 3500 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-1010T-WA40BK | 24V DC | ø19 间距973 | 982mm | Wall Washer | 4000 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-1010T-WACCBK | 24V DC | ø20 间距973 | 973mm | Wall Washer | 2700-6000 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-1012T-WA30BK | 24V DC | ø19 间距1173 | 1182mm | Wall Washer | 3000 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-1012T-WA35BK | 24V DC | ø19 间距1173 | 1182mm | Wall Washer | 3500 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-1012T-WA40BK | 24V DC | ø19 间距1173 | 1182mm | Wall Washer | 4000 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-1012T-WACCBK | 24V DC | ø20 间距1173 | 1173mm | Wall Washer | 2700-6000 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-1014T-WA30BK | 24V DC | ø19 间距1373 | 1382mm | Wall Washer | 3000 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-1014T-WA35BK | 24V DC | ø19 间距1373 | 1382mm | Wall Washer | 3500 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-1014T-WA40BK | 24V DC | ø19 间距1373 | 1382mm | Wall Washer | 4000 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-1014T-WACCBK | 24V DC | ø20 间距1373 | 1373mm | Wall Washer | 2700-6000 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-1016T-WA30BK | 24V DC | ø19 间距1573 | 1582mm | Wall Washer | 3000 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-1016T-WA35BK | 24V DC | ø19 间距1573 | 1582mm | Wall Washer | 3500 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-1016T-WA40BK | 24V DC | ø19 间距1573 | 1582mm | Wall Washer | 4000 | Ra 97(Ra≥95) | 电器另配 |
| SLP3-1016T-WACCBK | 24V DC | ø20 间距1573 | 1573mm | Wall Washer | 2700-6000 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-0505T-WA30BK | 24V DC | ø19 间距473 | 482mm | Wall Washer | 3000 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-0505T-WA35BK | 24V DC | ø19 间距473 | 482mm | Wall Washer | 3500 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-0505T-WA40BK | 24V DC | ø19 间距473 | 482mm | Wall Washer | 4000 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-0505T-WACCBK | 24V DC | ø20 间距473 | 473mm | Wall Washer | 2700-6000 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-0510T-WA30BK | 24V DC | ø19 间距973 | 982mm | Wall Washer | 3000 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-0510T-WA35BK | 24V DC | ø19 间距973 | 982mm | Wall Washer | 3500 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-0510T-WA40BK | 24V DC | ø19 间距973 | 982mm | Wall Washer | 4000 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-0510T-WACCBK | 24V DC | ø20 间距973 | 973mm | Wall Washer | 2700-6000 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-0512T-WA30BK | 24V DC | ø19 间距1173 | 1182mm | Wall Washer | 3000 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-0512T-WA35BK | 24V DC | ø19 间距1173 | 1182mm | Wall Washer | 3500 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-0512T-WA40BK | 24V DC | ø19 间距1173 | 1182mm | Wall Washer | 4000 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-0512T-WACCBK | 24V DC | ø20 间距1173 | 1173mm | Wall Washer | 2700-6000 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-0514T-WA30BK | 24V DC | ø19 间距1373 | 1382mm | Wall Washer | 3000 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-0514T-WA35BK | 24V DC | ø19 间距1373 | 1382mm | Wall Washer | 3500 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-0514T-WA40BK | 24V DC | ø19 间距1373 | 1382mm | Wall Washer | 4000 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-0514T-WACCBK | 24V DC | ø20 间距1373 | 1373mm | Wall Washer | 2700-6000 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-0516T-WA30BK | 24V DC | ø19 间距1573 | 1582mm | Wall Washer | 3000 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-0516T-WA35BK | 24V DC | ø19 间距1573 | 1582mm | Wall Washer | 3500 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-0516T-WA40BK | 24V DC | ø19 间距1573 | 1582mm | Wall Washer | 4000 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-0516T-WACCBK | 24V DC | ø20 间距1573 | 1573mm | Wall Washer | 2700-6000 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-1005T-WA30BK | 24V DC | ø19 间距473 | 482mm | Wall Washer | 3000 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-1005T-WA35BK | 24V DC | ø19 间距473 | 482mm | Wall Washer | 3500 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-1005T-WA40BK | 24V DC | ø19 间距473 | 482mm | Wall Washer | 4000 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-1005T-WACCBK | 24V DC | ø20 间距473 | 473mm | Wall Washer | 2700-6000 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-1010T-WA30BK | 24V DC | ø19 间距973 | 982mm | Wall Washer | 3000 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-1010T-WA35BK | 24V DC | ø19 间距973 | 982mm | Wall Washer | 3500 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-1010T-WA40BK | 24V DC | ø19 间距973 | 982mm | Wall Washer | 4000 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-1010T-WACCBK | 24V DC | ø20 间距973 | 973mm | Wall Washer | 2700-6000 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-1012T-WA30BK | 24V DC | ø19 间距1173 | 1182mm | Wall Washer | 3000 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-1012T-WA35BK | 24V DC | ø19 间距1173 | 1182mm | Wall Washer | 3500 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-1012T-WA40BK | 24V DC | ø19 间距1173 | 1182mm | Wall Washer | 4000 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-1012T-WACCBK | 24V DC | ø20 间距1173 | 1173mm | Wall Washer | 2700-6000 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-1014T-WA30BK | 24V DC | ø19 间距1373 | 1382mm | Wall Washer | 3000 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-1014T-WA35BK | 24V DC | ø19 间距1373 | 1382mm | Wall Washer | 3500 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-1014T-WA40BK | 24V DC | ø19 间距1373 | 1382mm | Wall Washer | 4000 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-1014T-WACCBK | 24V DC | ø20 间距1373 | 1373mm | Wall Washer | 2700-6000 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-1016T-WA30BK | 24V DC | ø19 间距1573 | 1582mm | Wall Washer | 3000 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-1016T-WA35BK | 24V DC | ø19 间距1573 | 1582mm | Wall Washer | 3500 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-1016T-WA40BK | 24V DC | ø19 间距1573 | 1582mm | Wall Washer | 4000 | Ra 97(Ra≥95) | 电器另配 |
| SLP4-1016T-WACCBK | 24V DC | ø20 间距1573 | 1573mm | Wall Washer | 2700-6000 | Ra 97(Ra≥95) | 电器另配 |
