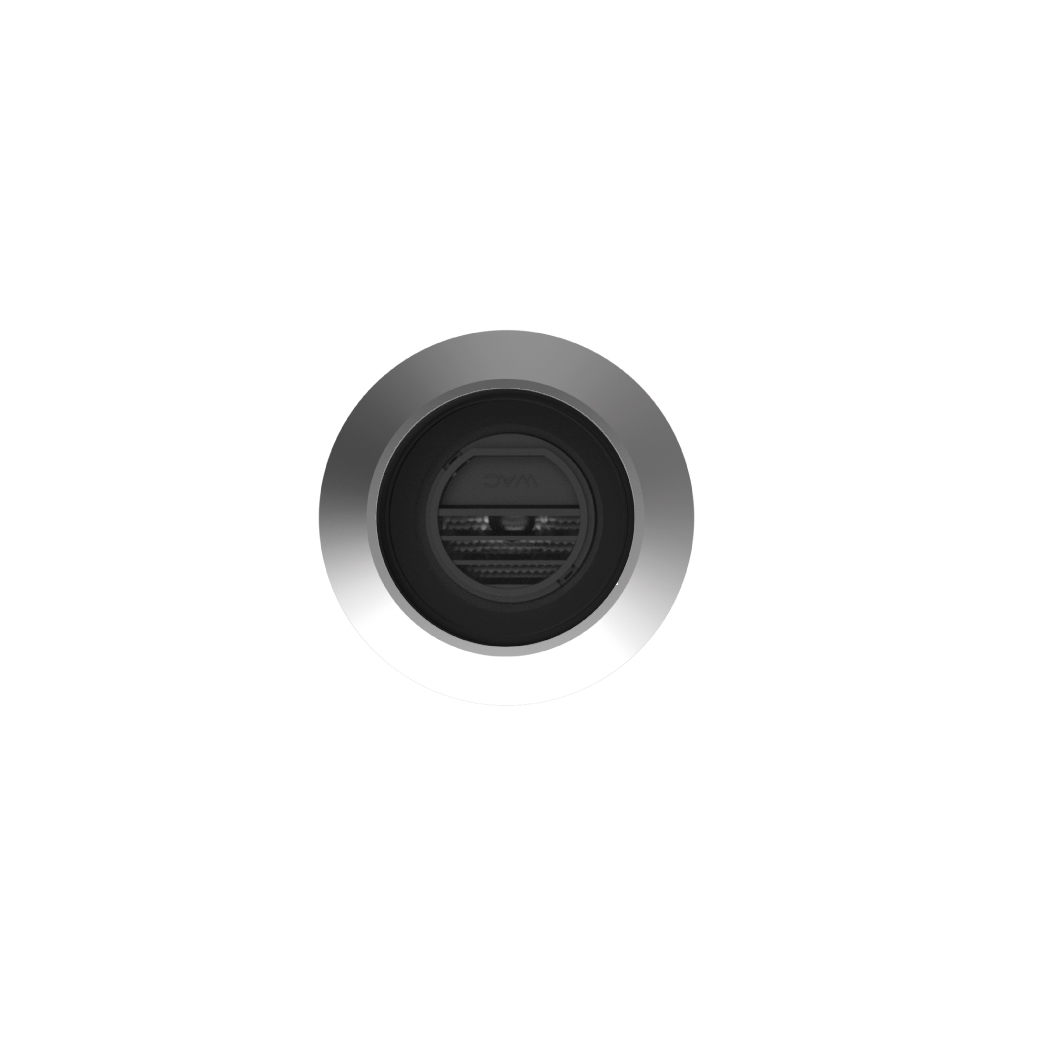

Fuego Compact 整体采用316不锈钢材质精加工，圆形外观，小巧精致，超薄的外观设计，IP67 / IP68防护等级，IK08 防冲击等级，可抗压 500kg，预埋筒安装、卡扣安装。

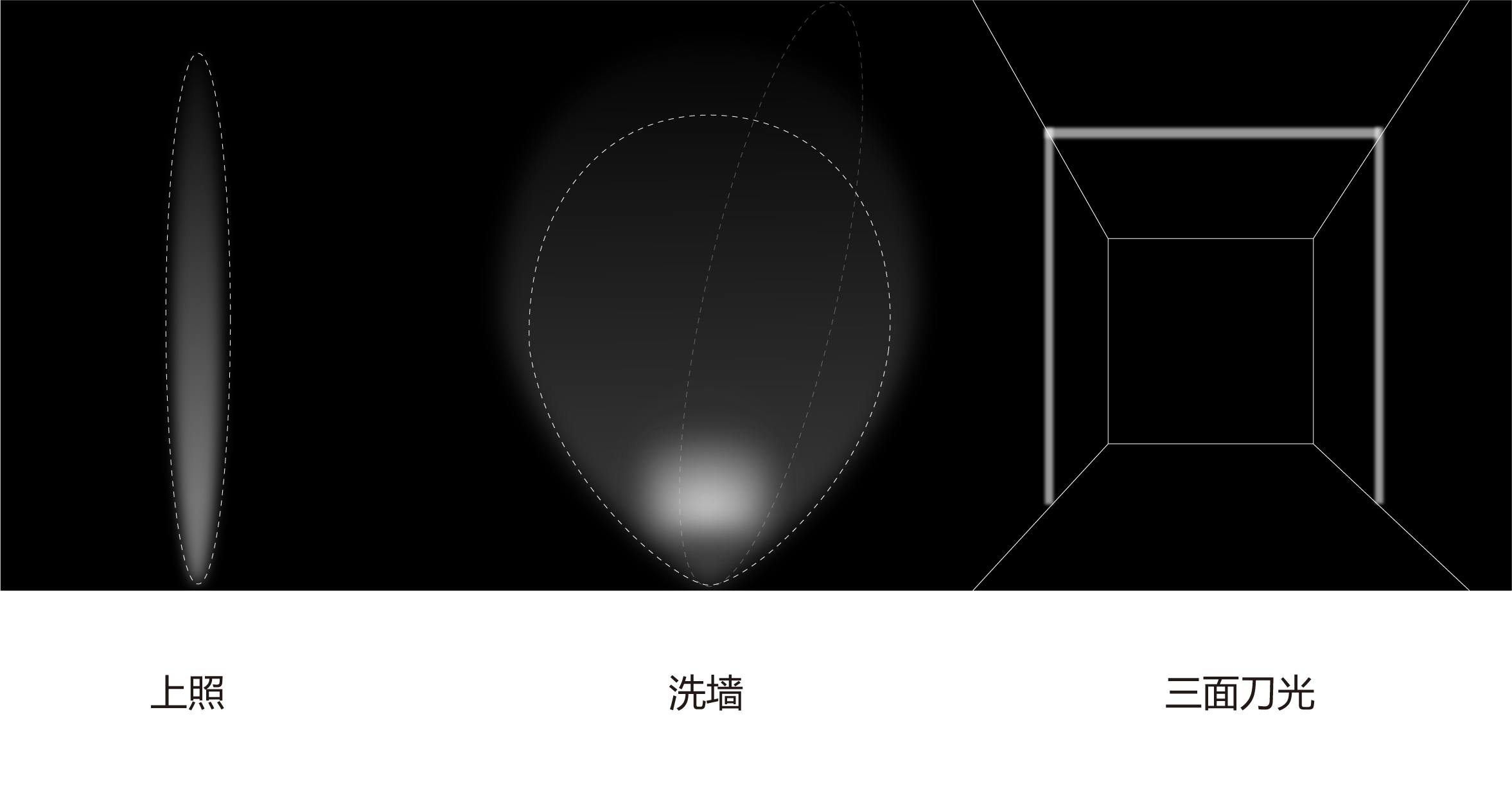

上照/洗墙/三面刀光

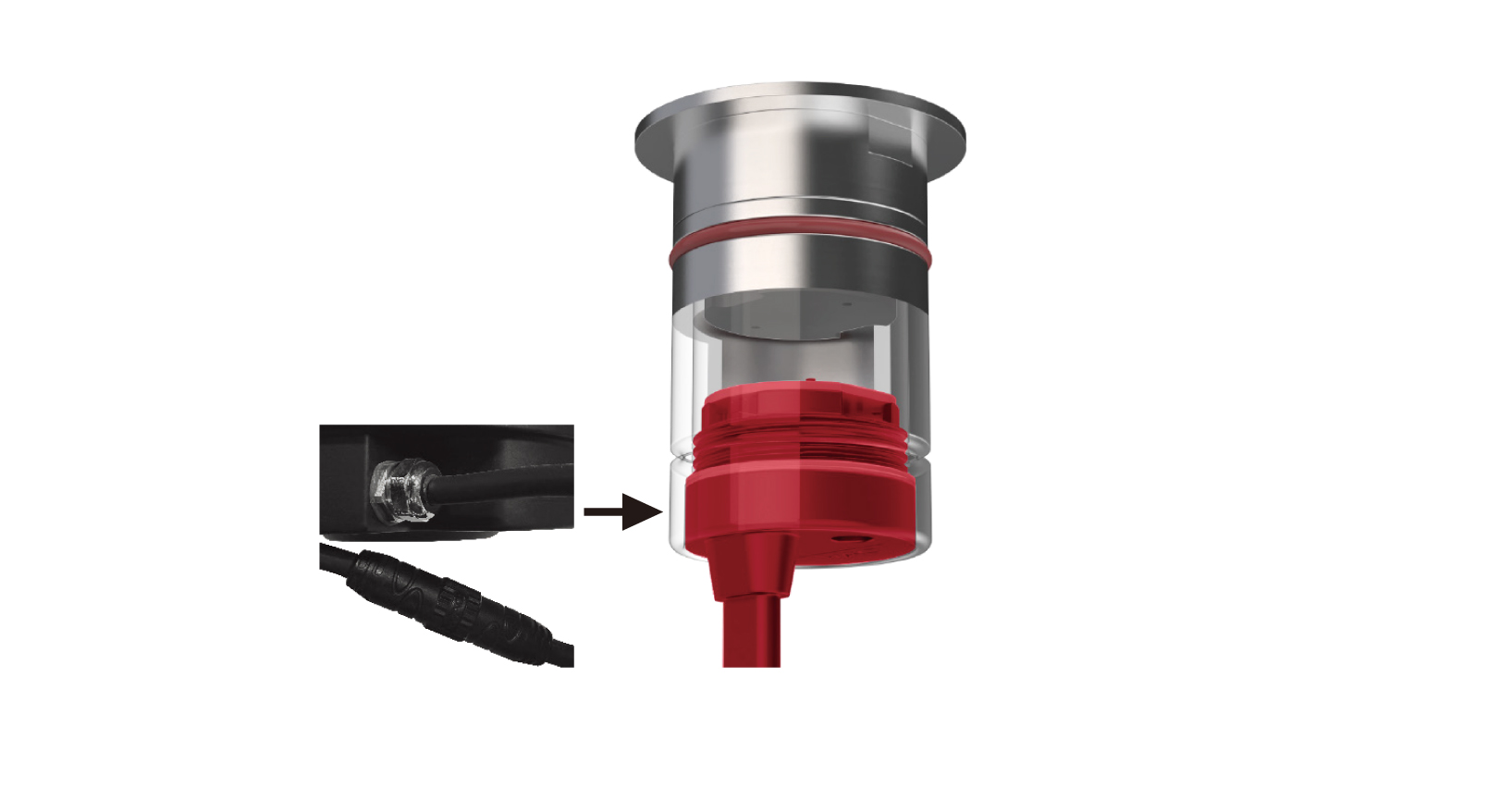

防虹吸注塑装置内置，从源头提升灯具防水性能
Fuego Compact
Model | Power (W) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish | |
EIR2NF-04 | 4(Max) | 119 | ET ON-OFF 12-24V DC Power Supply MT DMX512 Dimming 12-24V DC Power Supply DT 0-10V Dimming 12-24V DC Power Supply
| W Wall Washer L LASER BLADE S 8° 1 10° 2 20° 3 30° | 27 2700K 30 3000K 40 4000K | SS Stainless Steel | |
Model | Power (W) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish | |
EIR2NF-04 | 4(Max) | 87 | MT DMX512 Dimming 12-24V DC Power Supply | 1 14° 2 24° F 16X23° | F3 RGBW (3000K) F4 RGBW (4000K) F6 RGBW (5700K) | SS Stainless Steel | |
Model | Power (W) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish | |
EIR4NF-04 | 4(Max) | 119 | ET ON-OFF 12-24V DC Power Supply MT DMX512 Dimming 12-24V DC Power Supply DT 0-10V Dimming 12-24V DC Power Supply
| W Wall Washer L LASER BLADE S 8° 1 10° 2 20° 3 30° | 27 2700K 30 3000K 40 4000K | SS Stainless Steel | |
Model | Power (W) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish | ||
EIR4NF-04 | 4(Max) | 87 | MT DMX512 Dimming 12-24V DC Power Supply | 1 14° 2 24° F 16X23° | F3 RGBW (3000K) F4 RGBW (4000K) F6 RGBW (5700K) | SS Stainless Steel | ||
示例：EIR4NF-04MT-1F3SS
| 型号 | 光源功率（W） | 输入电压/电流 | 调光控制 | 光束角 | 色温（K） | 表面颜色 |
|---|---|---|---|---|---|---|
| EIR2NF-04DT-127SS | 3W | 12V-24V DC | 0-10V Dimming | 10° | 2700 | 不锈钢色 |
| EIR2NF-04DT-130SS | 3W | 12V-24V DC | 0-10V Dimming | 10° | 3000 | 不锈钢色 |
| EIR2NF-04DT-140SS | 3W | 12V-24V DC | 0-10V Dimming | 10° | 4000 | 不锈钢色 |
| EIR2NF-04DT-227SS | 3W | 12V-24V DC | 0-10V Dimming | 20° | 2700 | 不锈钢色 |
| EIR2NF-04DT-230SS | 3W | 12V-24V DC | 0-10V Dimming | 20° | 3000 | 不锈钢色 |
| EIR2NF-04DT-240SS | 3W | 12V-24V DC | 0-10V Dimming | 20° | 4000 | 不锈钢色 |
| EIR2NF-04DT-327SS | 3W | 12V-24V DC | 0-10V Dimming | 30° | 2700 | 不锈钢色 |
| EIR2NF-04DT-330SS | 3W | 12V-24V DC | 0-10V Dimming | 30° | 3000 | 不锈钢色 |
| EIR2NF-04DT-340SS | 3W | 12V-24V DC | 0-10V Dimming | 30° | 4000 | 不锈钢色 |
| EIR2NF-04DT-L27SS | 3W | 12V-24V DC | 0-10V Dimming | 三面刀光 | 2700 | 不锈钢色 |
| EIR2NF-04DT-L30SS | 3W | 12V-24V DC | 0-10V Dimming | 三面刀光 | 3000 | 不锈钢色 |
| EIR2NF-04DT-L40SS | 3W | 12V-24V DC | 0-10V Dimming | 三面刀光 | 4000 | 不锈钢色 |
| EIR2NF-04DT-S27SS | 3W | 12V-24V DC | 0-10V Dimming | 8° | 2700 | 不锈钢色 |
| EIR2NF-04DT-S30SS | 3W | 12V-24V DC | 0-10V Dimming | 8° | 3000 | 不锈钢色 |
| EIR2NF-04DT-S40SS | 3W | 12V-24V DC | 0-10V Dimming | 8° | 4000 | 不锈钢色 |
| EIR2NF-04DT-W27SS | 3W | 12V-24V DC | 0-10V Dimming | Wall Washer | 2700 | 不锈钢色 |
| EIR2NF-04DT-W30SS | 3W | 12V-24V DC | 0-10V Dimming | Wall Washer | 3000 | 不锈钢色 |
| EIR2NF-04DT-W40SS | 3W | 12V-24V DC | 0-10V Dimming | Wall Washer | 4000 | 不锈钢色 |
| EIR2NF-04ET-127SS | 3W | 12V-24V DC | ON-OFF | 10° | 2700 | 不锈钢色 |
| EIR2NF-04ET-130SS | 3W | 12V-24V DC | ON-OFF | 10° | 3000 | 不锈钢色 |
| EIR2NF-04ET-140SS | 3W | 12V-24V DC | ON-OFF | 10° | 4000 | 不锈钢色 |
| EIR2NF-04ET-227SS | 3W | 12V-24V DC | ON-OFF | 20° | 2700 | 不锈钢色 |
| EIR2NF-04ET-230SS | 3W | 12V-24V DC | ON-OFF | 20° | 3000 | 不锈钢色 |
| EIR2NF-04ET-240SS | 3W | 12V-24V DC | ON-OFF | 20° | 4000 | 不锈钢色 |
| EIR2NF-04ET-327SS | 3W | 12V-24V DC | ON-OFF | 30° | 2700 | 不锈钢色 |
| EIR2NF-04ET-330SS | 3W | 12V-24V DC | ON-OFF | 30° | 3000 | 不锈钢色 |
| EIR2NF-04ET-340SS | 3W | 12V-24V DC | ON-OFF | 30° | 4000 | 不锈钢色 |
| EIR2NF-04ET-L27SS | 3W | 12V-24V DC | ON-OFF | 三面刀光 | 2700 | 不锈钢色 |
| EIR2NF-04ET-L30SS | 3W | 12V-24V DC | ON-OFF | 三面刀光 | 3000 | 不锈钢色 |
| EIR2NF-04ET-L40SS | 3W | 12V-24V DC | ON-OFF | 三面刀光 | 4000 | 不锈钢色 |
| EIR2NF-04ET-S27SS | 3W | 12V-24V DC | ON-OFF | 8° | 2700 | 不锈钢色 |
| EIR2NF-04ET-S30SS | 3W | 12V-24V DC | ON-OFF | 8° | 3000 | 不锈钢色 |
| EIR2NF-04ET-S40SS | 3W | 12V-24V DC | ON-OFF | 8° | 4000 | 不锈钢色 |
| EIR2NF-04ET-W27SS | 3W | 12V-24V DC | ON-OFF | Wall Washer | 2700 | 不锈钢色 |
| EIR2NF-04ET-W30SS | 3W | 12V-24V DC | ON-OFF | Wall Washer | 3000 | 不锈钢色 |
| EIR2NF-04ET-W40SS | 3W | 12V-24V DC | ON-OFF | Wall Washer | 4000 | 不锈钢色 |
| EIR2NF-04MT-127SS | 3W | 12V-24V DC | DMX512 Dimming | 10° | 2700 | 不锈钢色 |
| EIR2NF-04MT-130SS | 3W | 12V-24V DC | DMX512 Dimming | 10° | 3000 | 不锈钢色 |
| EIR2NF-04MT-140SS | 3W | 12V-24V DC | DMX512 Dimming | 10° | 4000 | 不锈钢色 |
| EIR2NF-04MT-1F3SS | 3W | 12V-24V DC | DMX512 Dimming | 14° | RGBW(3000K) | 不锈钢色 |
| EIR2NF-04MT-1F4SS | 3W | 12V-24V DC | DMX512 Dimming | 14° | RGBW(4000K) | 不锈钢色 |
| EIR2NF-04MT-1F6SS | 3W | 12V-24V DC | DMX512 Dimming | 14° | RGBW(5700K) | 不锈钢色 |
| EIR2NF-04MT-227SS | 3W | 12V-24V DC | DMX512 Dimming | 20° | 2700 | 不锈钢色 |
| EIR2NF-04MT-230SS | 3W | 12V-24V DC | DMX512 Dimming | 20° | 3000 | 不锈钢色 |
| EIR2NF-04MT-240SS | 3W | 12V-24V DC | DMX512 Dimming | 20° | 4000 | 不锈钢色 |
| EIR2NF-04MT-2F3SS | 3W | 12V-24V DC | DMX512 Dimming | 24° | RGBW(3000K) | 不锈钢色 |
| EIR2NF-04MT-2F4SS | 3W | 12V-24V DC | DMX512 Dimming | 24° | RGBW(4000K) | 不锈钢色 |
| EIR2NF-04MT-2F6SS | 3W | 12V-24V DC | DMX512 Dimming | 24° | RGBW(5700K) | 不锈钢色 |
| EIR2NF-04MT-327SS | 3W | 12V-24V DC | DMX512 Dimming | 30° | 2700 | 不锈钢色 |
| EIR2NF-04MT-330SS | 3W | 12V-24V DC | DMX512 Dimming | 30° | 3000 | 不锈钢色 |
| EIR2NF-04MT-340SS | 3W | 12V-24V DC | DMX512 Dimming | 30° | 4000 | 不锈钢色 |
| EIR2NF-04MT-FF3SS | 3W | 12V-24V DC | DMX512 Dimming | 16x23° | RGBW(3000K) | 不锈钢色 |
| EIR2NF-04MT-FF4SS | 3W | 12V-24V DC | DMX512 Dimming | 16x23° | RGBW(4000K) | 不锈钢色 |
| EIR2NF-04MT-FF6SS | 3W | 12V-24V DC | DMX512 Dimming | 16x23° | RGBW(5700K) | 不锈钢色 |
| EIR2NF-04MT-L27SS | 3W | 12V-24V DC | DMX512 Dimming | 三面刀光 | 2700 | 不锈钢色 |
| EIR2NF-04MT-L30SS | 3W | 12V-24V DC | DMX512 Dimming | 三面刀光 | 3000 | 不锈钢色 |
| EIR2NF-04MT-L40SS | 3W | 12V-24V DC | DMX512 Dimming | 三面刀光 | 4000 | 不锈钢色 |
| EIR2NF-04MT-S27SS | 3W | 12V-24V DC | DMX512 Dimming | 8° | 2700 | 不锈钢色 |
| EIR2NF-04MT-S30SS | 3W | 12V-24V DC | DMX512 Dimming | 8° | 3000 | 不锈钢色 |
| EIR2NF-04MT-S40SS | 3W | 12V-24V DC | DMX512 Dimming | 8° | 4000 | 不锈钢色 |
| EIR2NF-04MT-W27SS | 3W | 12V-24V DC | DMX512 Dimming | Wall Washer | 2700 | 不锈钢色 |
| EIR2NF-04MT-W30SS | 3W | 12V-24V DC | DMX512 Dimming | Wall Washer | 3000 | 不锈钢色 |
| EIR2NF-04MT-W40SS | 3W | 12V-24V DC | DMX512 Dimming | Wall Washer | 4000 | 不锈钢色 |
| EIR4NF-04DT-127SS | 3W | 12V-24V DC | 0-10V Dimming | 10° | 2700 | 不锈钢色 |
| EIR4NF-04DT-130SS | 3W | 12V-24V DC | 0-10V Dimming | 10° | 3000 | 不锈钢色 |
| EIR4NF-04DT-140SS | 3W | 12V-24V DC | 0-10V Dimming | 10° | 4000 | 不锈钢色 |
| EIR4NF-04DT-227SS | 3W | 12V-24V DC | 0-10V Dimming | 20° | 2700 | 不锈钢色 |
| EIR4NF-04DT-230SS | 3W | 12V-24V DC | 0-10V Dimming | 20° | 3000 | 不锈钢色 |
| EIR4NF-04DT-240SS | 3W | 12V-24V DC | 0-10V Dimming | 20° | 4000 | 不锈钢色 |
| EIR4NF-04DT-327SS | 3W | 12V-24V DC | 0-10V Dimming | 30° | 2700 | 不锈钢色 |
| EIR4NF-04DT-330SS | 3W | 12V-24V DC | 0-10V Dimming | 30° | 3000 | 不锈钢色 |
| EIR4NF-04DT-340SS | 3W | 12V-24V DC | 0-10V Dimming | 30° | 4000 | 不锈钢色 |
| EIR4NF-04DT-L27SS | 3W | 12V-24V DC | 0-10V Dimming | 三面刀光 | 2700 | 不锈钢色 |
| EIR4NF-04DT-L30SS | 3W | 12V-24V DC | 0-10V Dimming | 三面刀光 | 3000 | 不锈钢色 |
| EIR4NF-04DT-L40SS | 3W | 12V-24V DC | 0-10V Dimming | 三面刀光 | 4000 | 不锈钢色 |
| EIR4NF-04DT-S27SS | 3W | 12V-24V DC | 0-10V Dimming | 8° | 2700 | 不锈钢色 |
| EIR4NF-04DT-S30SS | 3W | 12V-24V DC | 0-10V Dimming | 8° | 3000 | 不锈钢色 |
| EIR4NF-04DT-S40SS | 3W | 12V-24V DC | 0-10V Dimming | 8° | 4000 | 不锈钢色 |
| EIR4NF-04DT-W27SS | 3W | 12V-24V DC | 0-10V Dimming | Wall Washer | 2700 | 不锈钢色 |
| EIR4NF-04DT-W30SS | 3W | 12V-24V DC | 0-10V Dimming | Wall Washer | 3000 | 不锈钢色 |
| EIR4NF-04DT-W40SS | 3W | 12V-24V DC | 0-10V Dimming | Wall Washer | 4000 | 不锈钢色 |
| EIR4NF-04ET-127SS | 3W | 12V-24V DC | ON-OFF | 10° | 2700 | 不锈钢色 |
| EIR4NF-04ET-130SS | 3W | 12V-24V DC | ON-OFF | 10° | 3000 | 不锈钢色 |
| EIR4NF-04ET-140SS | 3W | 12V-24V DC | ON-OFF | 10° | 4000 | 不锈钢色 |
| EIR4NF-04ET-227SS | 3W | 12V-24V DC | ON-OFF | 20° | 2700 | 不锈钢色 |
| EIR4NF-04ET-230SS | 3W | 12V-24V DC | ON-OFF | 20° | 3000 | 不锈钢色 |
| EIR4NF-04ET-240SS | 3W | 12V-24V DC | ON-OFF | 20° | 4000 | 不锈钢色 |
| EIR4NF-04ET-327SS | 3W | 12V-24V DC | ON-OFF | 30° | 2700 | 不锈钢色 |
| EIR4NF-04ET-330SS | 3W | 12V-24V DC | ON-OFF | 30° | 3000 | 不锈钢色 |
| EIR4NF-04ET-340SS | 3W | 12V-24V DC | ON-OFF | 30° | 4000 | 不锈钢色 |
| EIR4NF-04ET-L27SS | 3W | 12V-24V DC | ON-OFF | 三面刀光 | 2700 | 不锈钢色 |
| EIR4NF-04ET-L30SS | 3W | 12V-24V DC | ON-OFF | 三面刀光 | 3000 | 不锈钢色 |
| EIR4NF-04ET-L40SS | 3W | 12V-24V DC | ON-OFF | 三面刀光 | 4000 | 不锈钢色 |
| EIR4NF-04ET-S27SS | 3W | 12V-24V DC | ON-OFF | 8° | 2700 | 不锈钢色 |
| EIR4NF-04ET-S30SS | 3W | 12V-24V DC | ON-OFF | 8° | 3000 | 不锈钢色 |
| EIR4NF-04ET-S40SS | 3W | 12V-24V DC | ON-OFF | 8° | 4000 | 不锈钢色 |
| EIR4NF-04ET-W27SS | 3W | 12V-24V DC | ON-OFF | Wall Washer | 2700 | 不锈钢色 |
| EIR4NF-04ET-W30SS | 3W | 12V-24V DC | ON-OFF | Wall Washer | 3000 | 不锈钢色 |
| EIR4NF-04ET-W40SS | 3W | 12V-24V DC | ON-OFF | Wall Washer | 4000 | 不锈钢色 |
| EIR4NF-04MT-127SS | 3W | 12V-24V DC | DMX512 Dimming | 10° | 2700 | 不锈钢色 |
| EIR4NF-04MT-130SS | 3W | 12V-24V DC | DMX512 Dimming | 10° | 3000 | 不锈钢色 |
| EIR4NF-04MT-140SS | 3W | 12V-24V DC | DMX512 Dimming | 10° | 4000 | 不锈钢色 |
| EIR4NF-04MT-1F3SS | 3W | 12V-24V DC | DMX512 Dimming | 14° | RGBW(3000K) | 不锈钢色 |
| EIR4NF-04MT-1F4SS | 3W | 12V-24V DC | DMX512 Dimming | 14° | RGBW(4000K) | 不锈钢色 |
| EIR4NF-04MT-1F6SS | 3W | 12V-24V DC | DMX512 Dimming | 14° | RGBW(5700K) | 不锈钢色 |
| EIR4NF-04MT-227SS | 3W | 12V-24V DC | DMX512 Dimming | 20° | 2700 | 不锈钢色 |
| EIR4NF-04MT-230SS | 3W | 12V-24V DC | DMX512 Dimming | 20° | 3000 | 不锈钢色 |
| EIR4NF-04MT-240SS | 3W | 12V-24V DC | DMX512 Dimming | 20° | 4000 | 不锈钢色 |
| EIR4NF-04MT-2F3SS | 3W | 12V-24V DC | DMX512 Dimming | 24° | RGBW(3000K) | 不锈钢色 |
| EIR4NF-04MT-2F4SS | 3W | 12V-24V DC | DMX512 Dimming | 24° | RGBW(4000K) | 不锈钢色 |
| EIR4NF-04MT-2F6SS | 3W | 12V-24V DC | DMX512 Dimming | 24° | RGBW(5700K) | 不锈钢色 |
| EIR4NF-04MT-327SS | 3W | 12V-24V DC | DMX512 Dimming | 30° | 2700 | 不锈钢色 |
| EIR4NF-04MT-330SS | 3W | 12V-24V DC | DMX512 Dimming | 30° | 3000 | 不锈钢色 |
| EIR4NF-04MT-340SS | 3W | 12V-24V DC | DMX512 Dimming | 30° | 4000 | 不锈钢色 |
| EIR4NF-04MT-FF3SS | 3W | 12V-24V DC | DMX512 Dimming | 16x23° | RGBW(3000K) | 不锈钢色 |
| EIR4NF-04MT-FF4SS | 3W | 12V-24V DC | DMX512 Dimming | 16x23° | RGBW(4000K) | 不锈钢色 |
| EIR4NF-04MT-FF6SS | 3W | 12V-24V DC | DMX512 Dimming | 16x23° | RGBW(5700K) | 不锈钢色 |
| EIR4NF-04MT-L27SS | 3W | 12V-24V DC | DMX512 Dimming | 三面刀光 | 2700 | 不锈钢色 |
| EIR4NF-04MT-L30SS | 3W | 12V-24V DC | DMX512 Dimming | 三面刀光 | 3000 | 不锈钢色 |
| EIR4NF-04MT-L40SS | 3W | 12V-24V DC | DMX512 Dimming | 三面刀光 | 4000 | 不锈钢色 |
| EIR4NF-04MT-S27SS | 3W | 12V-24V DC | DMX512 Dimming | 8° | 2700 | 不锈钢色 |
| EIR4NF-04MT-S30SS | 3W | 12V-24V DC | DMX512 Dimming | 8° | 3000 | 不锈钢色 |
| EIR4NF-04MT-S40SS | 3W | 12V-24V DC | DMX512 Dimming | 8° | 4000 | 不锈钢色 |
| EIR4NF-04MT-W27SS | 3W | 12V-24V DC | DMX512 Dimming | Wall Washer | 2700 | 不锈钢色 |
| EIR4NF-04MT-W30SS | 3W | 12V-24V DC | DMX512 Dimming | Wall Washer | 3000 | 不锈钢色 |
| EIR4NF-04MT-W40SS | 3W | 12V-24V DC | DMX512 Dimming | Wall Washer | 4000 | 不锈钢色 |
