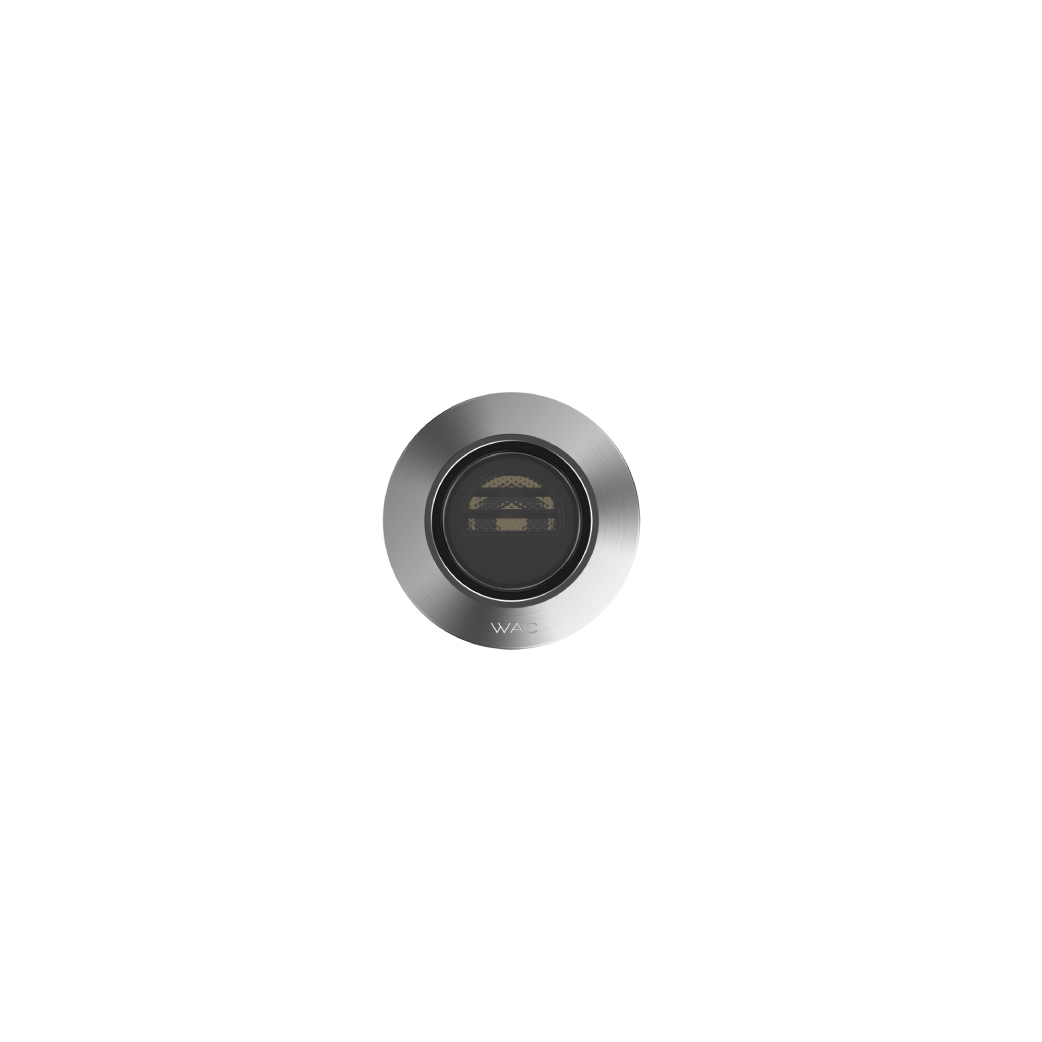

Fuego Compact 整体316不锈钢材质精加工，圆形外观，小巧精致，超薄的外观设计，IP67 / IP68防护等级，IK08 防冲击等级，可抗压 500kg，预埋筒安装、卡扣安装。

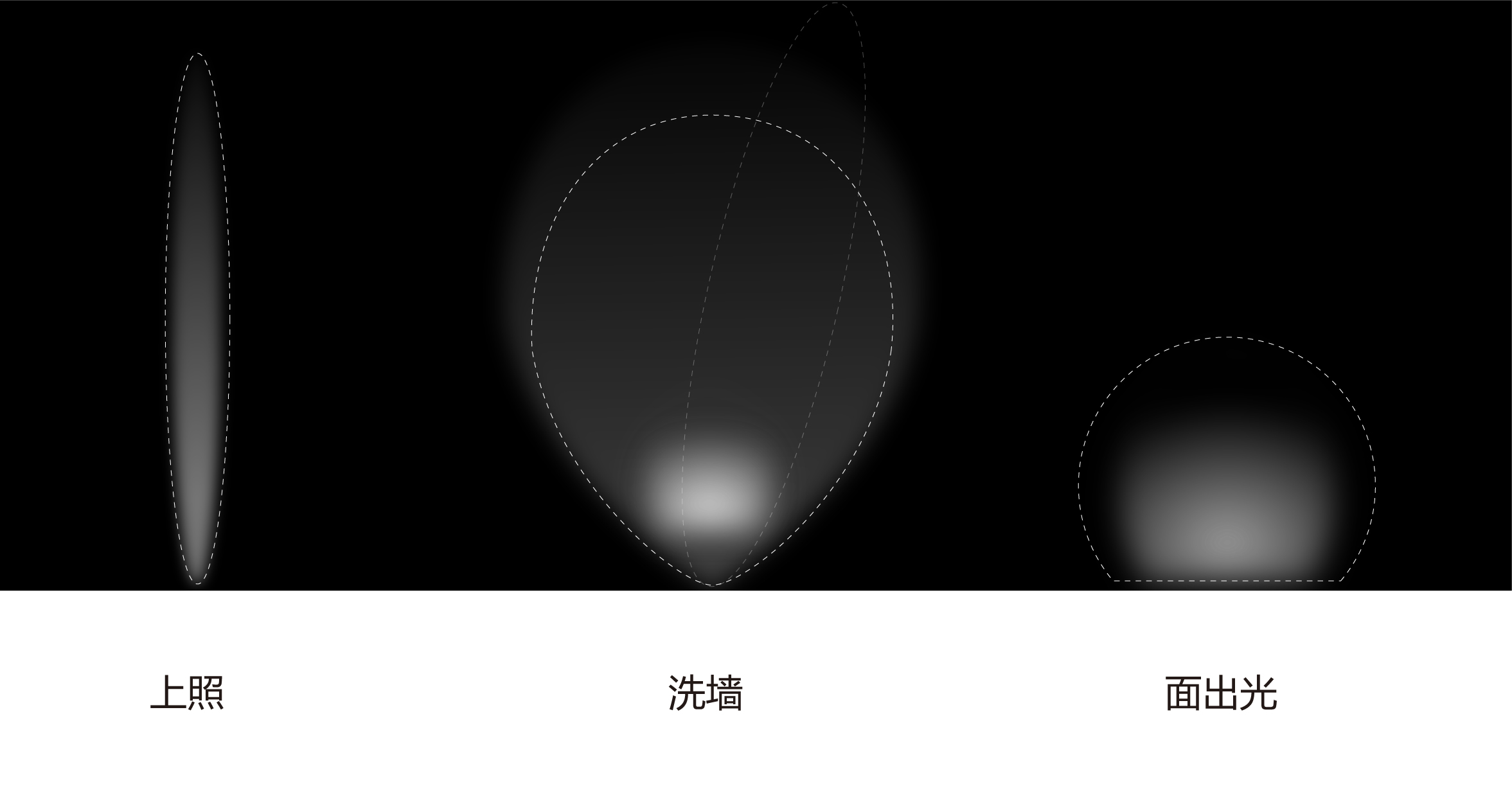

上照/洗墙/面出光
防虹吸注塑装置内置，从源头提升灯具防水性能
Fuego Compact
Model | Power (W) | Max Lumens(lm) | Control Systems | Beam | CCT | Finish |
EIR2TF-02 | 2(Max) | 67 | ET ON-OFF 12-24V DC Power Supply MT DMX512 Dimming 12-24V DC Power Supply DT 0-10V Dimming 12-24V DC Power Supply | S 6° 1 13° 2 21° 4 40° W Wall Washer P 面发光 | 27 2700K 30 3000K 40 4000K | SS Stainless Steel |
Model | Power (W) | Max Lumens(lm) | Control Systems | Beam | CCT | Finish |
EIR2TF-02 | 2(Max) | 16 | MT DMX512 Dimming 12-24V DC Power Supply | P 面发光 | F3 RGBW (3000K) F4 RGBW (4000K) F6 RGBW (5700K) | SS Stainless Steel |
Model | Power (W) | Max Lumens(lm) | Control Systems | Beam | CCT | Finish |
EIR4TF-02 | 2(Max) | 67 | ET ON-OFF 12-24V DC Power Supply MT DMX512 Dimming 12-24V DC Power Supply DT 0-10V Dimming 12-24V DC Power Supply | S 6° 1 13° 2 21° 4 40° W Wall Washer P 面发光 | 27 2700K 30 3000K 40 4000K | SS Stainless Steel |
Model | Power (W) | Max Lumens(lm) | Control Systems | Beam | CCT | Finish | |
EIR4TF-02 | 2(Max) | 16 | MT DMX512 Dimming 12-24V DC Power Supply | P 面发光 | F3 RGBW (3000K) F4 RGBW (4000K) F6 RGBW (5700K) | SS Stainless Steel | |
示例：EIR4TF-02ET-P27SS
| 型号 | 光源功率（W） | 输入电压/电流 | 调光控制 | 光束角 | 色温（K） | 表面颜色 |
|---|---|---|---|---|---|---|
| EIR2TF-02DT-127SS | 1.7W | 12V-24V DC | 0-10V Dimming | 13° | 2700 | 不锈钢色 |
| EIR2TF-02DT-130SS | 1.7W | 12V-24V DC | 0-10V Dimming | 13° | 3000 | 不锈钢色 |
| EIR2TF-02DT-140SS | 1.7W | 12V-24V DC | 0-10V Dimming | 13° | 4000 | 不锈钢色 |
| EIR2TF-02DT-227SS | 1.7W | 12V-24V DC | 0-10V Dimming | 20° | 2700 | 不锈钢色 |
| EIR2TF-02DT-230SS | 1.7W | 12V-24V DC | 0-10V Dimming | 20° | 3000 | 不锈钢色 |
| EIR2TF-02DT-240SS | 1.7W | 12V-24V DC | 0-10V Dimming | 20° | 4000 | 不锈钢色 |
| EIR2TF-02DT-427SS | 1.7W | 12V-24V DC | 0-10V Dimming | 40° | 2700 | 不锈钢色 |
| EIR2TF-02DT-430SS | 1.7W | 12V-24V DC | 0-10V Dimming | 40° | 3000 | 不锈钢色 |
| EIR2TF-02DT-440SS | 1.7W | 12V-24V DC | 0-10V Dimming | 40° | 4000 | 不锈钢色 |
| EIR2TF-02DT-P27SS | 1.7W | 12V-24V DC | 0-10V Dimming | 面发光 | 2700 | 不锈钢色 |
| EIR2TF-02DT-P30SS | 1.7W | 12V-24V DC | 0-10V Dimming | 面发光 | 3000 | 不锈钢色 |
| EIR2TF-02DT-P40SS | 1.7W | 12V-24V DC | 0-10V Dimming | 面发光 | 4000 | 不锈钢色 |
| EIR2TF-02DT-S27SS | 1.7W | 12V-24V DC | 0-10V Dimming | 6° | 2700 | 不锈钢色 |
| EIR2TF-02DT-S30SS | 1.7W | 12V-24V DC | 0-10V Dimming | 6° | 3000 | 不锈钢色 |
| EIR2TF-02DT-S40SS | 1.7W | 12V-24V DC | 0-10V Dimming | 6° | 4000 | 不锈钢色 |
| EIR2TF-02DT-W27SS | 1.7W | 12V-24V DC | 0-10V Dimming | Wall Washer | 2700 | 不锈钢色 |
| EIR2TF-02DT-W30SS | 1.7W | 12V-24V DC | 0-10V Dimming | Wall Washer | 3000 | 不锈钢色 |
| EIR2TF-02DT-W40SS | 1.7W | 12V-24V DC | 0-10V Dimming | Wall Washer | 4000 | 不锈钢色 |
| EIR2TF-02ET-127SS | 1.7W | 12V-24V DC | ON-OFF | 13° | 2700 | 不锈钢色 |
| EIR2TF-02ET-130SS | 1.7W | 12V-24V DC | ON-OFF | 13° | 3000 | 不锈钢色 |
| EIR2TF-02ET-140SS | 1.7W | 12V-24V DC | ON-OFF | 13° | 4000 | 不锈钢色 |
| EIR2TF-02ET-227SS | 1.7W | 12V-24V DC | ON-OFF | 20° | 2700 | 不锈钢色 |
| EIR2TF-02ET-230SS | 1.7W | 12V-24V DC | ON-OFF | 20° | 3000 | 不锈钢色 |
| EIR2TF-02ET-240SS | 1.7W | 12V-24V DC | ON-OFF | 20° | 4000 | 不锈钢色 |
| EIR2TF-02ET-427SS | 1.7W | 12V-24V DC | ON-OFF | 40° | 2700 | 不锈钢色 |
| EIR2TF-02ET-430SS | 1.7W | 12V-24V DC | ON-OFF | 40° | 3000 | 不锈钢色 |
| EIR2TF-02ET-440SS | 1.7W | 12V-24V DC | ON-OFF | 40° | 4000 | 不锈钢色 |
| EIR2TF-02ET-P27SS | 1.7W | 12V-24V DC | ON-OFF | 面发光 | 2700 | 不锈钢色 |
| EIR2TF-02ET-P30SS | 1.7W | 12V-24V DC | ON-OFF | 面发光 | 3000 | 不锈钢色 |
| EIR2TF-02ET-P40SS | 1.7W | 12V-24V DC | ON-OFF | 面发光 | 4000 | 不锈钢色 |
| EIR2TF-02ET-S27SS | 1.7W | 12V-24V DC | ON-OFF | 6° | 2700 | 不锈钢色 |
| EIR2TF-02ET-S30SS | 1.7W | 12V-24V DC | ON-OFF | 6° | 3000 | 不锈钢色 |
| EIR2TF-02ET-S40SS | 1.7W | 12V-24V DC | ON-OFF | 6° | 4000 | 不锈钢色 |
| EIR2TF-02ET-W27SS | 1.7W | 12V-24V DC | ON-OFF | Wall Washer | 2700 | 不锈钢色 |
| EIR2TF-02ET-W30SS | 1.7W | 12V-24V DC | ON-OFF | Wall Washer | 3000 | 不锈钢色 |
| EIR2TF-02ET-W40SS | 1.7W | 12V-24V DC | ON-OFF | Wall Washer | 4000 | 不锈钢色 |
| EIR2TF-02MT-127SS | 1.7W | 12V-24V DC | DMX512 Dimming | 13° | 2700 | 不锈钢色 |
| EIR2TF-02MT-130SS | 1.7W | 12V-24V DC | DMX512 Dimming | 13° | 3000 | 不锈钢色 |
| EIR2TF-02MT-140SS | 1.7W | 12V-24V DC | DMX512 Dimming | 13° | 4000 | 不锈钢色 |
| EIR2TF-02MT-227SS | 1.7W | 12V-24V DC | DMX512 Dimming | 20° | 2700 | 不锈钢色 |
| EIR2TF-02MT-230SS | 1.7W | 12V-24V DC | DMX512 Dimming | 20° | 3000 | 不锈钢色 |
| EIR2TF-02MT-240SS | 1.7W | 12V-24V DC | DMX512 Dimming | 20° | 4000 | 不锈钢色 |
| EIR2TF-02MT-427SS | 1.7W | 12V-24V DC | DMX512 Dimming | 40° | 2700 | 不锈钢色 |
| EIR2TF-02MT-430SS | 1.7W | 12V-24V DC | DMX512 Dimming | 40° | 3000 | 不锈钢色 |
| EIR2TF-02MT-440SS | 1.7W | 12V-24V DC | DMX512 Dimming | 40° | 4000 | 不锈钢色 |
| EIR2TF-02MT-P27SS | 1.7W | 12V-24V DC | DMX512 Dimming | 面发光 | 2700 | 不锈钢色 |
| EIR2TF-02MT-P30SS | 1.7W | 12V-24V DC | DMX512 Dimming | 面发光 | 3000 | 不锈钢色 |
| EIR2TF-02MT-P40SS | 1.7W | 12V-24V DC | DMX512 Dimming | 面发光 | 4000 | 不锈钢色 |
| EIR2TF-02MT-PF30SS | 1.7W | 12V-24V DC | DMX512 Dimming | 面发光 | RGBW(3000K) | 不锈钢色 |
| EIR2TF-02MT-PF40SS | 1.7W | 12V-24V DC | DMX512 Dimming | 面发光 | RGBW(4000K) | 不锈钢色 |
| EIR2TF-02MT-PF60SS | 1.7W | 12V-24V DC | DMX512 Dimming | 面发光 | RGBW(5700K) | 不锈钢色 |
| EIR2TF-02MT-S27SS | 1.7W | 12V-24V DC | DMX512 Dimming | 6° | 2700 | 不锈钢色 |
| EIR2TF-02MT-S30SS | 1.7W | 12V-24V DC | DMX512 Dimming | 6° | 3000 | 不锈钢色 |
| EIR2TF-02MT-S40SS | 1.7W | 12V-24V DC | DMX512 Dimming | 6° | 4000 | 不锈钢色 |
| EIR2TF-02MT-W27SS | 1.7W | 12V-24V DC | DMX512 Dimming | Wall Washer | 2700 | 不锈钢色 |
| EIR2TF-02MT-W30SS | 1.7W | 12V-24V DC | DMX512 Dimming | Wall Washer | 3000 | 不锈钢色 |
| EIR2TF-02MT-W40SS | 1.7W | 12V-24V DC | DMX512 Dimming | Wall Washer | 4000 | 不锈钢色 |
| EIR4TF-02DT-127SS | 1.7W | 12V-24V DC | 0-10V Dimming | 13° | 2700 | 不锈钢色 |
| EIR4TF-02DT-130SS | 1.7W | 12V-24V DC | 0-10V Dimming | 13° | 3000 | 不锈钢色 |
| EIR4TF-02DT-140SS | 1.7W | 12V-24V DC | 0-10V Dimming | 13° | 4000 | 不锈钢色 |
| EIR4TF-02DT-227SS | 1.7W | 12V-24V DC | 0-10V Dimming | 20° | 2700 | 不锈钢色 |
| EIR4TF-02DT-230SS | 1.7W | 12V-24V DC | 0-10V Dimming | 20° | 3000 | 不锈钢色 |
| EIR4TF-02DT-240SS | 1.7W | 12V-24V DC | 0-10V Dimming | 20° | 4000 | 不锈钢色 |
| EIR4TF-02DT-427SS | 1.7W | 12V-24V DC | 0-10V Dimming | 40° | 2700 | 不锈钢色 |
| EIR4TF-02DT-430SS | 1.7W | 12V-24V DC | 0-10V Dimming | 40° | 3000 | 不锈钢色 |
| EIR4TF-02DT-440SS | 1.7W | 12V-24V DC | 0-10V Dimming | 40° | 4000 | 不锈钢色 |
| EIR4TF-02DT-P27SS | 1.7W | 12V-24V DC | 0-10V Dimming | 面发光 | 2700 | 不锈钢色 |
| EIR4TF-02DT-P30SS | 1.7W | 12V-24V DC | 0-10V Dimming | 面发光 | 3000 | 不锈钢色 |
| EIR4TF-02DT-P40SS | 1.7W | 12V-24V DC | 0-10V Dimming | 面发光 | 4000 | 不锈钢色 |
| EIR4TF-02DT-S27SS | 1.7W | 12V-24V DC | 0-10V Dimming | 6° | 2700 | 不锈钢色 |
| EIR4TF-02DT-S30SS | 1.7W | 12V-24V DC | 0-10V Dimming | 6° | 3000 | 不锈钢色 |
| EIR4TF-02DT-S40SS | 1.7W | 12V-24V DC | 0-10V Dimming | 6° | 4000 | 不锈钢色 |
| EIR4TF-02DT-W27SS | 1.7W | 12V-24V DC | 0-10V Dimming | Wall Washer | 2700 | 不锈钢色 |
| EIR4TF-02DT-W30SS | 1.7W | 12V-24V DC | 0-10V Dimming | Wall Washer | 3000 | 不锈钢色 |
| EIR4TF-02DT-W40SS | 1.7W | 12V-24V DC | 0-10V Dimming | Wall Washer | 4000 | 不锈钢色 |
| EIR4TF-02ET-127SS | 1.7W | 12V-24V DC | ON-OFF | 13° | 2700 | 不锈钢色 |
| EIR4TF-02ET-130SS | 1.7W | 12V-24V DC | ON-OFF | 13° | 3000 | 不锈钢色 |
| EIR4TF-02ET-140SS | 1.7W | 12V-24V DC | ON-OFF | 13° | 4000 | 不锈钢色 |
| EIR4TF-02ET-227SS | 1.7W | 12V-24V DC | ON-OFF | 20° | 2700 | 不锈钢色 |
| EIR4TF-02ET-230SS | 1.7W | 12V-24V DC | ON-OFF | 20° | 3000 | 不锈钢色 |
| EIR4TF-02ET-240SS | 1.7W | 12V-24V DC | ON-OFF | 20° | 4000 | 不锈钢色 |
| EIR4TF-02ET-427SS | 1.7W | 12V-24V DC | ON-OFF | 40° | 2700 | 不锈钢色 |
| EIR4TF-02ET-430SS | 1.7W | 12V-24V DC | ON-OFF | 40° | 3000 | 不锈钢色 |
| EIR4TF-02ET-440SS | 1.7W | 12V-24V DC | ON-OFF | 40° | 4000 | 不锈钢色 |
| EIR4TF-02ET-P27SS | 1.7W | 12V-24V DC | ON-OFF | 面发光 | 2700 | 不锈钢色 |
| EIR4TF-02ET-P30SS | 1.7W | 12V-24V DC | ON-OFF | 面发光 | 3000 | 不锈钢色 |
| EIR4TF-02ET-P40SS | 1.7W | 12V-24V DC | ON-OFF | 面发光 | 4000 | 不锈钢色 |
| EIR4TF-02ET-S27SS | 1.7W | 12V-24V DC | ON-OFF | 6° | 2700 | 不锈钢色 |
| EIR4TF-02ET-S30SS | 1.7W | 12V-24V DC | ON-OFF | 6° | 3000 | 不锈钢色 |
| EIR4TF-02ET-S40SS | 1.7W | 12V-24V DC | ON-OFF | 6° | 4000 | 不锈钢色 |
| EIR4TF-02ET-W27SS | 1.7W | 12V-24V DC | ON-OFF | Wall Washer | 2700 | 不锈钢色 |
| EIR4TF-02ET-W30SS | 1.7W | 12V-24V DC | ON-OFF | Wall Washer | 3000 | 不锈钢色 |
| EIR4TF-02ET-W40SS | 1.7W | 12V-24V DC | ON-OFF | Wall Washer | 4000 | 不锈钢色 |
| EIR4TF-02MT-127SS | 1.7W | 12V-24V DC | DMX512 Dimming | 13° | 2700 | 不锈钢色 |
| EIR4TF-02MT-130SS | 1.7W | 12V-24V DC | DMX512 Dimming | 13° | 3000 | 不锈钢色 |
| EIR4TF-02MT-140SS | 1.7W | 12V-24V DC | DMX512 Dimming | 13° | 4000 | 不锈钢色 |
| EIR4TF-02MT-227SS | 1.7W | 12V-24V DC | DMX512 Dimming | 20° | 2700 | 不锈钢色 |
| EIR4TF-02MT-230SS | 1.7W | 12V-24V DC | DMX512 Dimming | 20° | 3000 | 不锈钢色 |
| EIR4TF-02MT-240SS | 1.7W | 12V-24V DC | DMX512 Dimming | 20° | 4000 | 不锈钢色 |
| EIR4TF-02MT-427SS | 1.7W | 12V-24V DC | DMX512 Dimming | 40° | 2700 | 不锈钢色 |
| EIR4TF-02MT-430SS | 1.7W | 12V-24V DC | DMX512 Dimming | 40° | 3000 | 不锈钢色 |
| EIR4TF-02MT-440SS | 1.7W | 12V-24V DC | DMX512 Dimming | 40° | 4000 | 不锈钢色 |
| EIR4TF-02MT-P27SS | 1.7W | 12V-24V DC | DMX512 Dimming | 面发光 | 2700 | 不锈钢色 |
| EIR4TF-02MT-P30SS | 1.7W | 12V-24V DC | DMX512 Dimming | 面发光 | 3000 | 不锈钢色 |
| EIR4TF-02MT-P40SS | 1.7W | 12V-24V DC | DMX512 Dimming | 面发光 | 4000 | 不锈钢色 |
| EIR4TF-02MT-PF3SS | 1.7W | 12V-24V DC | DMX512 Dimming | 面发光 | RGBW(3000K) | 不锈钢色 |
| EIR4TF-02MT-PF4SS | 1.7W | 12V-24V DC | DMX512 Dimming | 面发光 | RGBW(4000K) | 不锈钢色 |
| EIR4TF-02MT-PF6SS | 1.7W | 12V-24V DC | DMX512 Dimming | 面发光 | RGBW(5700K) | 不锈钢色 |
| EIR4TF-02MT-S27SS | 1.7W | 12V-24V DC | DMX512 Dimming | 6° | 2700 | 不锈钢色 |
| EIR4TF-02MT-S30SS | 1.7W | 12V-24V DC | DMX512 Dimming | 6° | 3000 | 不锈钢色 |
| EIR4TF-02MT-S40SS | 1.7W | 12V-24V DC | DMX512 Dimming | 6° | 4000 | 不锈钢色 |
| EIR4TF-02MT-W27SS | 1.7W | 12V-24V DC | DMX512 Dimming | Wall Washer | 2700 | 不锈钢色 |
| EIR4TF-02MT-W30SS | 1.7W | 12V-24V DC | DMX512 Dimming | Wall Washer | 3000 | 不锈钢色 |
| EIR4TF-02MT-W40SS | 1.7W | 12V-24V DC | DMX512 Dimming | Wall Washer | 4000 | 不锈钢色 |
