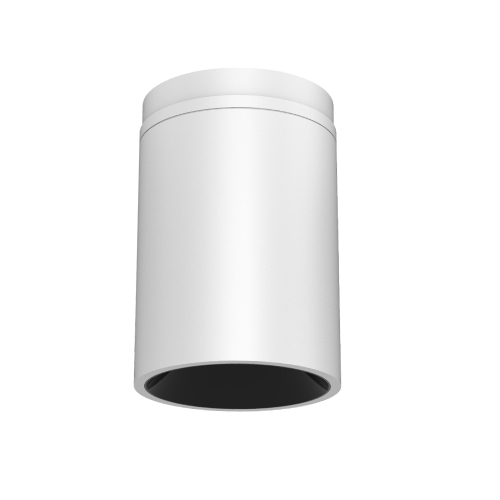

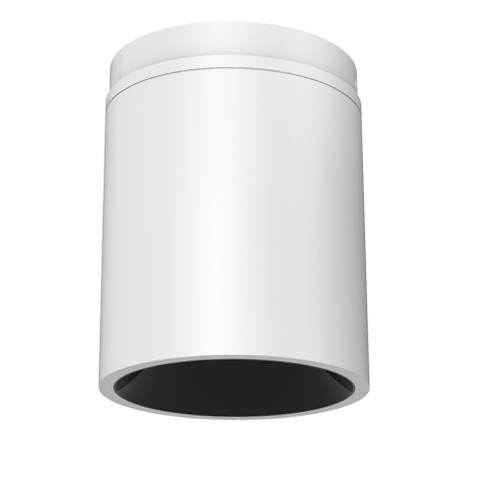

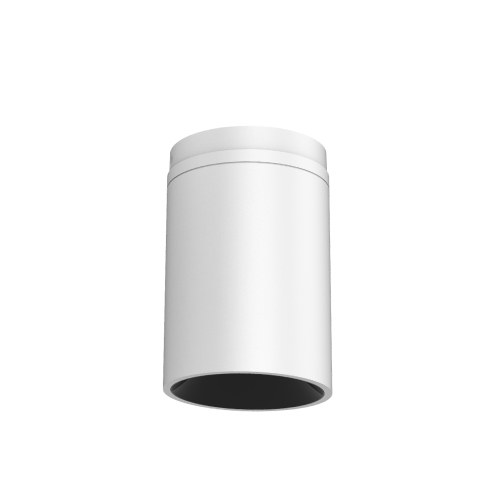

Slana Pro Fix 下照明装筒灯，整灯精致简洁，精巧细致的外观和结构设计，采用吸顶安装和吊杆安装。卓越的光学性能，在建筑照明中更具有装饰性， 主要适用于公共高空的功能性照明。

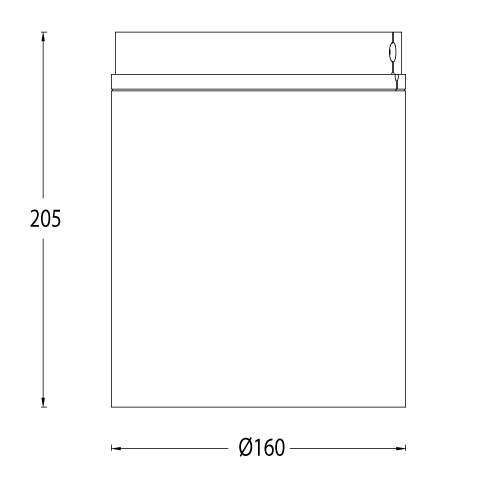

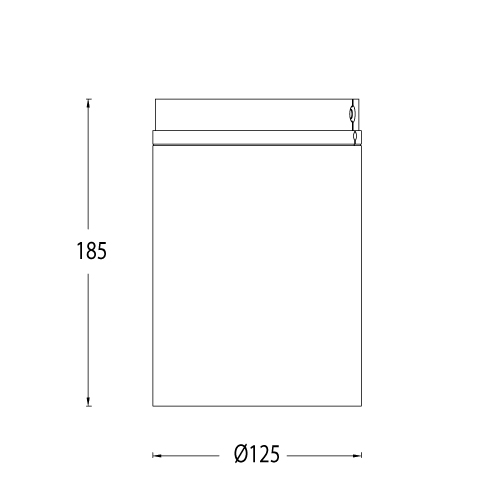

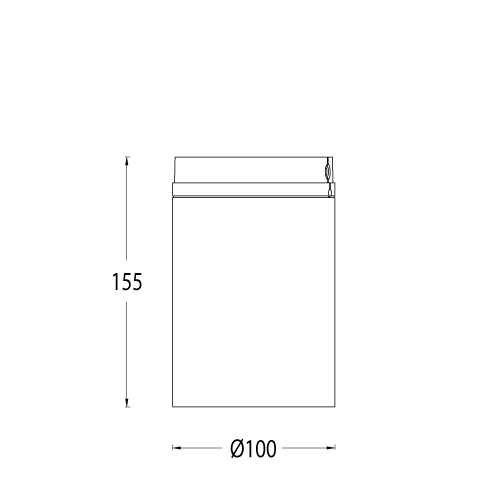

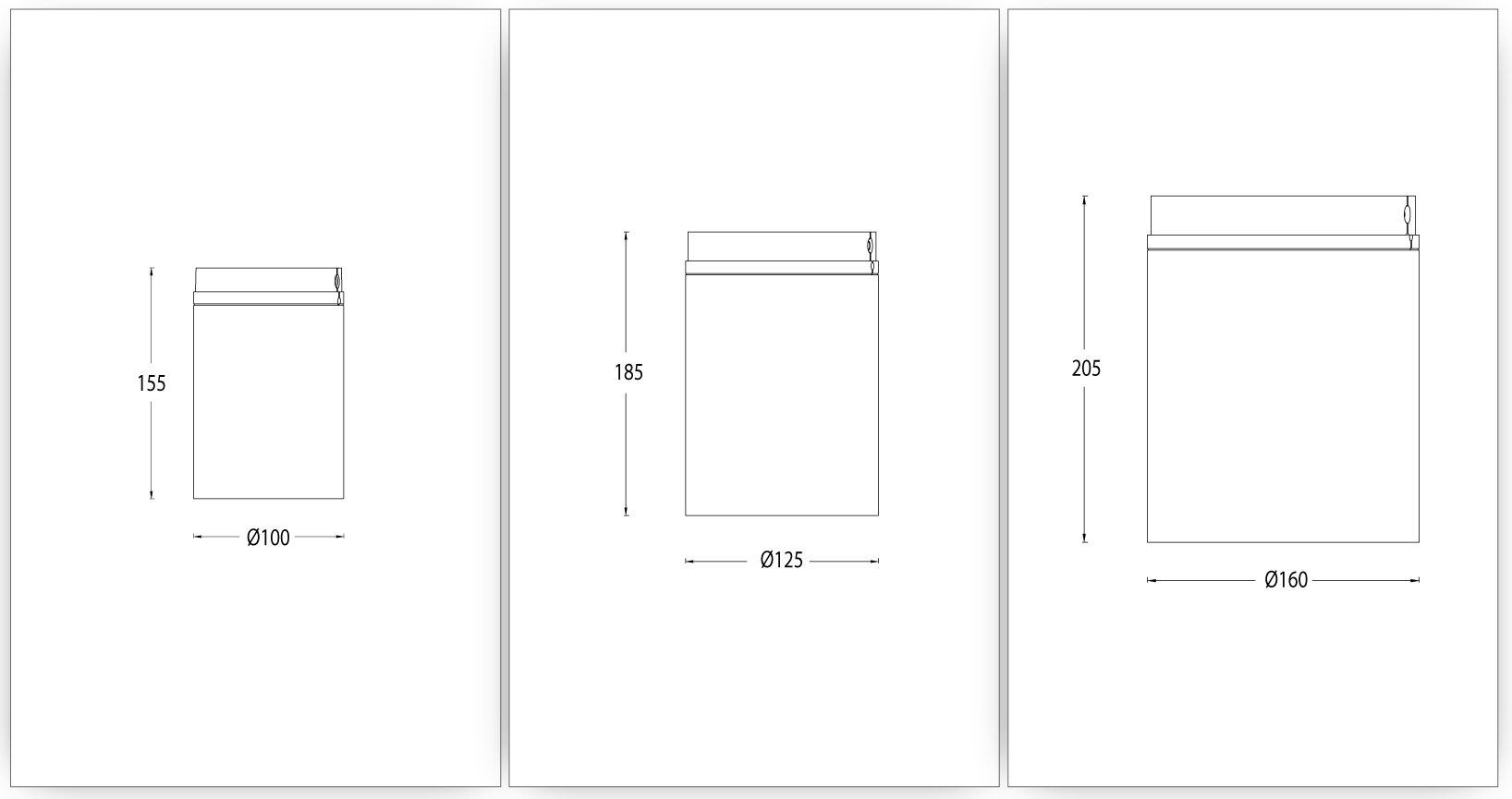

3/4/5 寸尺寸图详情

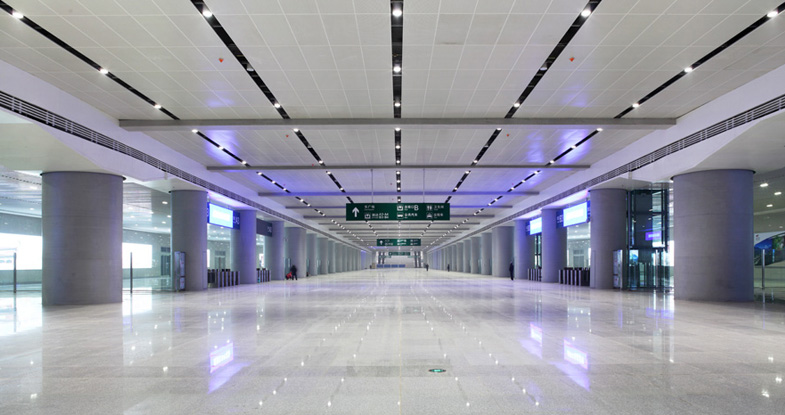

使用场景 一
Model | Comment | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Reflector | Finish |
ES3N | F Fixed | 25 25W(Max) | COB | 2628 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | 1 19° 2 26° 3 38° 5 52° | 30 3000K 40 4000K | B Black S Specular | WT White |
Model | Comment | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Reflector | Finish |
ES3S | F Fixed | 33 33(Max) | COB | 3680 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | 1 19° 2 26° 3 38° 5 52° | 30 3000K 40 4000K | B Black S Specular | WT White |
Model | Comment | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Reflector | Finish |
ES3M | F Fixed | 43 43(Max) | COB | 4350 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | 1 15° 2 24° 3 36° 5 50° | 30 3000K 40 4000K | B Black S Specular | WT White |
示例：ES3MF-43EL-130BWT
| 型号 | 光源功率（W） | 输入电压/电流 | 调光控制 | 光束角 | 色温（K） | 反射器颜色 | 表面颜色 |
|---|---|---|---|---|---|---|---|
| ES3MF-43DL-130BWT | 43W | 220V AC/50Hz | 0-10V Dimming | 15° | 3000 | 黑色 | 白色 |
| ES3MF-43DL-130SWT | 43W | 220V AC/50Hz | 0-10V Dimming | 15° | 3000 | 镜面 | 白色 |
| ES3MF-43DL-140BWT | 43W | 220V AC/50Hz | 0-10V Dimming | 15° | 4000 | 黑色 | 白色 |
| ES3MF-43DL-140SWT | 43W | 220V AC/50Hz | 0-10V Dimming | 15° | 4000 | 镜面 | 白色 |
| ES3MF-43DL-230BWT | 43W | 220V AC/50Hz | 0-10V Dimming | 26° | 3000 | 黑色 | 白色 |
| ES3MF-43DL-230SWT | 43W | 220V AC/50Hz | 0-10V Dimming | 26° | 3000 | 镜面 | 白色 |
| ES3MF-43DL-240BWT | 43W | 220V AC/50Hz | 0-10V Dimming | 26° | 4000 | 黑色 | 白色 |
| ES3MF-43DL-240SWT | 43W | 220V AC/50Hz | 0-10V Dimming | 26° | 4000 | 镜面 | 白色 |
| ES3MF-43DL-330BWT | 43W | 220V AC/50Hz | 0-10V Dimming | 38° | 3000 | 黑色 | 白色 |
| ES3MF-43DL-330SWT | 43W | 220V AC/50Hz | 0-10V Dimming | 38° | 3000 | 镜面 | 白色 |
| ES3MF-43DL-340BWT | 43W | 220V AC/50Hz | 0-10V Dimming | 38° | 4000 | 黑色 | 白色 |
| ES3MF-43DL-340SWT | 43W | 220V AC/50Hz | 0-10V Dimming | 38° | 4000 | 镜面 | 白色 |
| ES3MF-43DL-530BWT | 43W | 220V AC/50Hz | 0-10V Dimming | 52° | 3000 | 黑色 | 白色 |
| ES3MF-43DL-530SWT | 43W | 220V AC/50Hz | 0-10V Dimming | 52° | 3000 | 镜面 | 白色 |
| ES3MF-43DL-540BWT | 43W | 220V AC/50Hz | 0-10V Dimming | 52° | 4000 | 黑色 | 白色 |
| ES3MF-43DL-540SWT | 43W | 220V AC/50Hz | 0-10V Dimming | 52° | 4000 | 镜面 | 白色 |
| ES3MF-43EL-130BWT | 43W | 220V AC/50Hz | ON-OFF | 15° | 3000 | 黑色 | 白色 |
| ES3MF-43EL-130SWT | 43W | 220V AC/50Hz | ON-OFF | 15° | 3000 | 镜面 | 白色 |
| ES3MF-43EL-140BWT | 43W | 220V AC/50Hz | ON-OFF | 15° | 4000 | 黑色 | 白色 |
| ES3MF-43EL-140SWT | 43W | 220V AC/50Hz | ON-OFF | 15° | 4000 | 镜面 | 白色 |
| ES3MF-43EL-230BWT | 43W | 220V AC/50Hz | ON-OFF | 26° | 3000 | 黑色 | 白色 |
| ES3MF-43EL-230SWT | 43W | 220V AC/50Hz | ON-OFF | 26° | 3000 | 镜面 | 白色 |
| ES3MF-43EL-240BWT | 43W | 220V AC/50Hz | ON-OFF | 26° | 4000 | 黑色 | 白色 |
| ES3MF-43EL-240SWT | 43W | 220V AC/50Hz | ON-OFF | 26° | 4000 | 镜面 | 白色 |
| ES3MF-43EL-330BWT | 43W | 220V AC/50Hz | ON-OFF | 38° | 3000 | 黑色 | 白色 |
| ES3MF-43EL-330SWT | 43W | 220V AC/50Hz | ON-OFF | 38° | 3000 | 镜面 | 白色 |
| ES3MF-43EL-340BWT | 43W | 220V AC/50Hz | ON-OFF | 38° | 4000 | 黑色 | 白色 |
| ES3MF-43EL-340SWT | 43W | 220V AC/50Hz | ON-OFF | 38° | 4000 | 镜面 | 白色 |
| ES3MF-43EL-530BWT | 43W | 220V AC/50Hz | ON-OFF | 52° | 3000 | 黑色 | 白色 |
| ES3MF-43EL-530SWT | 43W | 220V AC/50Hz | ON-OFF | 52° | 3000 | 镜面 | 白色 |
| ES3MF-43EL-540BWT | 43W | 220V AC/50Hz | ON-OFF | 52° | 4000 | 黑色 | 白色 |
| ES3MF-43EL-540SWT | 43W | 220V AC/50Hz | ON-OFF | 52° | 4000 | 镜面 | 白色 |
| ES3NF-25DL-130BWT | 25W | 220V AC/50Hz | 0-10V Dimming | 19° | 3000 | 黑色 | 白色 |
| ES3NF-25DL-130SWT | 25W | 220V AC/50Hz | 0-10V Dimming | 19° | 3000 | 镜面 | 白色 |
| ES3NF-25DL-140BWT | 25W | 220V AC/50Hz | 0-10V Dimming | 19° | 4000 | 黑色 | 白色 |
| ES3NF-25DL-140SWT | 25W | 220V AC/50Hz | 0-10V Dimming | 19° | 4000 | 镜面 | 白色 |
| ES3NF-25DL-230BWT | 25W | 220V AC/50Hz | 0-10V Dimming | 26° | 3000 | 黑色 | 白色 |
| ES3NF-25DL-230SWT | 25W | 220V AC/50Hz | 0-10V Dimming | 26° | 3000 | 镜面 | 白色 |
| ES3NF-25DL-240BWT | 25W | 220V AC/50Hz | 0-10V Dimming | 26° | 4000 | 黑色 | 白色 |
| ES3NF-25DL-240SWT | 25W | 220V AC/50Hz | 0-10V Dimming | 26° | 4000 | 镜面 | 白色 |
| ES3NF-25DL-330BWT | 25W | 220V AC/50Hz | 0-10V Dimming | 38° | 3000 | 黑色 | 白色 |
| ES3NF-25DL-330SWT | 25W | 220V AC/50Hz | 0-10V Dimming | 38° | 3000 | 镜面 | 白色 |
| ES3NF-25DL-340BWT | 25W | 220V AC/50Hz | 0-10V Dimming | 38° | 4000 | 黑色 | 白色 |
| ES3NF-25DL-340SWT | 25W | 220V AC/50Hz | 0-10V Dimming | 38° | 4000 | 镜面 | 白色 |
| ES3NF-25DL-530BWT | 25W | 220V AC/50Hz | 0-10V Dimming | 52° | 3000 | 黑色 | 白色 |
| ES3NF-25DL-530SWT | 25W | 220V AC/50Hz | 0-10V Dimming | 52° | 3000 | 镜面 | 白色 |
| ES3NF-25DL-540BWT | 25W | 220V AC/50Hz | 0-10V Dimming | 52° | 4000 | 黑色 | 白色 |
| ES3NF-25DL-540SWT | 25W | 220V AC/50Hz | 0-10V Dimming | 52° | 4000 | 镜面 | 白色 |
| ES3NF-25EL-130BWT | 25W | 220V AC/50Hz | ON-OFF | 19° | 3000 | 黑色 | 白色 |
| ES3NF-25EL-130SWT | 25W | 220V AC/50Hz | ON-OFF | 19° | 3000 | 镜面 | 白色 |
| ES3NF-25EL-140BWT | 25W | 220V AC/50Hz | ON-OFF | 19° | 4000 | 黑色 | 白色 |
| ES3NF-25EL-140SWT | 25W | 220V AC/50Hz | ON-OFF | 19° | 4000 | 镜面 | 白色 |
| ES3NF-25EL-230BWT | 25W | 220V AC/50Hz | ON-OFF | 26° | 3000 | 黑色 | 白色 |
| ES3NF-25EL-230SWT | 25W | 220V AC/50Hz | ON-OFF | 26° | 3000 | 镜面 | 白色 |
| ES3NF-25EL-240BWT | 25W | 220V AC/50Hz | ON-OFF | 26° | 4000 | 黑色 | 白色 |
| ES3NF-25EL-240SWT | 25W | 220V AC/50Hz | ON-OFF | 26° | 4000 | 镜面 | 白色 |
| ES3NF-25EL-330BWT | 25W | 220V AC/50Hz | ON-OFF | 38° | 3000 | 黑色 | 白色 |
| ES3NF-25EL-330SWT | 25W | 220V AC/50Hz | ON-OFF | 38° | 3000 | 镜面 | 白色 |
| ES3NF-25EL-340BWT | 25W | 220V AC/50Hz | ON-OFF | 38° | 4000 | 黑色 | 白色 |
| ES3NF-25EL-340SWT | 25W | 220V AC/50Hz | ON-OFF | 38° | 4000 | 镜面 | 白色 |
| ES3NF-25EL-530BWT | 25W | 220V AC/50Hz | ON-OFF | 52° | 3000 | 黑色 | 白色 |
| ES3NF-25EL-530SWT | 25W | 220V AC/50Hz | ON-OFF | 52° | 3000 | 镜面 | 白色 |
| ES3NF-25EL-540BWT | 25W | 220V AC/50Hz | ON-OFF | 52° | 4000 | 黑色 | 白色 |
| ES3NF-25EL-540SWT | 25W | 220V AC/50Hz | ON-OFF | 52° | 4000 | 镜面 | 白色 |
| ES3SF-33DL-130BWT | 33W | 220V AC/50Hz | 0-10V Dimming | 19° | 3000 | 黑色 | 白色 |
| ES3SF-33DL-130SWT | 33W | 220V AC/50Hz | 0-10V Dimming | 19° | 3000 | 镜面 | 白色 |
| ES3SF-33DL-140BWT | 33W | 220V AC/50Hz | 0-10V Dimming | 19° | 4000 | 黑色 | 白色 |
| ES3SF-33DL-140SWT | 33W | 220V AC/50Hz | 0-10V Dimming | 19° | 4000 | 镜面 | 白色 |
| ES3SF-33DL-230BWT | 33W | 220V AC/50Hz | 0-10V Dimming | 26° | 3000 | 黑色 | 白色 |
| ES3SF-33DL-230SWT | 33W | 220V AC/50Hz | 0-10V Dimming | 26° | 3000 | 镜面 | 白色 |
| ES3SF-33DL-240BWT | 33W | 220V AC/50Hz | 0-10V Dimming | 26° | 4000 | 黑色 | 白色 |
| ES3SF-33DL-240SWT | 33W | 220V AC/50Hz | 0-10V Dimming | 26° | 4000 | 镜面 | 白色 |
| ES3SF-33DL-330BWT | 33W | 220V AC/50Hz | 0-10V Dimming | 38° | 3000 | 黑色 | 白色 |
| ES3SF-33DL-330SWT | 33W | 220V AC/50Hz | 0-10V Dimming | 38° | 3000 | 镜面 | 白色 |
| ES3SF-33DL-340BWT | 33W | 220V AC/50Hz | 0-10V Dimming | 38° | 4000 | 黑色 | 白色 |
| ES3SF-33DL-340SWT | 33W | 220V AC/50Hz | 0-10V Dimming | 38° | 4000 | 镜面 | 白色 |
| ES3SF-33DL-530BWT | 33W | 220V AC/50Hz | 0-10V Dimming | 52° | 3000 | 黑色 | 白色 |
| ES3SF-33DL-530SWT | 33W | 220V AC/50Hz | 0-10V Dimming | 52° | 3000 | 镜面 | 白色 |
| ES3SF-33DL-540BWT | 33W | 220V AC/50Hz | 0-10V Dimming | 52° | 4000 | 黑色 | 白色 |
| ES3SF-33DL-540SWT | 33W | 220V AC/50Hz | 0-10V Dimming | 52° | 4000 | 镜面 | 白色 |
| ES3SF-33EL-130BWT | 33W | 220V AC/50Hz | ON-OFF | 19° | 3000 | 黑色 | 白色 |
| ES3SF-33EL-130SWT | 33W | 220V AC/50Hz | ON-OFF | 19° | 3000 | 镜面 | 白色 |
| ES3SF-33EL-140BWT | 33W | 220V AC/50Hz | ON-OFF | 19° | 4000 | 黑色 | 白色 |
| ES3SF-33EL-140SWT | 33W | 220V AC/50Hz | ON-OFF | 19° | 4000 | 镜面 | 白色 |
| ES3SF-33EL-230BWT | 33W | 220V AC/50Hz | ON-OFF | 26° | 3000 | 黑色 | 白色 |
| ES3SF-33EL-230SWT | 33W | 220V AC/50Hz | ON-OFF | 26° | 3000 | 镜面 | 白色 |
| ES3SF-33EL-240BWT | 33W | 220V AC/50Hz | ON-OFF | 26° | 4000 | 黑色 | 白色 |
| ES3SF-33EL-240SWT | 33W | 220V AC/50Hz | ON-OFF | 26° | 4000 | 镜面 | 白色 |
| ES3SF-33EL-330BWT | 33W | 220V AC/50Hz | ON-OFF | 38° | 3000 | 黑色 | 白色 |
| ES3SF-33EL-330SWT | 33W | 220V AC/50Hz | ON-OFF | 38° | 3000 | 镜面 | 白色 |
| ES3SF-33EL-340BWT | 33W | 220V AC/50Hz | ON-OFF | 38° | 4000 | 黑色 | 白色 |
| ES3SF-33EL-340SWT | 33W | 220V AC/50Hz | ON-OFF | 38° | 4000 | 镜面 | 白色 |
| ES3SF-33EL-530BWT | 33W | 220V AC/50Hz | ON-OFF | 52° | 3000 | 黑色 | 白色 |
| ES3SF-33EL-530SWT | 33W | 220V AC/50Hz | ON-OFF | 52° | 3000 | 镜面 | 白色 |
| ES3SF-33EL-540BWT | 33W | 220V AC/50Hz | ON-OFF | 52° | 4000 | 黑色 | 白色 |
| ES3SF-33EL-540SWT | 33W | 220V AC/50Hz | ON-OFF | 52° | 4000 | 镜面 | 白色 |
