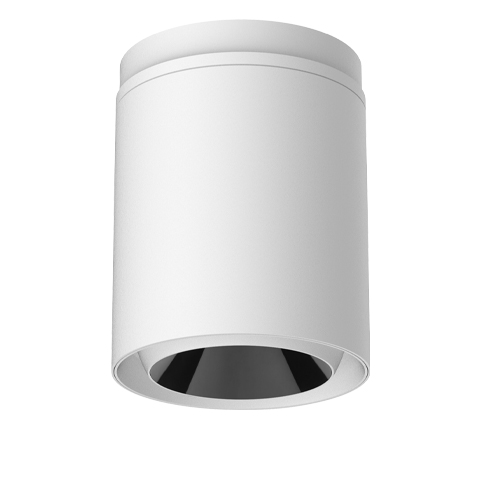

IP65下照调角一体化的明装筒灯，精巧细致的外观和结构设计，卓越的光学性能等都能给用户带来完美的光环境体验，适用于公共高空间的功能性照明。

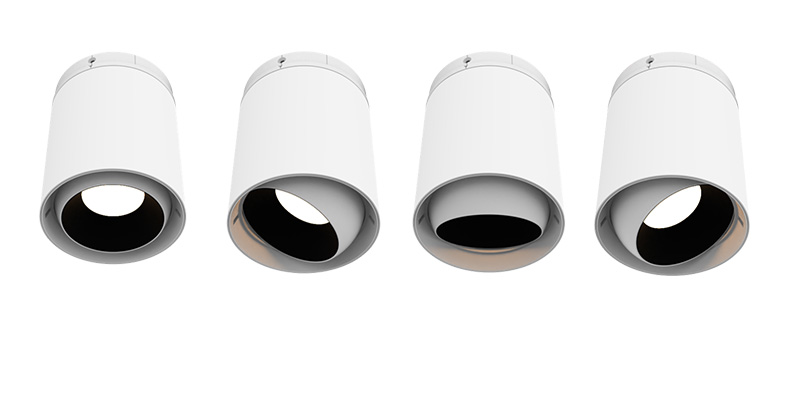

水平调节0-355°，垂直调角±25°

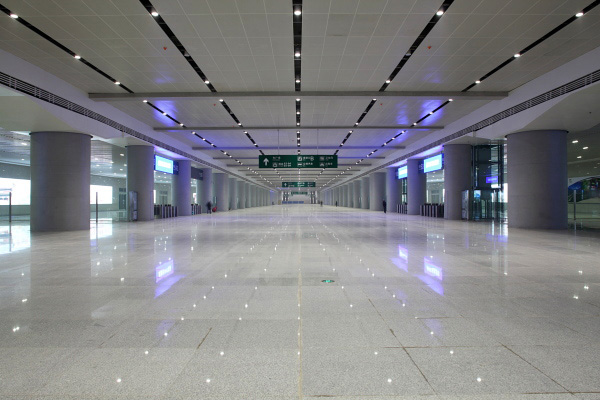

使用场景 一
Model | Comment | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Reflector | Finish |
ES3N | C Ceiling Mounted | 13 13(Max) | COB | 690 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | 1 13° 2 20° 3 30° 4 40° | 30 3000K 40 4000K | B Black S Specular | WT White |
Model | Comment | Power (W) | LEDs (quantity) | Max Lumen (lm) | Control Systems | Beam | CCT | Reflector | Finish |
ES3S | C Ceiling Mounted | 18 18(Max) | COB | 1500 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | 1 19° 2 26° 3 38° 5 52° | 30 3000K 40 4000K | B Black S Specular | WT White |
Model | Comment | Power (W) | LEDs (quantity) | Max Lumen (lm) | Control Systems | Beam | CCT | Reflector | Finish |
ES3M | C Ceiling Mounted | 33 33(Max) | COB | 2500 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | 1 19° 2 26° 3 38° 5 52° | 30 3000K 40 4000K | B Black S Specular | WT White |
示例：ES3MC-33EL-130BWT
| 型号 | 反射器颜色 | 调光控制 | 光源功率（W） | 光束角 | 色温（K） |
|---|---|---|---|---|---|
| ES3MC-33DL-130BWT | 黑色 | 0-10V Dimming | 33W | 19° | 3000 |
| ES3MC-33DL-130SWT | 镜面 | 0-10V Dimming | 33W | 19° | 3000 |
| ES3MC-33DL-140BWT | 黑色 | 0-10V Dimming | 33W | 19° | 4000 |
| ES3MC-33DL-140SWT | 镜面 | 0-10V Dimming | 33W | 19° | 4000 |
| ES3MC-33DL-230BWT | 黑色 | 0-10V Dimming | 33W | 26° | 3000 |
| ES3MC-33DL-230SWT | 镜面 | 0-10V Dimming | 33W | 26° | 3000 |
| ES3MC-33DL-240BWT | 黑色 | 0-10V Dimming | 33W | 26° | 4000 |
| ES3MC-33DL-240SWT | 镜面 | 0-10V Dimming | 33W | 26° | 4000 |
| ES3MC-33DL-330BWT | 黑色 | 0-10V Dimming | 33W | 38° | 3000 |
| ES3MC-33DL-330SWT | 镜面 | 0-10V Dimming | 33W | 38° | 3000 |
| ES3MC-33DL-340BWT | 黑色 | 0-10V Dimming | 33W | 38° | 4000 |
| ES3MC-33DL-340SWT | 镜面 | 0-10V Dimming | 33W | 38° | 4000 |
| ES3MC-33DL-530BWT | 黑色 | 0-10V Dimming | 33W | 52° | 3000 |
| ES3MC-33DL-530SWT | 镜面 | 0-10V Dimming | 33W | 52° | 3000 |
| ES3MC-33DL-540BWT | 黑色 | 0-10V Dimming | 33W | 52° | 4000 |
| ES3MC-33DL-540SWT | 镜面 | 0-10V Dimming | 33W | 52° | 4000 |
| ES3MC-33EL-130BWT | 黑色 | ON-OFF | 33W | 19° | 3000 |
| ES3MC-33EL-130SWT | 镜面 | ON-OFF | 33W | 19° | 3000 |
| ES3MC-33EL-140BWT | 黑色 | ON-OFF | 33W | 19° | 4000 |
| ES3MC-33EL-140SWT | 镜面 | ON-OFF | 33W | 19° | 4000 |
| ES3MC-33EL-230BWT | 黑色 | ON-OFF | 33W | 26° | 3000 |
| ES3MC-33EL-230SWT | 镜面 | ON-OFF | 33W | 26° | 3000 |
| ES3MC-33EL-240BWT | 黑色 | ON-OFF | 33W | 26° | 4000 |
| ES3MC-33EL-240SWT | 镜面 | ON-OFF | 33W | 26° | 4000 |
| ES3MC-33EL-330BWT | 黑色 | ON-OFF | 33W | 38° | 3000 |
| ES3MC-33EL-330SWT | 镜面 | ON-OFF | 33W | 38° | 3000 |
| ES3MC-33EL-340BWT | 黑色 | ON-OFF | 33W | 38° | 4000 |
| ES3MC-33EL-340SWT | 镜面 | ON-OFF | 33W | 38° | 4000 |
| ES3MC-33EL-530BWT | 黑色 | ON-OFF | 33W | 52° | 3000 |
| ES3MC-33EL-530SWT | 镜面 | ON-OFF | 33W | 52° | 3000 |
| ES3MC-33EL-540BWT | 黑色 | ON-OFF | 33W | 52° | 4000 |
| ES3MC-33EL-540SWT | 镜面 | ON-OFF | 33W | 52° | 4000 |
| ES3NC-13DL-130BWT | 黑色 | 0-10V Dimming | 13W | 13° | 3000 |
| ES3NC-13DL-130SWT | 镜面 | 0-10V Dimming | 13W | 13° | 3000 |
| ES3NC-13DL-140BWT | 黑色 | 0-10V Dimming | 13W | 13° | 4000 |
| ES3NC-13DL-140SWT | 镜面 | 0-10V Dimming | 13W | 13° | 4000 |
| ES3NC-13DL-230BWT | 黑色 | 0-10V Dimming | 13W | 20° | 3000 |
| ES3NC-13DL-230SWT | 镜面 | 0-10V Dimming | 13W | 20° | 3000 |
| ES3NC-13DL-240BWT | 黑色 | 0-10V Dimming | 13W | 20° | 4000 |
| ES3NC-13DL-240SWT | 镜面 | 0-10V Dimming | 13W | 20° | 4000 |
| ES3NC-13DL-330BWT | 黑色 | 0-10V Dimming | 13W | 30° | 3000 |
| ES3NC-13DL-330SWT | 镜面 | 0-10V Dimming | 13W | 30° | 3000 |
| ES3NC-13DL-340BWT | 黑色 | 0-10V Dimming | 13W | 30° | 4000 |
| ES3NC-13DL-340SWT | 镜面 | 0-10V Dimming | 13W | 30° | 4000 |
| ES3NC-13DL-430BWT | 黑色 | 0-10V Dimming | 13W | 40° | 3000 |
| ES3NC-13DL-430SWT | 镜面 | 0-10V Dimming | 13W | 40° | 3000 |
| ES3NC-13DL-440BWT | 黑色 | 0-10V Dimming | 13W | 40° | 4000 |
| ES3NC-13DL-440SWT | 镜面 | 0-10V Dimming | 13W | 40° | 4000 |
| ES3NC-13EL-130BWT | 黑色 | ON-OFF | 13W | 13° | 3000 |
| ES3NC-13EL-130SWT | 镜面 | ON-OFF | 13W | 13° | 3000 |
| ES3NC-13EL-140BWT | 黑色 | ON-OFF | 13W | 13° | 4000 |
| ES3NC-13EL-140SWT | 镜面 | ON-OFF | 13W | 13° | 4000 |
| ES3NC-13EL-230BWT | 黑色 | ON-OFF | 13W | 20° | 3000 |
| ES3NC-13EL-230SWT | 镜面 | ON-OFF | 13W | 20° | 3000 |
| ES3NC-13EL-240BWT | 黑色 | ON-OFF | 13W | 20° | 4000 |
| ES3NC-13EL-240SWT | 镜面 | ON-OFF | 13W | 20° | 4000 |
| ES3NC-13EL-330BWT | 黑色 | ON-OFF | 13W | 30° | 3000 |
| ES3NC-13EL-330SWT | 镜面 | ON-OFF | 13W | 30° | 3000 |
| ES3NC-13EL-340BWT | 黑色 | ON-OFF | 13W | 30° | 4000 |
| ES3NC-13EL-340SWT | 镜面 | ON-OFF | 13W | 30° | 4000 |
| ES3NC-13EL-430BWT | 黑色 | ON-OFF | 13W | 40° | 3000 |
| ES3NC-13EL-430SWT | 镜面 | ON-OFF | 13W | 40° | 3000 |
| ES3NC-13EL-440BWT | 黑色 | ON-OFF | 13W | 40° | 4000 |
| ES3NC-13EL-440SWT | 镜面 | ON-OFF | 13W | 40° | 4000 |
| ES3SC-18DL-130BWT | 黑色 | 0-10V Dimming | 18W | 19° | 3000 |
| ES3SC-18DL-130SWT | 镜面 | 0-10V Dimming | 18W | 19° | 3000 |
| ES3SC-18DL-140BWT | 黑色 | 0-10V Dimming | 18W | 19° | 4000 |
| ES3SC-18DL-140SWT | 镜面 | 0-10V Dimming | 18W | 19° | 4000 |
| ES3SC-18DL-230BWT | 黑色 | 0-10V Dimming | 18W | 26° | 3000 |
| ES3SC-18DL-230SWT | 镜面 | 0-10V Dimming | 18W | 26° | 3000 |
| ES3SC-18DL-240BWT | 黑色 | 0-10V Dimming | 18W | 26° | 4000 |
| ES3SC-18DL-240SWT | 镜面 | 0-10V Dimming | 18W | 26° | 4000 |
| ES3SC-18DL-330BWT | 黑色 | 0-10V Dimming | 18W | 38° | 3000 |
| ES3SC-18DL-330SWT | 镜面 | 0-10V Dimming | 18W | 38° | 3000 |
| ES3SC-18DL-340BWT | 黑色 | 0-10V Dimming | 18W | 38° | 4000 |
| ES3SC-18DL-340SWT | 镜面 | 0-10V Dimming | 18W | 38° | 4000 |
| ES3SC-18DL-530BWT | 黑色 | 0-10V Dimming | 18W | 52° | 3000 |
| ES3SC-18DL-530SWT | 镜面 | 0-10V Dimming | 18W | 52° | 3000 |
| ES3SC-18DL-540BWT | 黑色 | 0-10V Dimming | 18W | 52° | 4000 |
| ES3SC-18DL-540SWT | 镜面 | 0-10V Dimming | 18W | 52° | 4000 |
| ES3SC-18EL-130BWT | 黑色 | ON-OFF | 18W | 19° | 3000 |
| ES3SC-18EL-130SWT | 镜面 | ON-OFF | 18W | 19° | 3000 |
| ES3SC-18EL-140BWT | 黑色 | ON-OFF | 18W | 19° | 4000 |
| ES3SC-18EL-140SWT | 镜面 | ON-OFF | 18W | 19° | 4000 |
| ES3SC-18EL-230BWT | 黑色 | ON-OFF | 18W | 26° | 3000 |
| ES3SC-18EL-230SWT | 镜面 | ON-OFF | 18W | 26° | 3000 |
| ES3SC-18EL-240BWT | 黑色 | ON-OFF | 18W | 26° | 4000 |
| ES3SC-18EL-240SWT | 镜面 | ON-OFF | 18W | 26° | 4000 |
| ES3SC-18EL-330BWT | 黑色 | ON-OFF | 18W | 38° | 3000 |
| ES3SC-18EL-330SWT | 镜面 | ON-OFF | 18W | 38° | 3000 |
| ES3SC-18EL-340BWT | 黑色 | ON-OFF | 18W | 38° | 4000 |
| ES3SC-18EL-340SWT | 镜面 | ON-OFF | 18W | 38° | 4000 |
| ES3SC-18EL-530BWT | 黑色 | ON-OFF | 18W | 52° | 3000 |
| ES3SC-18EL-530SWT | 镜面 | ON-OFF | 18W | 52° | 3000 |
| ES3SC-18EL-540BWT | 黑色 | ON-OFF | 18W | 52° | 4000 |
| ES3SC-18EL-540SWT | 镜面 | ON-OFF | 18W | 52° | 4000 |
