适配于WAC VENTRIX 低压轨道系统灯具,多种安装方式，适配多种天花安装。DC48V输入,最大总负载电流可达12.5A。可以任意形状拼接,满足不同的照明应用环境需求，广泛应用于办公,商业等照明空间场所。

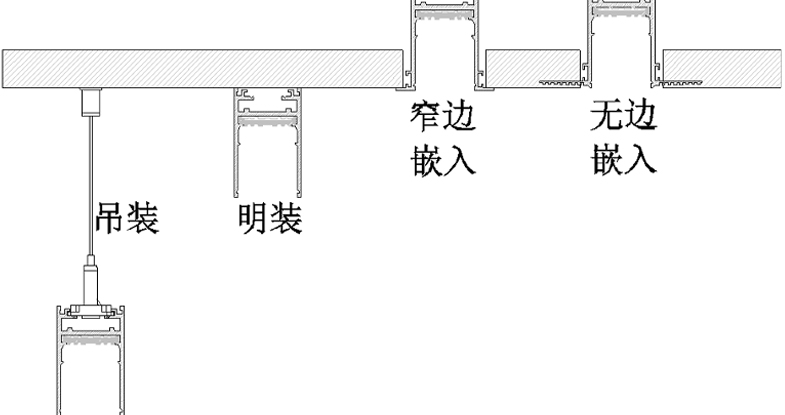

悬吊/吸顶明装/窄边嵌入/无边嵌入
使用场景 一

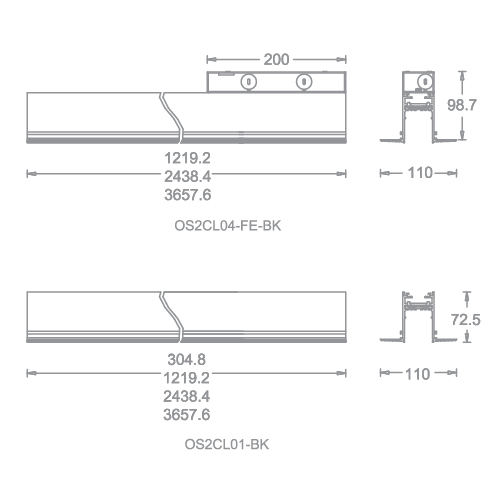

| Model | Length | Comment | Finish |

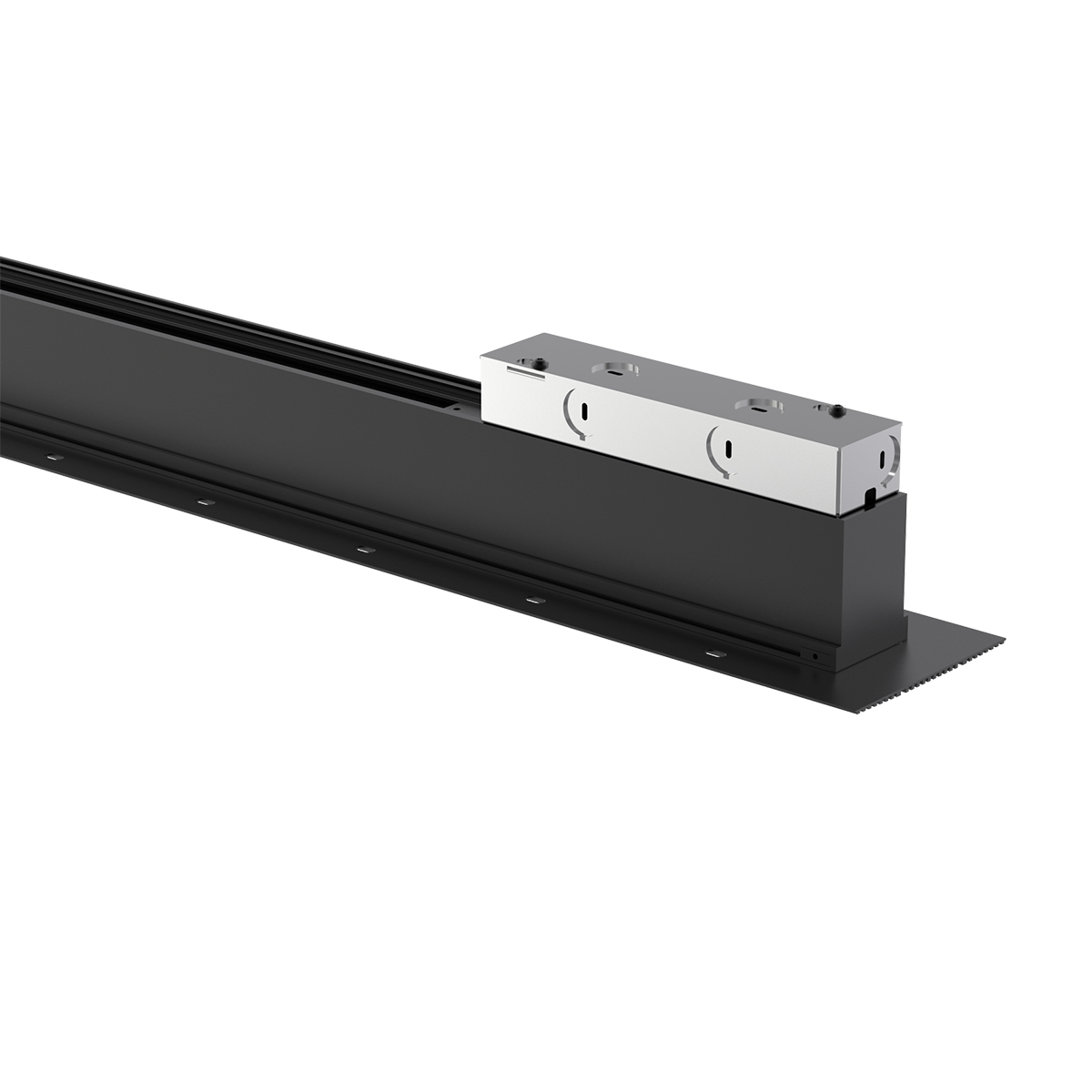

OS2CL04-FE OS2CL08-FE OS2CL12-FE | 04 1.22M Trimless Recessed Feed End 08 2.44M Trimless Recessed Feed End 12 3.66M Trimless Recessed Feed End | Required Power FeedRun Connected Power Unit Required See CPU(sold separately) | BK Black |
| Model | Length | Comment | Finish |

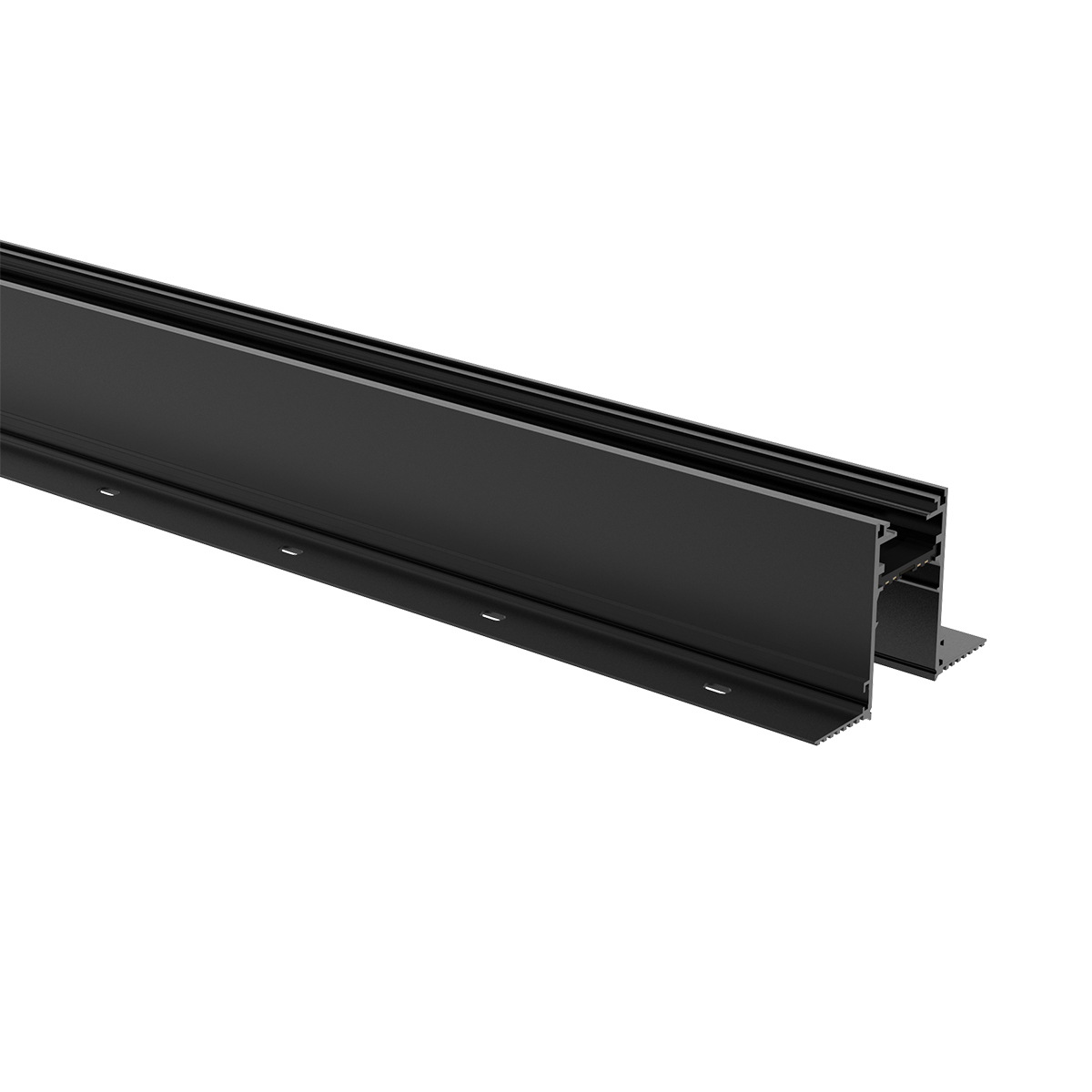

OS2CL01 OS2CL04 OS2CL08 OS2CL12 | 01 0.31M Trimless Recessed Channel 04 1.22M Trimless Recessed Channel 08 2.44M Trimless Recessed Channel 12 3.66M Trimless Recessed Channel | To extend channel runs after feed end | BK Black |
示例：OS2CL01-BK
| 型号 | 主体材质 | 灯具长度/尺寸 | 输入电压/电流 | 表面颜色 |
|---|---|---|---|---|
| OS2CL01-BK | 铝合金灯体 | 310mm | 48V DC | 黑色 |
| OS2CL04-BK | 铝合金灯体 | 1220mm | 48V DC | 黑色 |
| OS2CL04-FE-BK | 铝合金灯体 | 1220mm | 48V DC | 黑色 |
| OS2CL08-BK | 铝合金灯体 | 2440mm | 48V DC | 黑色 |
| OS2CL08-FE-BK | 铝合金灯体 | 2440mm | 48V DC | 黑色 |
| OS2CL12-BK | 铝合金灯体 | 3660mm | 48V DC | 黑色 |
| OS2CL12-FE-BK | 铝合金灯体 | 3660mm | 48V DC | 黑色 |
