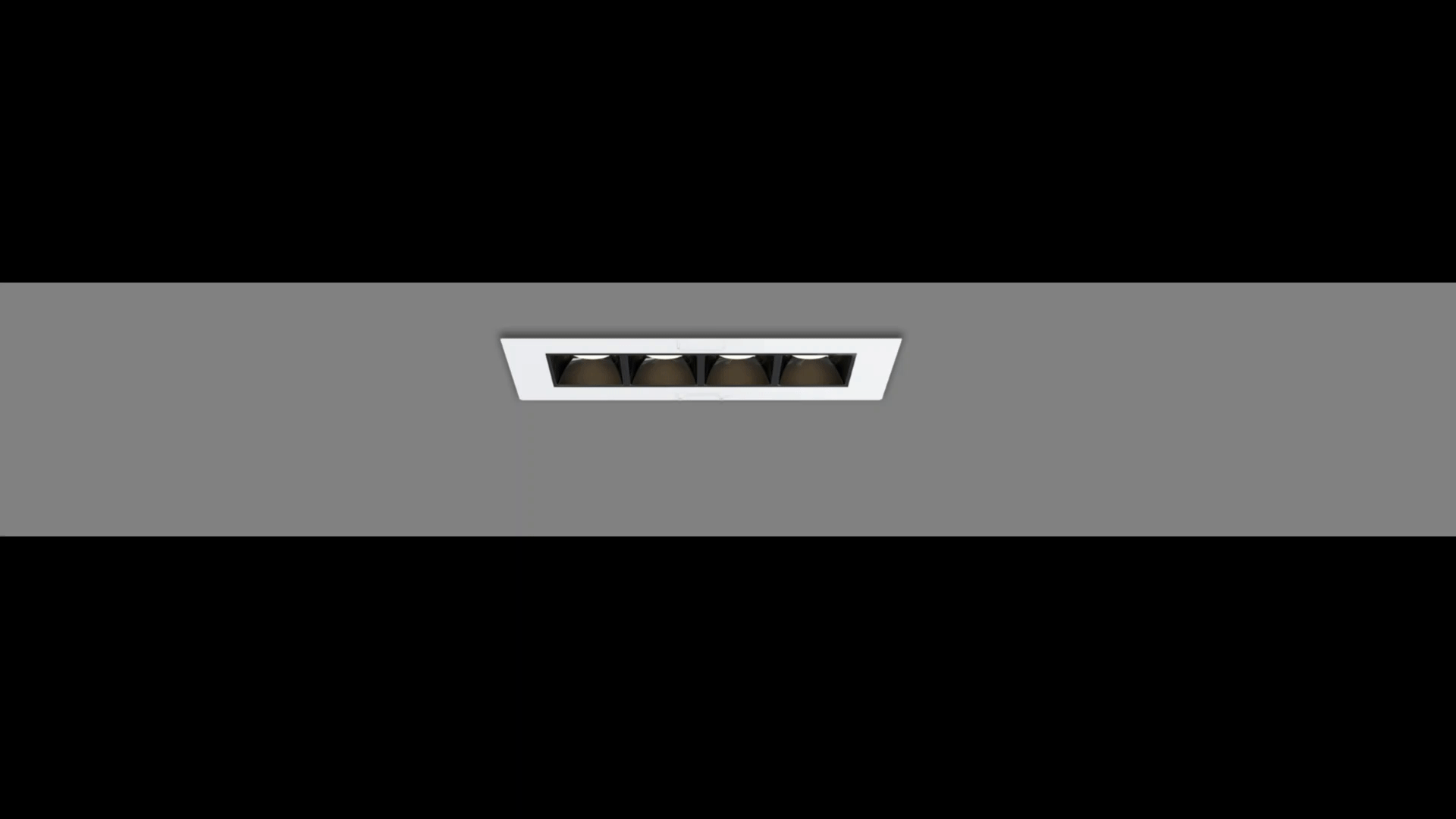

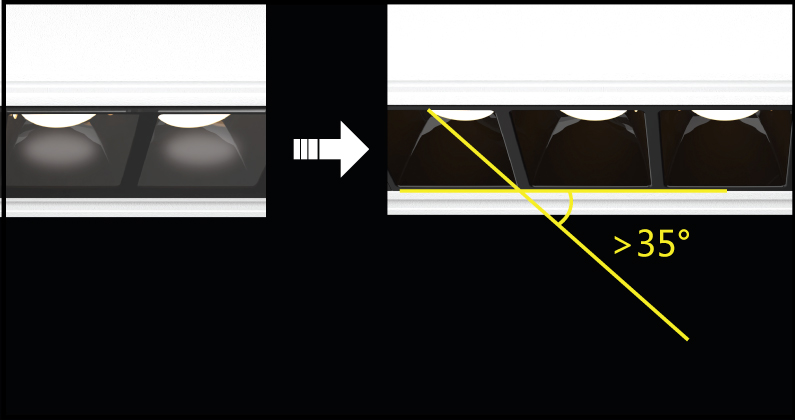

嵌入式线性下照灯具，采用 SUBROSA 隐光技术，具备多种配光，AC220V 输入，适用于户外暗槽安装式应用。
LANNE LINEAR
LANNE LINEAR

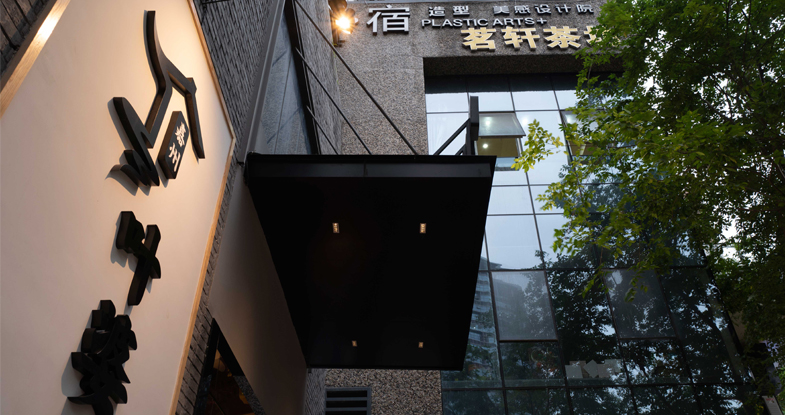

成都“叶婆婆”汇锦广场店

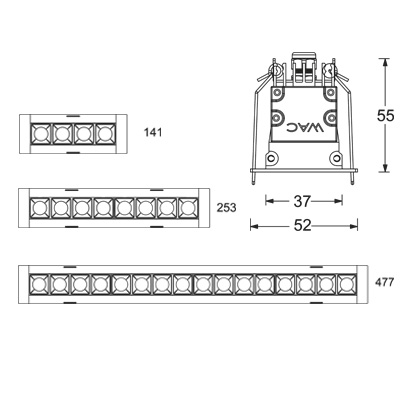

Model | Length(mm) | Comment | LED Power(W) | LEDs(Quantity) | Control System | Beam | CCT | Finish |

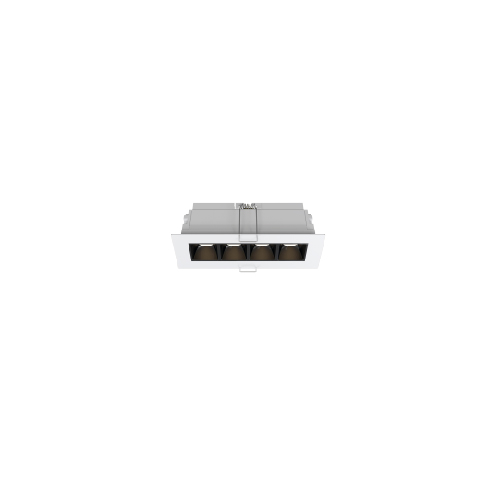

ER3 | 01 141mm | F Frame | 08 8W | 4pcs | EL ON-OFF 220VAC Power Supply | 1 15° 2 26° 3 36° | 30 3000K 40 4000K | WT White |
Model | Length(mm) | Comment | LED Power(W) | LEDs(Quantity) | Control System | Beam | CCT | Finish |

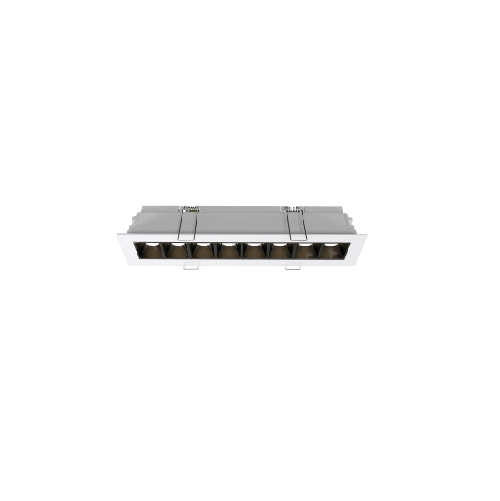

ER3 | 03 253mm | F Frame | 16 16W | 8pcs | EL ON-OFF 220VAC Power Supply | 1 15° 2 26° 3 36° | 30 3000K 40 4000K | WT White |
Model | Length(mm) | Comment | LED Power(W) | LEDs(Quantity) | Control System | Beam | CCT | Finish |

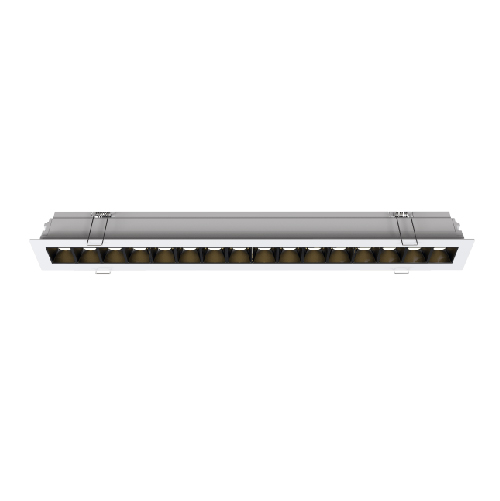

ER3 | 05 477mm | F Frame | 32 32W | 16pcs | EL ON-OFF 220VAC Power Supply | 1 15° 2 26° 3 36° | 30 3000K 40 4000K | WT White |
示例：ER305F-32EL-130WT
| 型号 | 表面颜色 | 输入电压/电流 | 调光控制 | 灯具长度/尺寸 | LED颗粒数（pcs) | 光源功率（W） | 光束角 | 色温（K） |
|---|---|---|---|---|---|---|---|---|
| ER301F-08EL-130WT | 白色 | 220V AC/50Hz | ON-OFF | 141mm | 4 | 8W | 15° | 3000 |
| ER301F-08EL-140WT | 白色 | 220V AC/50Hz | ON-OFF | 141mm | 4 | 8W | 15° | 4000 |
| ER301F-08EL-230WT | 白色 | 220V AC/50Hz | ON-OFF | 141mm | 4 | 8W | 26° | 3000 |
| ER301F-08EL-240WT | 白色 | 220V AC/50Hz | ON-OFF | 141mm | 4 | 8W | 26° | 4000 |
| ER301F-08EL-330WT | 白色 | 220V AC/50Hz | ON-OFF | 141mm | 4 | 8W | 36° | 3000 |
| ER301F-08EL-340WT | 白色 | 220V AC/50Hz | ON-OFF | 141mm | 4 | 8W | 36° | 4000 |
| ER303F-16EL-130WT | 白色 | 220V AC/50Hz | ON-OFF | 253mm | 8 | 16W | 15° | 3000 |
| ER303F-16EL-140WT | 白色 | 220V AC/50Hz | ON-OFF | 253mm | 8 | 16W | 15° | 4000 |
| ER303F-16EL-230WT | 白色 | 220V AC/50Hz | ON-OFF | 253mm | 8 | 16W | 26° | 3000 |
| ER303F-16EL-240WT | 白色 | 220V AC/50Hz | ON-OFF | 253mm | 8 | 16W | 26° | 4000 |
| ER303F-16EL-330WT | 白色 | 220V AC/50Hz | ON-OFF | 253mm | 8 | 16W | 36° | 3000 |
| ER303F-16EL-340WT | 白色 | 220V AC/50Hz | ON-OFF | 253mm | 8 | 16W | 36° | 4000 |
| ER305F-32EL-130WT | 白色 | 220V AC/50Hz | ON-OFF | 477mm | 16 | 32W | 15° | 3000 |
| ER305F-32EL-140WT | 白色 | 220V AC/50Hz | ON-OFF | 477mm | 16 | 32W | 15° | 4000 |
| ER305F-32EL-230WT | 白色 | 220V AC/50Hz | ON-OFF | 477mm | 16 | 32W | 26° | 3000 |
| ER305F-32EL-240WT | 白色 | 220V AC/50Hz | ON-OFF | 477mm | 16 | 32W | 26° | 4000 |
| ER305F-32EL-330WT | 白色 | 220V AC/50Hz | ON-OFF | 477mm | 16 | 32W | 36° | 3000 |
| ER305F-32EL-340WT | 白色 | 220V AC/50Hz | ON-OFF | 477mm | 16 | 32W | 36° | 4000 |
