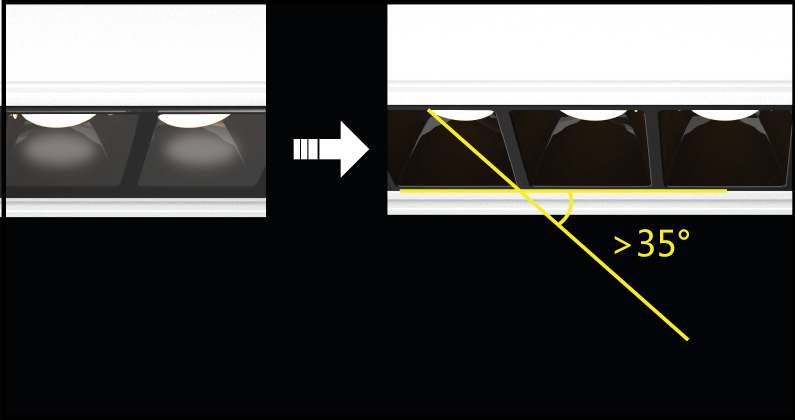

精巧细致的外观和结构设计，在建筑照明中更具有装饰性；独特SUBROSA隐光技术，截光角35°，卓越的光学性能，给用户带来极致的光环境体验。
| Model | Length | LED Power(W) | LEDs(Quantity) | Control Systems | Beam | CCT | Finish |

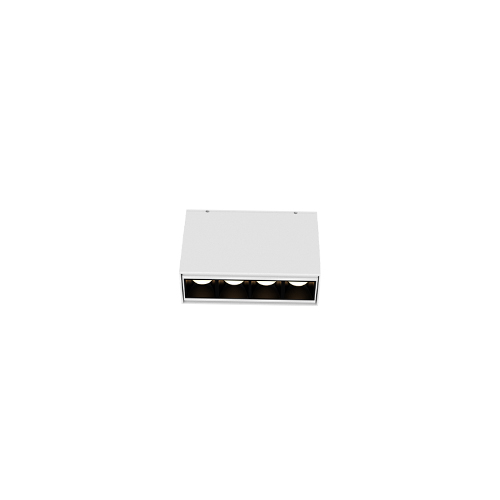

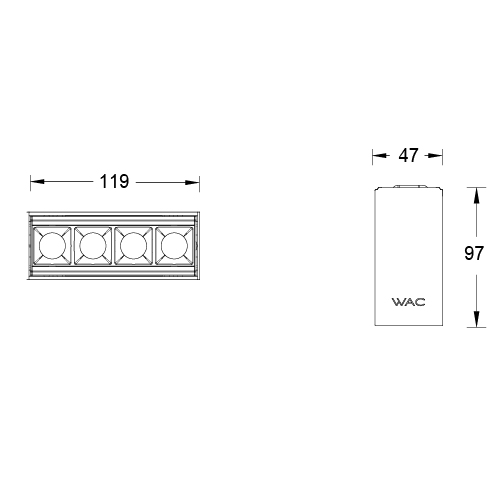

ES301G Slana Linear | 119mm | 08 8(Max) | 4pcs | EL ON-OFF 220V AC Power Supply | 1 15° 2 26° 3 36° | 30 3000K 40 4000K | WT White |
| Model | Length | LED Power(W) | LEDs(Quantity) | Control Systems | Beam | CCT | Finish |

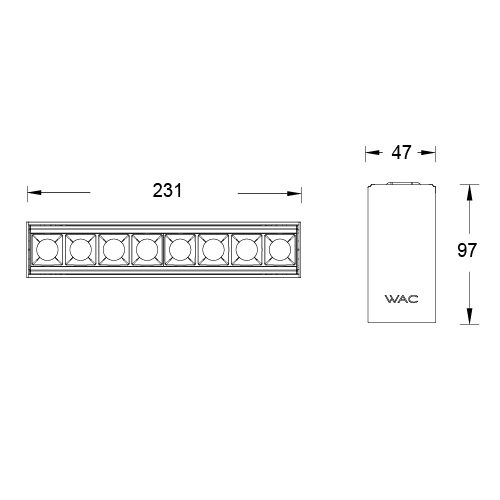

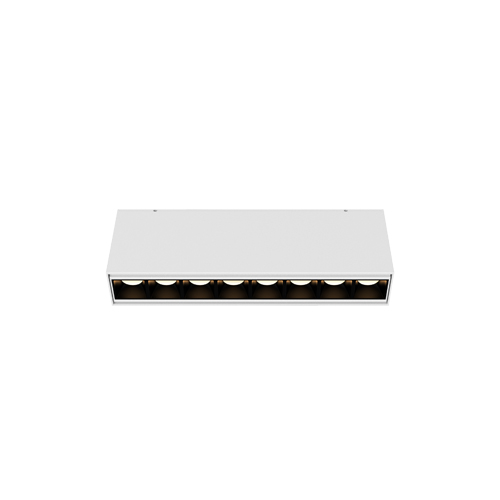

ES303G Slana Linear | 231mm | 16 16(Max) | 8pcs | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | 1 15° 2 26° 3 36° | 30 3000K 40 4000K | WT White |
| Model | Length | LED Power(W) | LEDs(Quantity) | Control Systems | Beam | CCT | Finish |

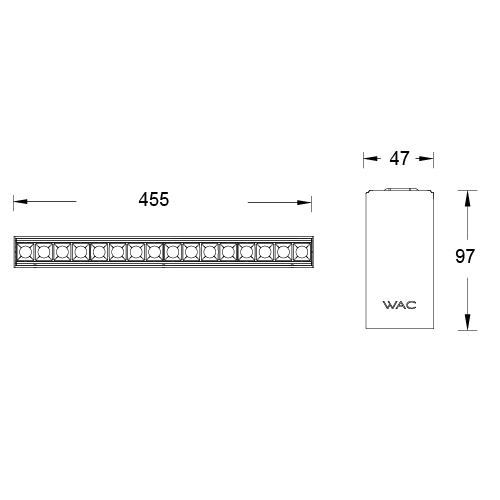

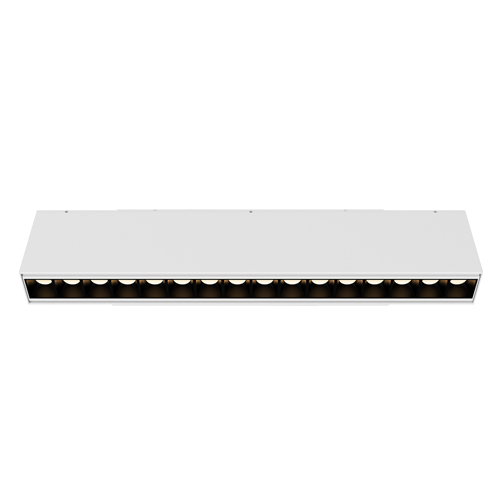

ES305G Slana Linear | 455mm | 32 32(Max) | 16pcs | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | 1 15° 2 26° 3 36° | 30 3000K 40 4000K | WT White |
示例：ES301G-08EL-130WT
| 型号 | 表面颜色 | 输入电压/电流 | 调光控制 | 灯具长度/尺寸 | LED颗粒数（pcs) | 光源功率（W） | 光束角 | 色温（K） |
|---|---|---|---|---|---|---|---|---|
| ES301G-08DL-130WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 119mm | 4 | 8W | 15° | 3000 |
| ES301G-08DL-140WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 119mm | 4 | 8W | 15° | 4000 |
| ES301G-08DL-230WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 119mm | 4 | 8W | 26° | 3000 |
| ES301G-08DL-240WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 119mm | 4 | 8W | 26° | 4000 |
| ES301G-08DL-330WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 119mm | 4 | 8W | 36° | 3000 |
| ES301G-08DL-340WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 119mm | 4 | 8W | 36° | 4000 |
| ES301G-08EL-130WT | 白色 | 220V AC/50Hz | ON-OFF | 119mm | 4 | 8W | 15° | 3000 |
| ES301G-08EL-140WT | 白色 | 220V AC/50Hz | ON-OFF | 119mm | 4 | 8W | 15° | 4000 |
| ES301G-08EL-230WT | 白色 | 220V AC/50Hz | ON-OFF | 119mm | 4 | 8W | 26° | 3000 |
| ES301G-08EL-240WT | 白色 | 220V AC/50Hz | ON-OFF | 119mm | 4 | 8W | 26° | 4000 |
| ES301G-08EL-330WT | 白色 | 220V AC/50Hz | ON-OFF | 119mm | 4 | 8W | 36° | 3000 |
| ES301G-08EL-340WT | 白色 | 220V AC/50Hz | ON-OFF | 119mm | 4 | 8W | 36° | 4000 |
| ES303G-16DL-130WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 231mm | 8 | 16W | 15° | 3000 |
| ES303G-16DL-140WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 231mm | 8 | 16W | 15° | 4000 |
| ES303G-16DL-230WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 231mm | 8 | 16W | 26° | 3000 |
| ES303G-16DL-240WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 231mm | 8 | 16W | 26° | 4000 |
| ES303G-16DL-330WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 231mm | 8 | 16W | 36° | 3000 |
| ES303G-16DL-340WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 231mm | 8 | 16W | 36° | 4000 |
| ES303G-16EL-130WT | 白色 | 220V AC/50Hz | ON-OFF | 231mm | 8 | 16W | 15° | 3000 |
| ES303G-16EL-140WT | 白色 | 220V AC/50Hz | ON-OFF | 231mm | 8 | 16W | 15° | 4000 |
| ES303G-16EL-230WT | 白色 | 220V AC/50Hz | ON-OFF | 231mm | 8 | 16W | 26° | 3000 |
| ES303G-16EL-240WT | 白色 | 220V AC/50Hz | ON-OFF | 231mm | 8 | 16W | 26° | 4000 |
| ES303G-16EL-330WT | 白色 | 220V AC/50Hz | ON-OFF | 231mm | 8 | 16W | 36° | 3000 |
| ES303G-16EL-340WT | 白色 | 220V AC/50Hz | ON-OFF | 231mm | 8 | 16W | 36° | 4000 |
| ES305G-32DL-130WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 455mm | 16 | 32W | 15° | 3000 |
| ES305G-32DL-140WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 455mm | 16 | 32W | 15° | 4000 |
| ES305G-32DL-230WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 455mm | 16 | 32W | 26° | 3000 |
| ES305G-32DL-240WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 455mm | 16 | 32W | 26° | 4000 |
| ES305G-32DL-330WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 455mm | 16 | 32W | 36° | 3000 |
| ES305G-32DL-340WT | 白色 | 220V AC/50Hz | 0-10V Dimming | 455mm | 16 | 32W | 36° | 4000 |
| ES305G-32EL-130WT | 白色 | 220V AC/50Hz | ON-OFF | 455mm | 16 | 32W | 15° | 3000 |
| ES305G-32EL-140WT | 白色 | 220V AC/50Hz | ON-OFF | 455mm | 16 | 32W | 15° | 4000 |
| ES305G-32EL-230WT | 白色 | 220V AC/50Hz | ON-OFF | 455mm | 16 | 32W | 26° | 3000 |
| ES305G-32EL-240WT | 白色 | 220V AC/50Hz | ON-OFF | 455mm | 16 | 32W | 26° | 4000 |
| ES305G-32EL-330WT | 白色 | 220V AC/50Hz | ON-OFF | 455mm | 16 | 32W | 36° | 3000 |
| ES305G-32EL-340WT | 白色 | 220V AC/50Hz | ON-OFF | 455mm | 16 | 32W | 36° | 4000 |
