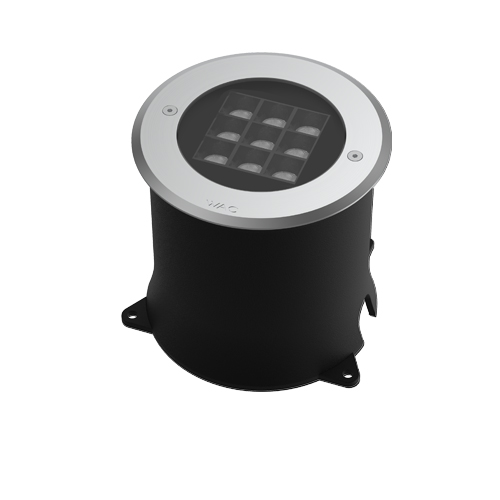

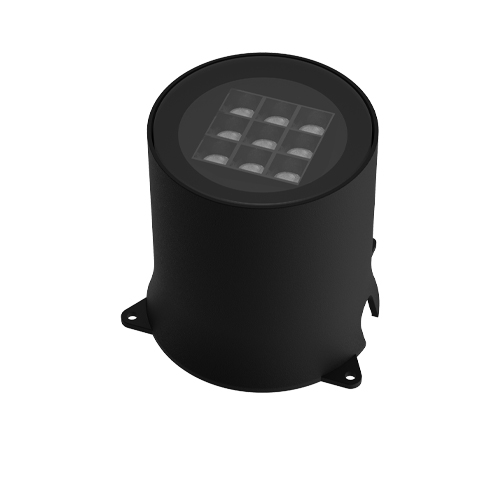

IP67 的防水设计，FUEGO PRO 地埋灯配备了防冷凝的设计，拥有对称以及非对称洗墙掠射和投射配光，独特的可调节装置，可进行现场出光方向调整，调整范围为正负 20°。24V 直流和 220V 交流两种接电版本可供选择。
| Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
| EIR1M | T Frameless | 21 16(Max) | 9 | 1013 | ET ON-OFF 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply EL ON-OFF 220V AC Power Supply | S 7° 1 13° 3 30° 4 40° | 30 3000K 40 4000K | BK Black |
| Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
| EIR1M | F Frame | 21 16(Max) | 9 | 1013 | ET ON-OFF 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply EL ON-OFF 220V AC Power Supply | S 7° 1 13° 3 30° 4 40° | 30 3000K 40 4000K | SS Stainless Steel |
示例: EIR1MT-21EL-S30BK
| 型号 | 光源功率（W） | 输入电压/电流 | 调光控制 | 光束角 | 色温（K） | 表面颜色 |
|---|---|---|---|---|---|---|
| EIR1MF-21EL-130SS | 13.5W | 220V AC/50Hz | ON-OFF | 13° | 3000 | 不锈钢色 |
| EIR1MF-21EL-140SS | 13.5W | 220V AC/50Hz | ON-OFF | 13° | 4000 | 不锈钢色 |
| EIR1MF-21EL-330SS | 13.5W | 220V AC/50Hz | ON-OFF | 30° | 3000 | 不锈钢色 |
| EIR1MF-21EL-340SS | 13.5W | 220V AC/50Hz | ON-OFF | 30° | 4000 | 不锈钢色 |
| EIR1MF-21EL-430SS | 13.5W | 220V AC/50Hz | ON-OFF | 40° | 3000 | 不锈钢色 |
| EIR1MF-21EL-440SS | 13.5W | 220V AC/50Hz | ON-OFF | 40° | 4000 | 不锈钢色 |
| EIR1MF-21EL-S30SS | 13.5W | 220V AC/50Hz | ON-OFF | 7° | 3000 | 不锈钢色 |
| EIR1MF-21EL-S40SS | 13.5W | 220V AC/50Hz | ON-OFF | 7° | 4000 | 不锈钢色 |
| EIR1MF-21ET-130SS | 13.5W | 24V DC | ON-OFF | 13° | 3000 | 不锈钢色 |
| EIR1MF-21ET-140SS | 13.5W | 24V DC | ON-OFF | 13° | 4000 | 不锈钢色 |
| EIR1MF-21ET-330SS | 13.5W | 24V DC | ON-OFF | 30° | 3000 | 不锈钢色 |
| EIR1MF-21ET-340SS | 13.5W | 24V DC | ON-OFF | 30° | 4000 | 不锈钢色 |
| EIR1MF-21ET-430SS | 13.5W | 24V DC | ON-OFF | 40° | 3000 | 不锈钢色 |
| EIR1MF-21ET-440SS | 13.5W | 24V DC | ON-OFF | 40° | 4000 | 不锈钢色 |
| EIR1MF-21ET-S30SS | 13.5W | 24V DC | ON-OFF | 7° | 3000 | 不锈钢色 |
| EIR1MF-21ET-S40SS | 13.5W | 24V DC | ON-OFF | 7° | 4000 | 不锈钢色 |
| EIR1MF-21MT-130SS | 13.5W | 24V DC | DMX512 | 13° | 3000 | 不锈钢色 |
| EIR1MF-21MT-140SS | 13.5W | 24V DC | DMX512 | 13° | 4000 | 不锈钢色 |
| EIR1MF-21MT-330SS | 13.5W | 24V DC | DMX512 | 30° | 3000 | 不锈钢色 |
| EIR1MF-21MT-340SS | 13.5W | 24V DC | DMX512 | 30° | 4000 | 不锈钢色 |
| EIR1MF-21MT-430SS | 13.5W | 24V DC | DMX512 | 40° | 3000 | 不锈钢色 |
| EIR1MF-21MT-440SS | 13.5W | 24V DC | DMX512 | 40° | 4000 | 不锈钢色 |
| EIR1MF-21MT-S30SS | 13.5W | 24V DC | DMX512 | 7° | 3000 | 不锈钢色 |
| EIR1MF-21MT-S40SS | 13.5W | 24V DC | DMX512 | 7° | 4000 | 不锈钢色 |
| EIR1MT-21EL-130BK | 13.5W | 220V AC/50Hz | ON-OFF | 13° | 3000 | 黑色 |
| EIR1MT-21EL-140BK | 13.5W | 220V AC/50Hz | ON-OFF | 13° | 4000 | 黑色 |
| EIR1MT-21EL-330BK | 13.5W | 220V AC/50Hz | ON-OFF | 30° | 3000 | 黑色 |
| EIR1MT-21EL-340BK | 13.5W | 220V AC/50Hz | ON-OFF | 30° | 4000 | 黑色 |
| EIR1MT-21EL-430BK | 13.5W | 220V AC/50Hz | ON-OFF | 40° | 3000 | 黑色 |
| EIR1MT-21EL-440BK | 13.5W | 220V AC/50Hz | ON-OFF | 40° | 4000 | 黑色 |
| EIR1MT-21EL-S30BK | 13.5W | 220V AC/50Hz | ON-OFF | 7° | 3000 | 黑色 |
| EIR1MT-21EL-S40BK | 13.5W | 220V AC/50Hz | ON-OFF | 7° | 4000 | 黑色 |
| EIR1MT-21ET-130BK | 13.5W | 24V DC | ON-OFF | 13° | 3000 | 黑色 |
| EIR1MT-21ET-140BK | 13.5W | 24V DC | ON-OFF | 13° | 4000 | 黑色 |
| EIR1MT-21ET-330BK | 13.5W | 24V DC | ON-OFF | 30° | 3000 | 黑色 |
| EIR1MT-21ET-340BK | 13.5W | 24V DC | ON-OFF | 30° | 4000 | 黑色 |
| EIR1MT-21ET-430BK | 13.5W | 24V DC | ON-OFF | 40° | 3000 | 黑色 |
| EIR1MT-21ET-440BK | 13.5W | 24V DC | ON-OFF | 40° | 4000 | 黑色 |
| EIR1MT-21ET-S30BK | 13.5W | 24V DC | ON-OFF | 7° | 3000 | 黑色 |
| EIR1MT-21ET-S40BK | 13.5W | 24V DC | ON-OFF | 7° | 4000 | 黑色 |
| EIR1MT-21MT-130BK | 13.5W | 24V DC | DMX512 | 13° | 3000 | 黑色 |
| EIR1MT-21MT-140BK | 13.5W | 24V DC | DMX512 | 13° | 4000 | 黑色 |
| EIR1MT-21MT-330BK | 13.5W | 24V DC | DMX512 | 30° | 3000 | 黑色 |
| EIR1MT-21MT-340BK | 13.5W | 24V DC | DMX512 | 30° | 4000 | 黑色 |
| EIR1MT-21MT-430BK | 13.5W | 24V DC | DMX512 | 40° | 3000 | 黑色 |
| EIR1MT-21MT-440BK | 13.5W | 24V DC | DMX512 | 40° | 4000 | 黑色 |
| EIR1MT-21MT-S30BK | 13.5W | 24V DC | DMX512 | 7° | 3000 | 黑色 |
| EIR1MT-21MT-S40BK | 13.5W | 24V DC | DMX512 | 7° | 4000 | 黑色 |
