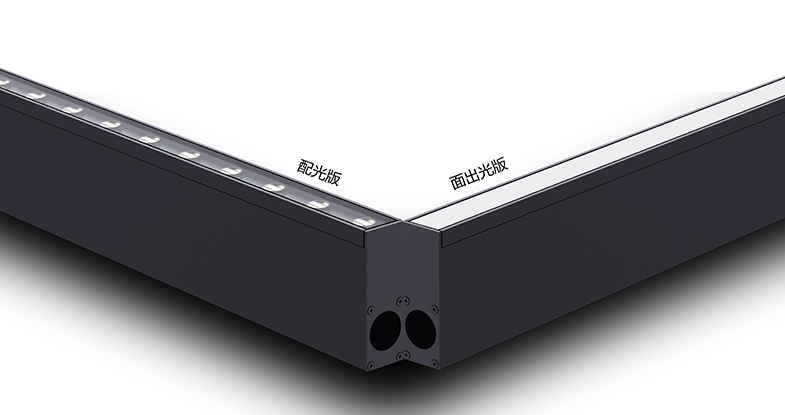

Fuego Pro 系列地埋灯，铝挤型灯身，铝压铸端盖，外形简洁美观完美，嵌入式安装，根据不同应用场所提供多种角度的对称配光和非对称配光，专门配置防眩配件，防眩效果佳，灯具适用于小区，酒店，广场，公园和庭院等等。

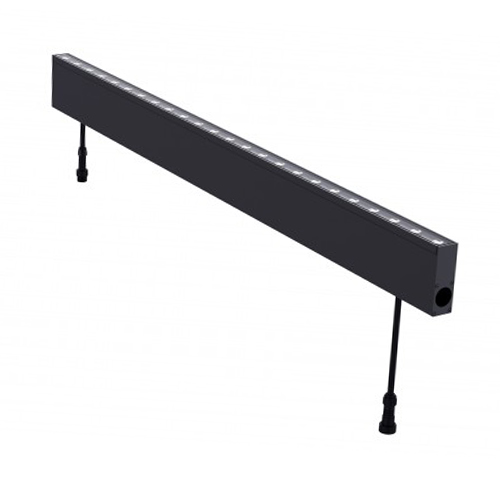

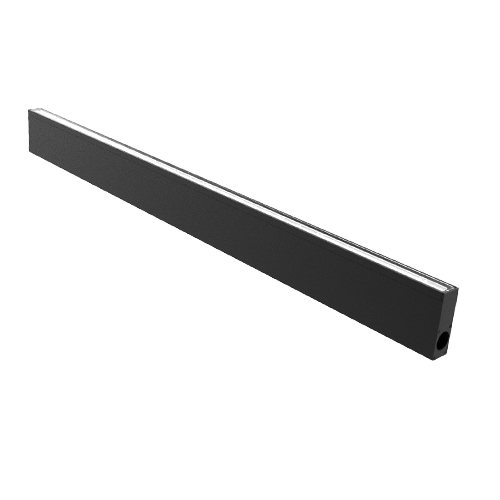

FUEGO Pro Linear EIL2

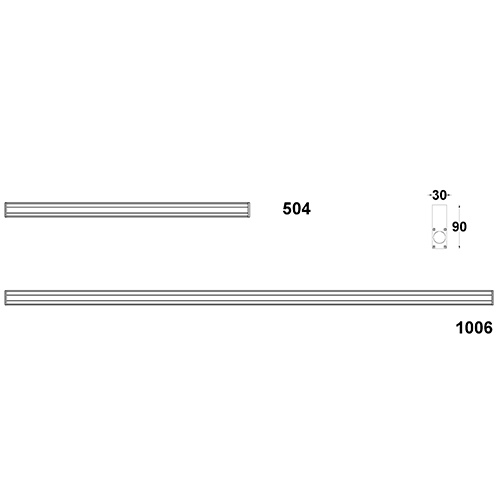

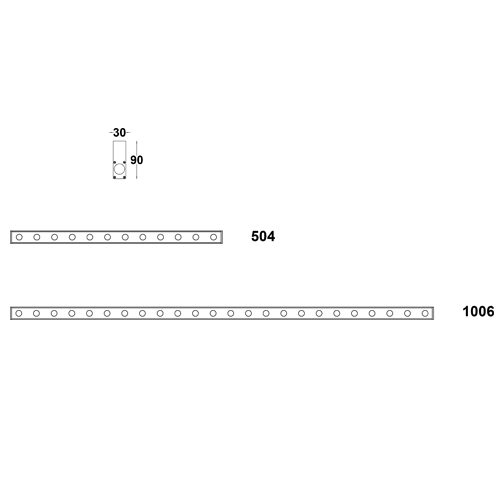

| Model | Length (mm) | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EIL205-12 | 504 | 12(Max) | 12 | 665 | ET ON-OFF 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | 1 10°（一体化透镜） 2 20° 3 30° J 20° x 45° | 27 2700K 30 3000K 40 4000K | BK Black GY Gray |
| Model | Length (mm) | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EIL210-24 | 1006 | 24(Max) | 24 | 1330 | ET ON-OFF 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | 1 10°（一体化透镜） 2 20° 3 30° J 20° x 45° | 27 2700K 30 3000K 40 4000K | BK Black GY Gray |
示例：EIL205-12ET-227BK
| 型号 | 灯具长度/尺寸 | 光源功率（W） | 输入电压/电流 | 调光控制 | 光束角 | 色温（K） | 表面颜色 |
|---|---|---|---|---|---|---|---|
| EIL205-12ET-127BK | 504mm | 10.5W | 24V DC | ON-OFF | 10x60° | 2700 | 黑色 |
| EIL205-12ET-127GY | 504mm | 10.5W | 24V DC | ON-OFF | 10x60° | 2700 | 灰色 |
| EIL205-12ET-130BK | 504mm | 10.5W | 24V DC | ON-OFF | 10x60° | 3000 | 黑色 |
| EIL205-12ET-130GY | 504mm | 10.5W | 24V DC | ON-OFF | 10x60° | 3000 | 灰色 |
| EIL205-12ET-140BK | 504mm | 10.5W | 24V DC | ON-OFF | 10x60° | 4000 | 黑色 |
| EIL205-12ET-140GY | 504mm | 10.5W | 24V DC | ON-OFF | 10x60° | 4000 | 灰色 |
| EIL205-12ET-227BK | 504mm | 10.5W | 24V DC | ON-OFF | 26° | 2700 | 黑色 |
| EIL205-12ET-227GY | 504mm | 10.5W | 24V DC | ON-OFF | 26° | 2700 | 灰色 |
| EIL205-12ET-230BK | 504mm | 10.5W | 24V DC | ON-OFF | 26° | 3000 | 黑色 |
| EIL205-12ET-230GY | 504mm | 10.5W | 24V DC | ON-OFF | 26° | 3000 | 灰色 |
| EIL205-12ET-240BK | 504mm | 10.5W | 24V DC | ON-OFF | 26° | 4000 | 黑色 |
| EIL205-12ET-240GY | 504mm | 10.5W | 24V DC | ON-OFF | 26° | 4000 | 灰色 |
| EIL205-12ET-327BK | 504mm | 10.5W | 24V DC | ON-OFF | 33° | 2700 | 黑色 |
| EIL205-12ET-327GY | 504mm | 10.5W | 24V DC | ON-OFF | 33° | 2700 | 灰色 |
| EIL205-12ET-330BK | 504mm | 10.5W | 24V DC | ON-OFF | 33° | 3000 | 黑色 |
| EIL205-12ET-330GY | 504mm | 10.5W | 24V DC | ON-OFF | 33° | 3000 | 灰色 |
| EIL205-12ET-340BK | 504mm | 10.5W | 24V DC | ON-OFF | 33° | 4000 | 黑色 |
| EIL205-12ET-340GY | 504mm | 10.5W | 24V DC | ON-OFF | 33° | 4000 | 灰色 |
| EIL205-12ET-J27BK | 504mm | 10.5W | 24V DC | ON-OFF | 20x45° | 2700 | 黑色 |
| EIL205-12ET-J27GY | 504mm | 10.5W | 24V DC | ON-OFF | 20x45° | 2700 | 灰色 |
| EIL205-12ET-J30BK | 504mm | 10.5W | 24V DC | ON-OFF | 20x45° | 3000 | 黑色 |
| EIL205-12ET-J30GY | 504mm | 10.5W | 24V DC | ON-OFF | 20x45° | 3000 | 灰色 |
| EIL205-12ET-J40BK | 504mm | 10.5W | 24V DC | ON-OFF | 20x45° | 4000 | 黑色 |
| EIL205-12ET-J40GY | 504mm | 10.5W | 24V DC | ON-OFF | 20x45° | 4000 | 灰色 |
| EIL205-12MT-127BK | 504mm | 10.5W | 24V DC | DMX512 Dimming | 10x60° | 2700 | 黑色 |
| EIL205-12MT-127GY | 504mm | 10.5W | 24V DC | DMX512 Dimming | 10x60° | 2700 | 灰色 |
| EIL205-12MT-130BK | 504mm | 10.5W | 24V DC | DMX512 Dimming | 10x60° | 3000 | 黑色 |
| EIL205-12MT-130GY | 504mm | 10.5W | 24V DC | DMX512 Dimming | 10x60° | 3000 | 灰色 |
| EIL205-12MT-140BK | 504mm | 10.5W | 24V DC | DMX512 Dimming | 10x60° | 4000 | 黑色 |
| EIL205-12MT-140GY | 504mm | 10.5W | 24V DC | DMX512 Dimming | 10x60° | 4000 | 灰色 |
| EIL205-12MT-227BK | 504mm | 10.5W | 24V DC | DMX512 Dimming | 26° | 2700 | 黑色 |
| EIL205-12MT-227GY | 504mm | 10.5W | 24V DC | DMX512 Dimming | 26° | 2700 | 灰色 |
| EIL205-12MT-230BK | 504mm | 10.5W | 24V DC | DMX512 Dimming | 26° | 3000 | 黑色 |
| EIL205-12MT-230GY | 504mm | 10.5W | 24V DC | DMX512 Dimming | 26° | 3000 | 灰色 |
| EIL205-12MT-240BK | 504mm | 10.5W | 24V DC | DMX512 Dimming | 26° | 4000 | 黑色 |
| EIL205-12MT-240GY | 504mm | 10.5W | 24V DC | DMX512 Dimming | 26° | 4000 | 灰色 |
| EIL205-12MT-327BK | 504mm | 10.5W | 24V DC | DMX512 Dimming | 33° | 2700 | 黑色 |
| EIL205-12MT-327GY | 504mm | 10.5W | 24V DC | DMX512 Dimming | 33° | 2700 | 灰色 |
| EIL205-12MT-330BK | 504mm | 10.5W | 24V DC | DMX512 Dimming | 33° | 3000 | 黑色 |
| EIL205-12MT-330GY | 504mm | 10.5W | 24V DC | DMX512 Dimming | 33° | 3000 | 灰色 |
| EIL205-12MT-340BK | 504mm | 10.5W | 24V DC | DMX512 Dimming | 33° | 4000 | 黑色 |
| EIL205-12MT-340GY | 504mm | 10.5W | 24V DC | DMX512 Dimming | 33° | 4000 | 灰色 |
| EIL205-12MT-J27BK | 504mm | 10.5W | 24V DC | DMX512 Dimming | 20x45° | 2700 | 黑色 |
| EIL205-12MT-J27GY | 504mm | 10.5W | 24V DC | DMX512 Dimming | 20x45° | 2700 | 灰色 |
| EIL205-12MT-J30BK | 504mm | 10.5W | 24V DC | DMX512 Dimming | 20x45° | 3000 | 黑色 |
| EIL205-12MT-J30GY | 504mm | 10.5W | 24V DC | DMX512 Dimming | 20x45° | 3000 | 灰色 |
| EIL205-12MT-J40BK | 504mm | 10.5W | 24V DC | DMX512 Dimming | 20x45° | 4000 | 黑色 |
| EIL205-12MT-J40GY | 504mm | 10.5W | 24V DC | DMX512 Dimming | 20x45° | 4000 | 灰色 |
| EIL210-24ET-127BK | 1006mm | 21W | 24V DC | ON-OFF | 10x60° | 2700 | 黑色 |
| EIL210-24ET-127GY | 1006mm | 21W | 24V DC | ON-OFF | 10x60° | 2700 | 灰色 |
| EIL210-24ET-130BK | 1006mm | 21W | 24V DC | ON-OFF | 10x60° | 3000 | 黑色 |
| EIL210-24ET-130GY | 1006mm | 21W | 24V DC | ON-OFF | 10x60° | 3000 | 灰色 |
| EIL210-24ET-140BK | 1006mm | 21W | 24V DC | ON-OFF | 10x60° | 4000 | 黑色 |
| EIL210-24ET-140GY | 1006mm | 21W | 24V DC | ON-OFF | 10x60° | 4000 | 灰色 |
| EIL210-24ET-227BK | 1006mm | 21W | 24V DC | ON-OFF | 26° | 2700 | 黑色 |
| EIL210-24ET-227GY | 1006mm | 21W | 24V DC | ON-OFF | 26° | 2700 | 灰色 |
| EIL210-24ET-230BK | 1006mm | 21W | 24V DC | ON-OFF | 26° | 3000 | 黑色 |
| EIL210-24ET-230GY | 1006mm | 21W | 24V DC | ON-OFF | 26° | 3000 | 灰色 |
| EIL210-24ET-240BK | 1006mm | 21W | 24V DC | ON-OFF | 26° | 4000 | 黑色 |
| EIL210-24ET-240GY | 1006mm | 21W | 24V DC | ON-OFF | 26° | 4000 | 灰色 |
| EIL210-24ET-327BK | 1006mm | 21W | 24V DC | ON-OFF | 33° | 2700 | 黑色 |
| EIL210-24ET-327GY | 1006mm | 21W | 24V DC | ON-OFF | 33° | 2700 | 灰色 |
| EIL210-24ET-330BK | 1006mm | 21W | 24V DC | ON-OFF | 33° | 3000 | 黑色 |
| EIL210-24ET-330GY | 1006mm | 21W | 24V DC | ON-OFF | 33° | 3000 | 灰色 |
| EIL210-24ET-340BK | 1006mm | 21W | 24V DC | ON-OFF | 33° | 4000 | 黑色 |
| EIL210-24ET-340GY | 1006mm | 21W | 24V DC | ON-OFF | 33° | 4000 | 灰色 |
| EIL210-24ET-J27BK | 1006mm | 21W | 24V DC | ON-OFF | 20x45° | 2700 | 黑色 |
| EIL210-24ET-J27GY | 1006mm | 21W | 24V DC | ON-OFF | 20x45° | 2700 | 灰色 |
| EIL210-24ET-J30BK | 1006mm | 21W | 24V DC | ON-OFF | 20x45° | 3000 | 黑色 |
| EIL210-24ET-J30GY | 1006mm | 21W | 24V DC | ON-OFF | 20x45° | 3000 | 灰色 |
| EIL210-24ET-J40BK | 1006mm | 21W | 24V DC | ON-OFF | 20x45° | 4000 | 黑色 |
| EIL210-24ET-J40GY | 1006mm | 21W | 24V DC | ON-OFF | 20x45° | 4000 | 灰色 |
| EIL210-24MT-127BK | 1006mm | 21W | 24V DC | DMX512 Dimming | 10x60° | 2700 | 黑色 |
| EIL210-24MT-127GY | 1006mm | 21W | 24V DC | DMX512 Dimming | 10x60° | 2700 | 灰色 |
| EIL210-24MT-130BK | 1006mm | 21W | 24V DC | DMX512 Dimming | 10x60° | 3000 | 黑色 |
| EIL210-24MT-130GY | 1006mm | 21W | 24V DC | DMX512 Dimming | 10x60° | 3000 | 灰色 |
| EIL210-24MT-140BK | 1006mm | 21W | 24V DC | DMX512 Dimming | 10x60° | 4000 | 黑色 |
| EIL210-24MT-140GY | 1006mm | 21W | 24V DC | DMX512 Dimming | 10x60° | 4000 | 灰色 |
| EIL210-24MT-227BK | 1006mm | 21W | 24V DC | DMX512 Dimming | 26° | 2700 | 黑色 |
| EIL210-24MT-227GY | 1006mm | 21W | 24V DC | DMX512 Dimming | 26° | 2700 | 灰色 |
| EIL210-24MT-230BK | 1006mm | 21W | 24V DC | DMX512 Dimming | 26° | 3000 | 黑色 |
| EIL210-24MT-230GY | 1006mm | 21W | 24V DC | DMX512 Dimming | 26° | 3000 | 灰色 |
| EIL210-24MT-240BK | 1006mm | 21W | 24V DC | DMX512 Dimming | 26° | 4000 | 黑色 |
| EIL210-24MT-240GY | 1006mm | 21W | 24V DC | DMX512 Dimming | 26° | 4000 | 灰色 |
| EIL210-24MT-327BK | 1006mm | 21W | 24V DC | DMX512 Dimming | 33° | 2700 | 黑色 |
| EIL210-24MT-327GY | 1006mm | 21W | 24V DC | DMX512 Dimming | 33° | 2700 | 灰色 |
| EIL210-24MT-330BK | 1006mm | 21W | 24V DC | DMX512 Dimming | 33° | 3000 | 黑色 |
| EIL210-24MT-330GY | 1006mm | 21W | 24V DC | DMX512 Dimming | 33° | 3000 | 灰色 |
| EIL210-24MT-340BK | 1006mm | 21W | 24V DC | DMX512 Dimming | 33° | 4000 | 黑色 |
| EIL210-24MT-340GY | 1006mm | 21W | 24V DC | DMX512 Dimming | 33° | 4000 | 灰色 |
| EIL210-24MT-J27BK | 1006mm | 21W | 24V DC | DMX512 Dimming | 20x45° | 2700 | 黑色 |
| EIL210-24MT-J27GY | 1006mm | 21W | 24V DC | DMX512 Dimming | 20x45° | 2700 | 灰色 |
| EIL210-24MT-J30BK | 1006mm | 21W | 24V DC | DMX512 Dimming | 20x45° | 3000 | 黑色 |
| EIL210-24MT-J30GY | 1006mm | 21W | 24V DC | DMX512 Dimming | 20x45° | 3000 | 灰色 |
| EIL210-24MT-J40BK | 1006mm | 21W | 24V DC | DMX512 Dimming | 20x45° | 4000 | 黑色 |
| EIL210-24MT-J40GY | 1006mm | 21W | 24V DC | DMX512 Dimming | 20x45° | 4000 | 灰色 |
