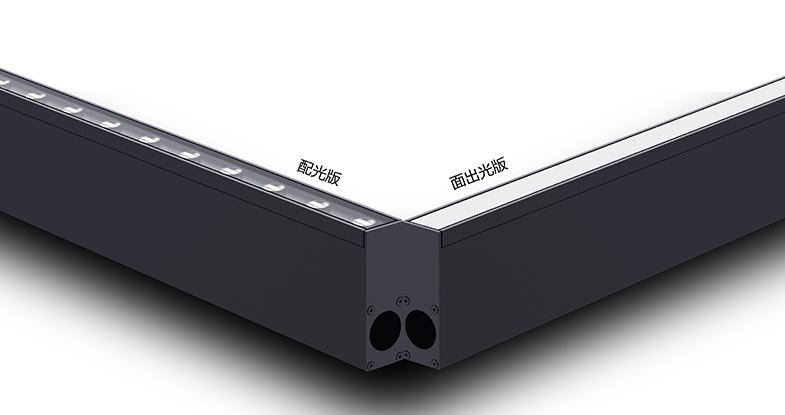

Fuego Pro 系列地埋灯，完美嵌入安装，出光一致性佳，面出光，无可见光源颗粒感，灯具适用于小区，酒店，广场，公园和庭院，适合局部、装饰照明。

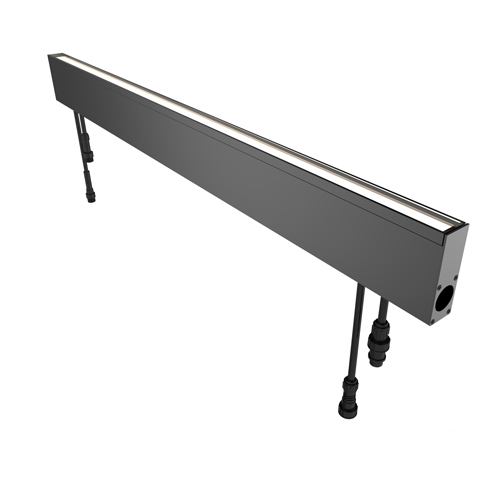

FUEGO Pro Linear EIL2

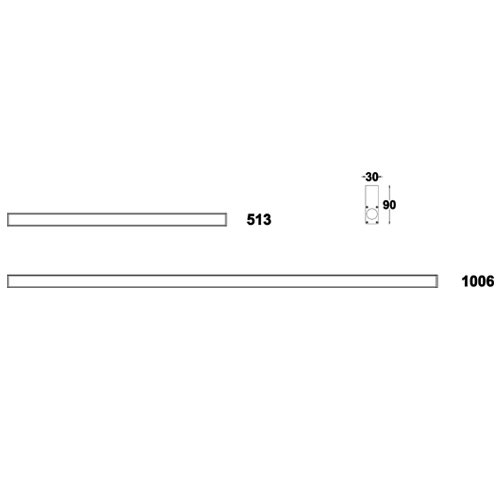

| Model | Length (mm) | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller | CCT | Finish |
EIL205-06 | 513 | 6(Max) | 60 | 357 | ET ON-OFF 24V DC Power Supply | F Frosted | 0 W/O Phase | 27 2700K 30 3000K 40 4000K | BK Black GY Gray |
| Model | Length (mm) | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller | CCT | Finish |
EIL205-06 | 513 | 6(Max) | 60 | 357 | MT DMX512 Dimming 24V DC Power Supply | F Frosted | 1 1 Phase 4 4 Phase | 27 2700K 30 3000K 40 4000K FC RGB | BK Black GY Gray |
| Model | Length (mm) | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller | CCT | Finish |
EIL210-12 | 1006 | 12(Max) | 120 | 764 | ET ON-OFF 24V DC Power Supply | F Frosted | 0 W/O Phase | 27 2700K 30 3000K 40 4000K | BK Black GY Gray |
| Model | Length (mm) | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller | CCT | Finish |
EIL210-12 | 1006 | 12(Max) | 120 | 764 | MT DMX512 Dimming 24V DC Power Supply | F Frosted | 1 1 Phase 4 4 Phase | 27 2700K 30 3000K 40 4000K FC RGB | BK Black GY Gray |
示例：EIL205-06MT-F127BK
| 型号 | 灯具长度/尺寸 | 光源功率（W） | 输入电压/电流 | 调光控制 | 光束角 | 色温（K） | 表面颜色 |
|---|---|---|---|---|---|---|---|
| EIL205-06ET-F027BK | 513mm | 5W | 24V DC | ON-OFF | 面发光 | 2700 | 黑色 |
| EIL205-06ET-F027GY | 513mm | 5W | 24V DC | ON-OFF | 面发光 | 2700 | 灰色 |
| EIL205-06ET-F030BK | 513mm | 5W | 24V DC | ON-OFF | 面发光 | 3000 | 黑色 |
| EIL205-06ET-F030GY | 513mm | 5W | 24V DC | ON-OFF | 面发光 | 3000 | 灰色 |
| EIL205-06ET-F040BK | 513mm | 5W | 24V DC | ON-OFF | 面发光 | 4000 | 黑色 |
| EIL205-06ET-F040GY | 513mm | 5W | 24V DC | ON-OFF | 面发光 | 4000 | 灰色 |
| EIL205-06MT-F127BK | 513mm | 5W | 24V DC | DMX512 Dimming | 面发光 | 2700 | 黑色 |
| EIL205-06MT-F127GY | 513mm | 5W | 24V DC | DMX512 Dimming | 面发光 | 2700 | 灰色 |
| EIL205-06MT-F130BK | 513mm | 5W | 24V DC | DMX512 Dimming | 面发光 | 3000 | 黑色 |
| EIL205-06MT-F130GY | 513mm | 5W | 24V DC | DMX512 Dimming | 面发光 | 3000 | 灰色 |
| EIL205-06MT-F140BK | 513mm | 5W | 24V DC | DMX512 Dimming | 面发光 | 4000 | 黑色 |
| EIL205-06MT-F140GY | 513mm | 5W | 24V DC | DMX512 Dimming | 面发光 | 4000 | 灰色 |
| EIL205-06MT-F1FCBK | 513mm | 5W | 24V DC | DMX512 Dimming | 面发光 | RGB | 黑色 |
| EIL205-06MT-F1FCGY | 513mm | 5W | 24V DC | DMX512 Dimming | 面发光 | RGB | 灰色 |
| EIL205-06MT-F427BK | 513mm | 5W | 24V DC | DMX512 Dimming | 面发光 | 2700 | 黑色 |
| EIL205-06MT-F427GY | 513mm | 5W | 24V DC | DMX512 Dimming | 面发光 | 2700 | 灰色 |
| EIL205-06MT-F430BK | 513mm | 5W | 24V DC | DMX512 Dimming | 面发光 | 3000 | 黑色 |
| EIL205-06MT-F430GY | 513mm | 5W | 24V DC | DMX512 Dimming | 面发光 | 3000 | 灰色 |
| EIL205-06MT-F440BK | 513mm | 5W | 24V DC | DMX512 Dimming | 面发光 | 4000 | 黑色 |
| EIL205-06MT-F440GY | 513mm | 5W | 24V DC | DMX512 Dimming | 面发光 | 4000 | 灰色 |
| EIL205-06MT-F4FCBK | 513mm | 5W | 24V DC | DMX512 Dimming | 面发光 | RGB | 黑色 |
| EIL205-06MT-F4FCGY | 513mm | 5W | 24V DC | DMX512 Dimming | 面发光 | RGB | 灰色 |
| EIL210-12ET-F027BK | 1006mm | 10W | 24V DC | ON-OFF | 面发光 | 2700 | 黑色 |
| EIL210-12ET-F027GY | 1006mm | 10W | 24V DC | ON-OFF | 面发光 | 2700 | 灰色 |
| EIL210-12ET-F030BK | 1006mm | 10W | 24V DC | ON-OFF | 面发光 | 3000 | 黑色 |
| EIL210-12ET-F030GY | 1006mm | 10W | 24V DC | ON-OFF | 面发光 | 3000 | 灰色 |
| EIL210-12ET-F040BK | 1006mm | 10W | 24V DC | ON-OFF | 面发光 | 4000 | 黑色 |
| EIL210-12ET-F040GY | 1006mm | 10W | 24V DC | ON-OFF | 面发光 | 4000 | 灰色 |
| EIL210-12MT-F127BK | 1006mm | 10W | 24V DC | DMX512 Dimming | 面发光 | 2700 | 黑色 |
| EIL210-12MT-F127GY | 1006mm | 10W | 24V DC | DMX512 Dimming | 面发光 | 2700 | 灰色 |
| EIL210-12MT-F130BK | 1006mm | 10W | 24V DC | DMX512 Dimming | 面发光 | 3000 | 黑色 |
| EIL210-12MT-F130GY | 1006mm | 10W | 24V DC | DMX512 Dimming | 面发光 | 3000 | 灰色 |
| EIL210-12MT-F140BK | 1006mm | 10W | 24V DC | DMX512 Dimming | 面发光 | 4000 | 黑色 |
| EIL210-12MT-F140GY | 1006mm | 10W | 24V DC | DMX512 Dimming | 面发光 | 4000 | 灰色 |
| EIL210-12MT-F1FCBK | 1006mm | 10W | 24V DC | DMX512 Dimming | 面发光 | RGB | 黑色 |
| EIL210-12MT-F1FCGY | 1006mm | 10W | 24V DC | DMX512 Dimming | 面发光 | RGB | 灰色 |
| EIL210-12MT-F427BK | 1006mm | 10W | 24V DC | DMX512 Dimming | 面发光 | 2700 | 黑色 |
| EIL210-12MT-F427GY | 1006mm | 10W | 24V DC | DMX512 Dimming | 面发光 | 2700 | 灰色 |
| EIL210-12MT-F430BK | 1006mm | 10W | 24V DC | DMX512 Dimming | 面发光 | 3000 | 黑色 |
| EIL210-12MT-F430GY | 1006mm | 10W | 24V DC | DMX512 Dimming | 面发光 | 3000 | 灰色 |
| EIL210-12MT-F440BK | 1006mm | 10W | 24V DC | DMX512 Dimming | 面发光 | 4000 | 黑色 |
| EIL210-12MT-F440GY | 1006mm | 10W | 24V DC | DMX512 Dimming | 面发光 | 4000 | 灰色 |
| EIL210-12MT-F4FCBK | 1006mm | 10W | 24V DC | DMX512 Dimming | 面发光 | RGB | 黑色 |
| EIL210-12MT-F4FCGY | 1006mm | 10W | 24V DC | DMX512 Dimming | 面发光 | RGB | 灰色 |
