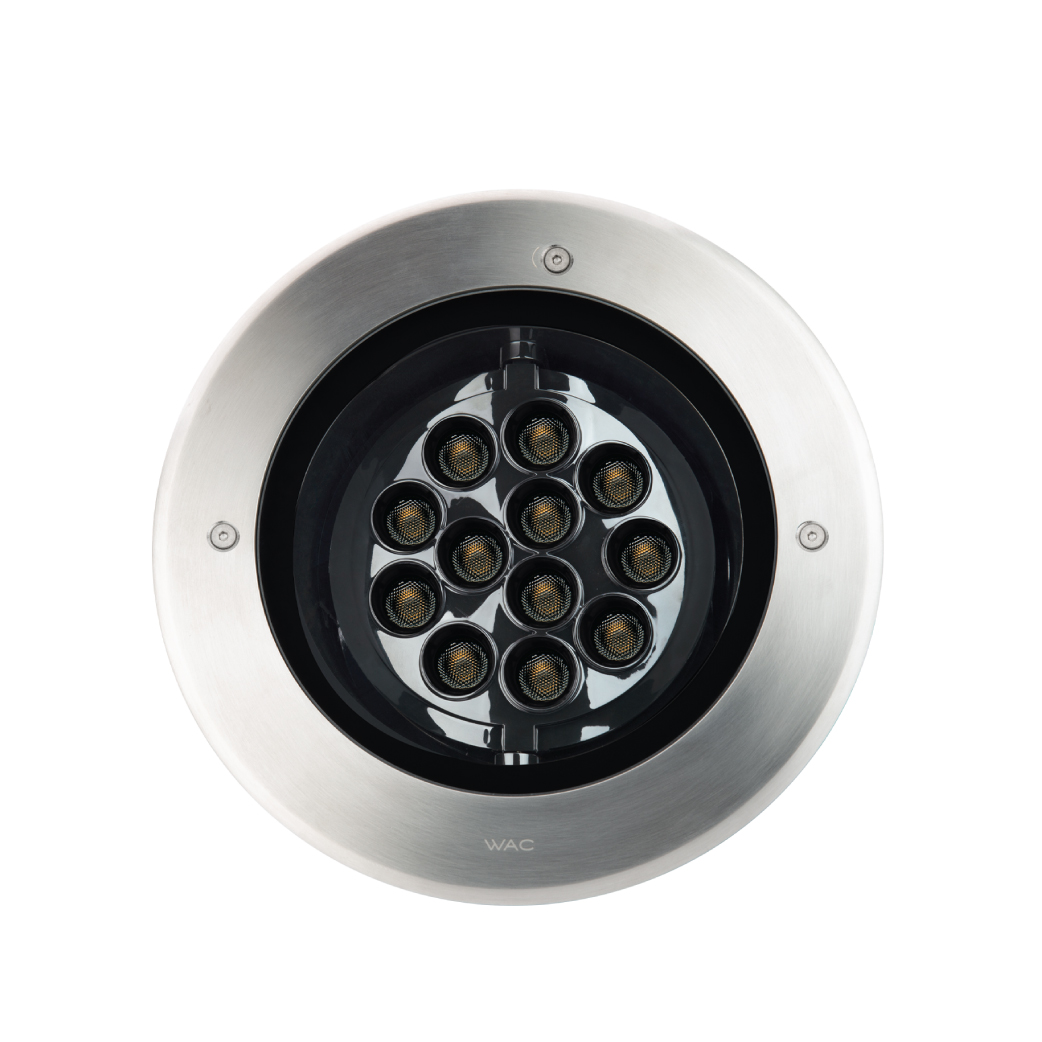

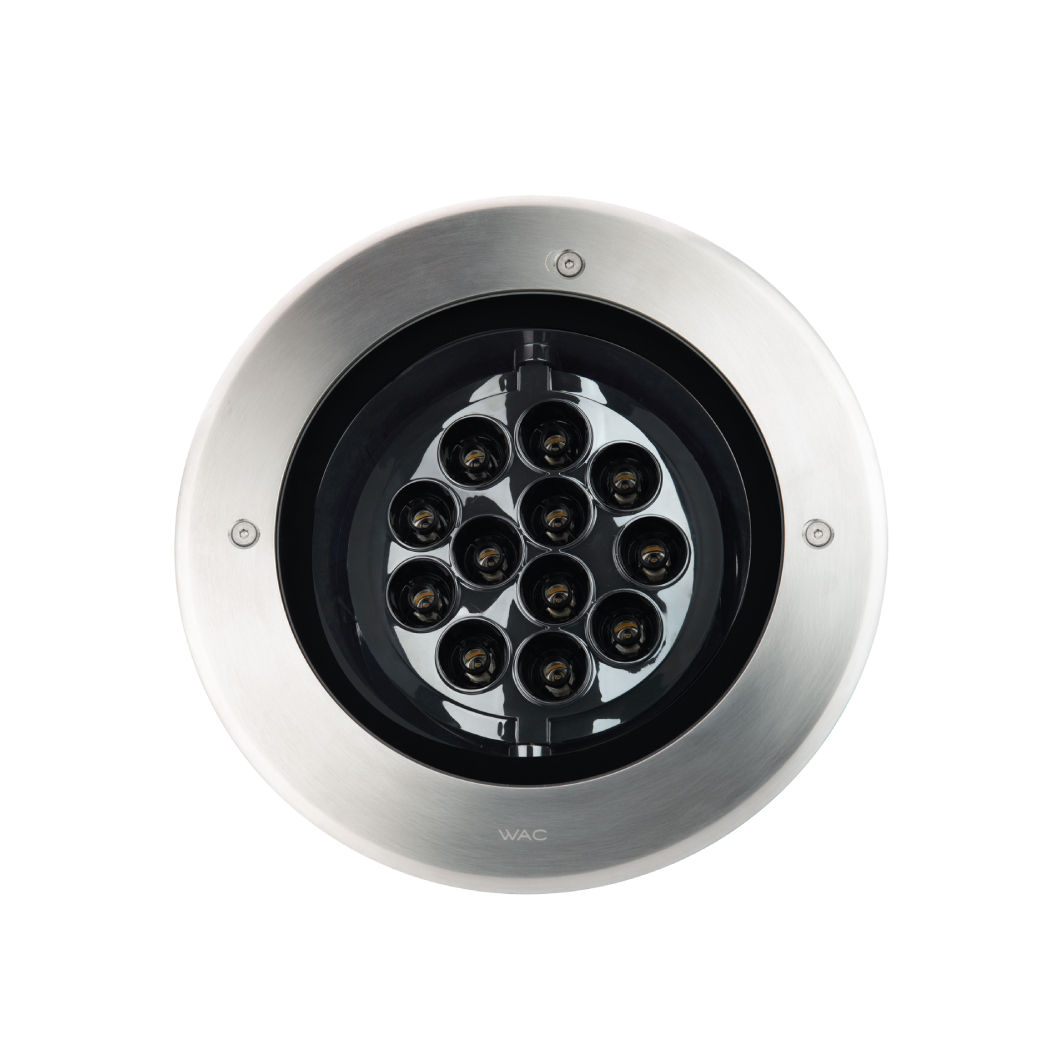

FUEGO Compact Adjustable 可调角范围 0°~25°，面框采用优质不锈钢，灯体铝压铸成型，高温粉末喷涂。适用于户外环境，IP67 防护等级， IK08 防冲击等级，可抗压 2000kg。高透光率透镜+隐光系统。
Fuego Compact
Model | comment | Power (W) | LEDs (Quantity) | Max Lumens (Lm) | Control Systems | Beam | CCT | Finish |
EIR5M High Lumens | A Adjustable | 16 16(Max) | 12 | 1348 | EL ON-OFF 220V AC Power Supply | S 7° 1 14° 2 20° 3 30° | 27 2700K 30 3000K 40 4000K | SS Stainless Steal |
Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EIR6M Super Comfort | A Adjustable | 16 16(Max) | 12 | 936 | EL ON-OFF 220V AC Power Supply | S 7° 1 13° 2 20° 3 30° | 27 2700K 30 3000K 40 4000K | SS Stainless Steal |
示例：EIR6MA-16EL-S27SS
| 型号 | 光源功率（W） | 输入电压/电流 | 调光控制 | 光束角 | 色温（K） | 表面颜色 |
|---|---|---|---|---|---|---|
| EIR5MA-16EL-127SS | 16W | 220V AC/50Hz | ON-OFF | 13° | 2700 | 不锈钢色 |
| EIR5MA-16EL-130SS | 16W | 220V AC/50Hz | ON-OFF | 13° | 3000 | 不锈钢色 |
| EIR5MA-16EL-140SS | 16W | 220V AC/50Hz | ON-OFF | 13° | 4000 | 不锈钢色 |
| EIR5MA-16EL-227SS | 16W | 220V AC/50Hz | ON-OFF | 20° | 2700 | 不锈钢色 |
| EIR5MA-16EL-230SS | 16W | 220V AC/50Hz | ON-OFF | 20° | 3000 | 不锈钢色 |
| EIR5MA-16EL-240SS | 16W | 220V AC/50Hz | ON-OFF | 20° | 4000 | 不锈钢色 |
| EIR5MA-16EL-327SS | 16W | 220V AC/50Hz | ON-OFF | 30° | 2700 | 不锈钢色 |
| EIR5MA-16EL-330SS | 16W | 220V AC/50Hz | ON-OFF | 30° | 3000 | 不锈钢色 |
| EIR5MA-16EL-340SS | 16W | 220V AC/50Hz | ON-OFF | 30° | 4000 | 不锈钢色 |
| EIR5MA-16EL-S27SS | 16W | 220V AC/50Hz | ON-OFF | 7° | 2700 | 不锈钢色 |
| EIR5MA-16EL-S30SS | 16W | 220V AC/50Hz | ON-OFF | 7° | 3000 | 不锈钢色 |
| EIR5MA-16EL-S40SS | 16W | 220V AC/50Hz | ON-OFF | 7° | 4000 | 不锈钢色 |
| EIR6MA-16EL-127SS | 16W | 220V AC/50Hz | ON-OFF | 13° | 2700 | 不锈钢色 |
| EIR6MA-16EL-130SS | 16W | 220V AC/50Hz | ON-OFF | 13° | 3000 | 不锈钢色 |
| EIR6MA-16EL-140SS | 16W | 220V AC/50Hz | ON-OFF | 13° | 4000 | 不锈钢色 |
| EIR6MA-16EL-227SS | 16W | 220V AC/50Hz | ON-OFF | 20° | 2700 | 不锈钢色 |
| EIR6MA-16EL-230SS | 16W | 220V AC/50Hz | ON-OFF | 20° | 3000 | 不锈钢色 |
| EIR6MA-16EL-240SS | 16W | 220V AC/50Hz | ON-OFF | 20° | 4000 | 不锈钢色 |
| EIR6MA-16EL-327SS | 16W | 220V AC/50Hz | ON-OFF | 30° | 2700 | 不锈钢色 |
| EIR6MA-16EL-330SS | 16W | 220V AC/50Hz | ON-OFF | 30° | 3000 | 不锈钢色 |
| EIR6MA-16EL-340SS | 16W | 220V AC/50Hz | ON-OFF | 30° | 4000 | 不锈钢色 |
| EIR6MA-16EL-S27SS | 16W | 220V AC/50Hz | ON-OFF | 7° | 2700 | 不锈钢色 |
| EIR6MA-16EL-S30SS | 16W | 220V AC/50Hz | ON-OFF | 7° | 3000 | 不锈钢色 |
| EIR6MA-16EL-S40SS | 16W | 220V AC/50Hz | ON-OFF | 7° | 4000 | 不锈钢色 |
