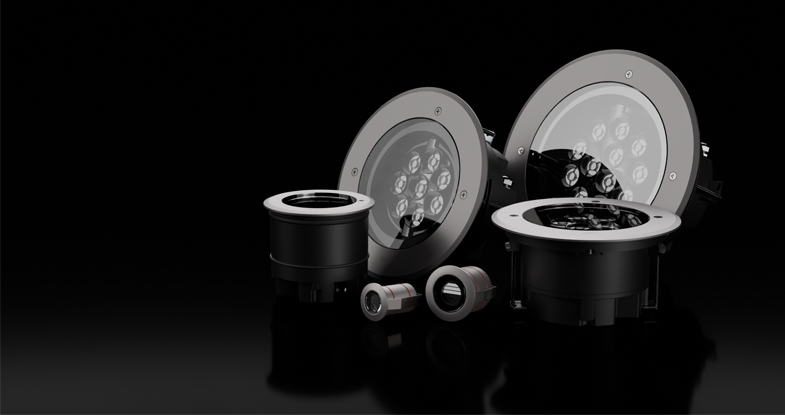

FUEGO Compact 面框采用优质不锈钢，灯体铝压铸成型，高温粉末喷涂，适用于户外环境，IP67 防护等级， IK08 防冲击等级，可抗压 2000kg。配合预埋筒的设计，方便客户安装与维护。

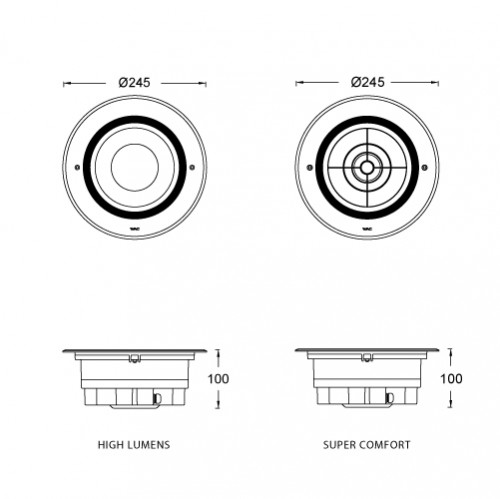

Fuego Compact
Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |

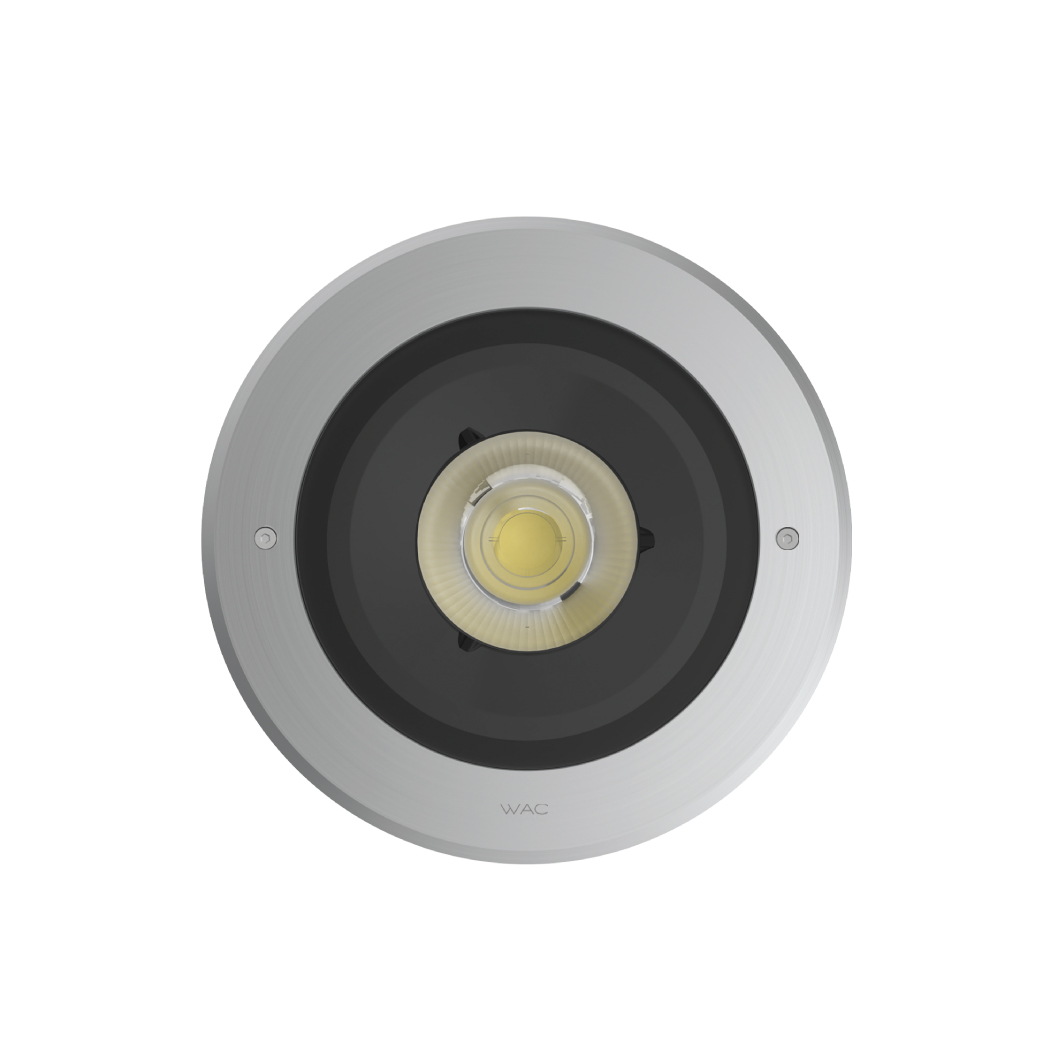

EIR7M High Lumens | F Frame | 31 31(Max) | COB | 2970 | EL ON-OFF | 1 14° 2 23° 3 36° 6 62° | 27 2700K 30 3000K 40 4000K | SS Stainless Steel |
Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |

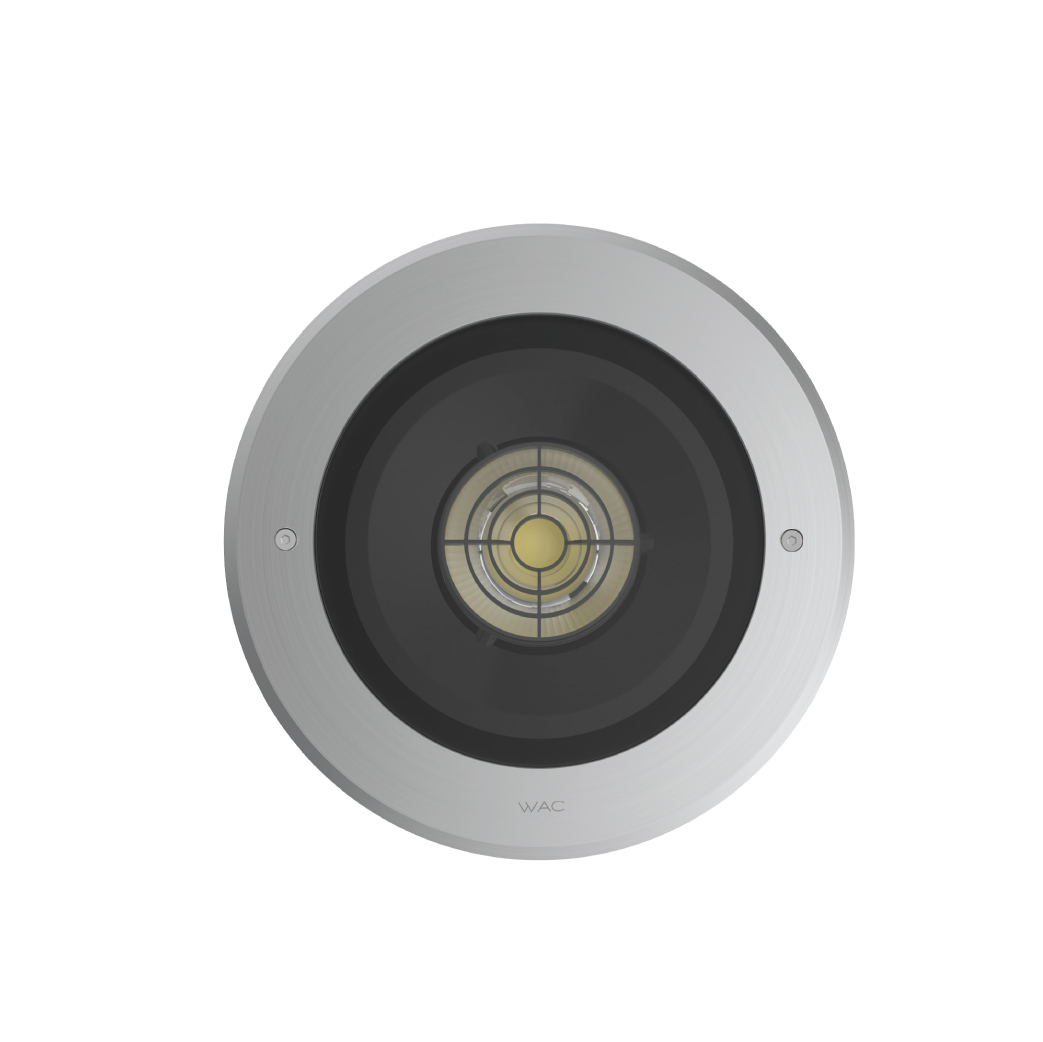

EIR8M Super Comfort | F Frame | 31 31(Max) | COB | 1570 | EL ON-OFF | 1 13° 2 20° 3 31° 6 60° | 27 2700K 30 3000K 40 4000K | SS Stainless Steel |
示例：EIR8MF-31EL-127SS
| 型号 | 光源功率（W） | 输入电压/电流 | 调光控制 | 光束角 | 色温（K） | 表面颜色 |
|---|---|---|---|---|---|---|
| EIR7MF-31EL-127SS | 31W | 220V AC/50Hz | ON-OFF | 13° | 2700 | 不锈钢色 |
| EIR7MF-31EL-130SS | 31W | 220V AC/50Hz | ON-OFF | 13° | 3000 | 不锈钢色 |
| EIR7MF-31EL-140SS | 31W | 220V AC/50Hz | ON-OFF | 13° | 4000 | 不锈钢色 |
| EIR7MF-31EL-227SS | 31W | 220V AC/50Hz | ON-OFF | 20° | 2700 | 不锈钢色 |
| EIR7MF-31EL-230SS | 31W | 220V AC/50Hz | ON-OFF | 20° | 3000 | 不锈钢色 |
| EIR7MF-31EL-240SS | 31W | 220V AC/50Hz | ON-OFF | 20° | 4000 | 不锈钢色 |
| EIR7MF-31EL-327SS | 31W | 220V AC/50Hz | ON-OFF | 36° | 2700 | 不锈钢色 |
| EIR7MF-31EL-330SS | 31W | 220V AC/50Hz | ON-OFF | 36° | 3000 | 不锈钢色 |
| EIR7MF-31EL-340SS | 31W | 220V AC/50Hz | ON-OFF | 36° | 4000 | 不锈钢色 |
| EIR7MF-31EL-627SS | 31W | 220V AC/50Hz | ON-OFF | 60° | 2700 | 不锈钢色 |
| EIR7MF-31EL-630SS | 31W | 220V AC/50Hz | ON-OFF | 60° | 3000 | 不锈钢色 |
| EIR7MF-31EL-640SS | 31W | 220V AC/50Hz | ON-OFF | 60° | 4000 | 不锈钢色 |
| EIR8MF-31EL-127SS | 31W | 220V AC/50Hz | ON-OFF | 13° | 2700 | 不锈钢色 |
| EIR8MF-31EL-130SS | 31W | 220V AC/50Hz | ON-OFF | 13° | 3000 | 不锈钢色 |
| EIR8MF-31EL-140SS | 31W | 220V AC/50Hz | ON-OFF | 13° | 4000 | 不锈钢色 |
| EIR8MF-31EL-227SS | 31W | 220V AC/50Hz | ON-OFF | 20° | 2700 | 不锈钢色 |
| EIR8MF-31EL-230SS | 31W | 220V AC/50Hz | ON-OFF | 20° | 3000 | 不锈钢色 |
| EIR8MF-31EL-240SS | 31W | 220V AC/50Hz | ON-OFF | 20° | 4000 | 不锈钢色 |
| EIR8MF-31EL-327SS | 31W | 220V AC/50Hz | ON-OFF | 31° | 2700 | 不锈钢色 |
| EIR8MF-31EL-330SS | 31W | 220V AC/50Hz | ON-OFF | 31° | 3000 | 不锈钢色 |
| EIR8MF-31EL-340SS | 31W | 220V AC/50Hz | ON-OFF | 31° | 4000 | 不锈钢色 |
| EIR8MF-31EL-627SS | 31W | 220V AC/50Hz | ON-OFF | 60° | 2700 | 不锈钢色 |
| EIR8MF-31EL-630SS | 31W | 220V AC/50Hz | ON-OFF | 60° | 3000 | 不锈钢色 |
| EIR8MF-31EL-640SS | 31W | 220V AC/50Hz | ON-OFF | 60° | 4000 | 不锈钢色 |
