FUEGO Compact 面框采用优质不锈钢，灯体铝压铸成型，高温粉末喷涂，适用于户外环境，IP67 防护等级， IK08 防冲击等级，可抗压 2000kg。配合预埋筒的设计，方便客户安装与维护。
Fuego Compact
Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |

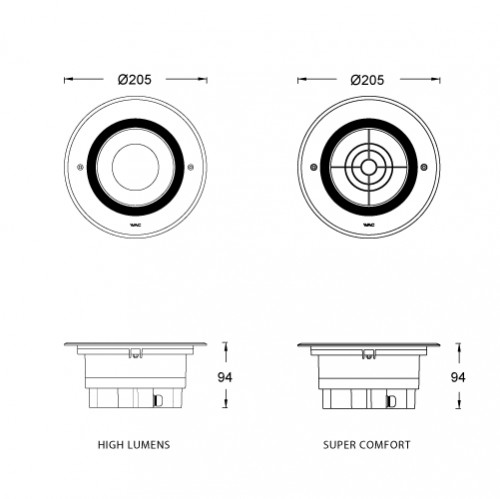

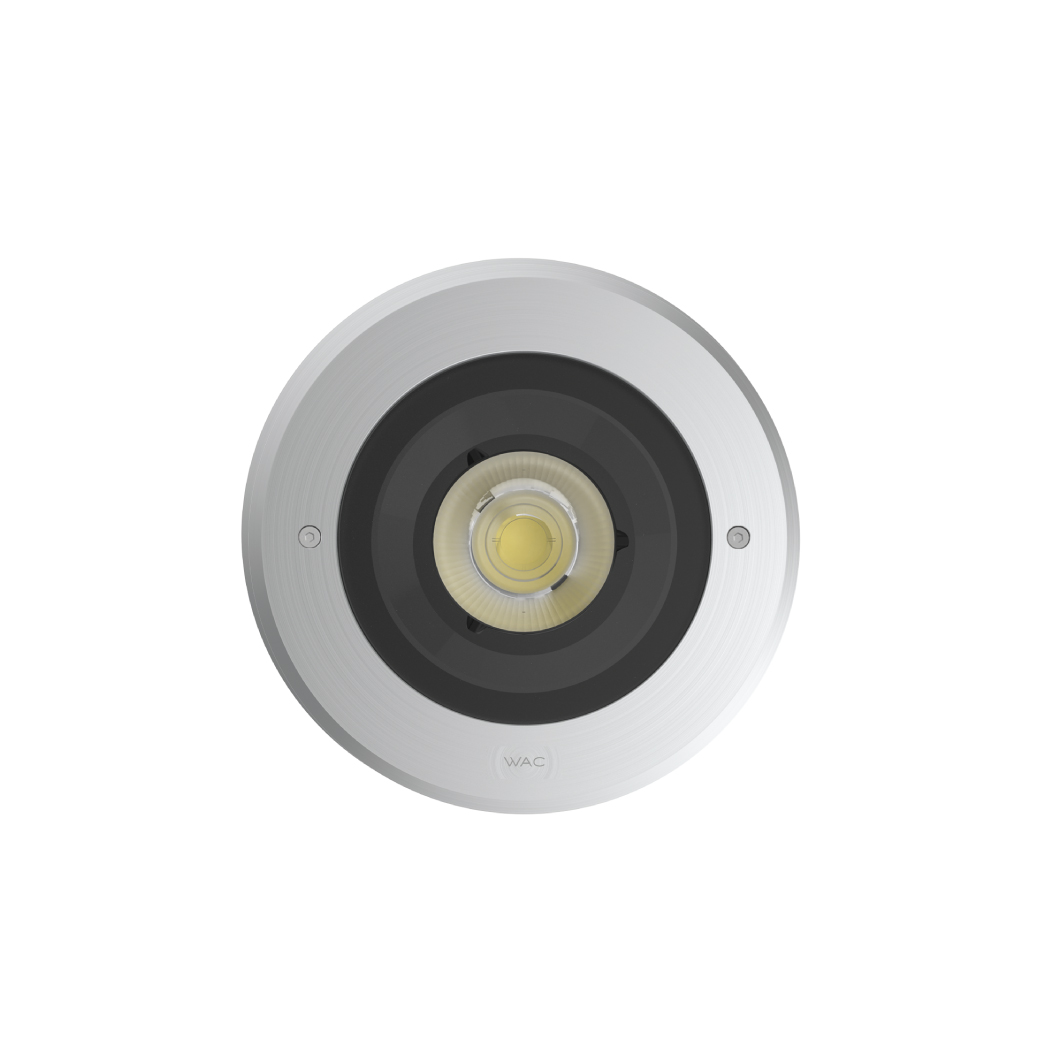

EIR7S High Lumens | F Frame | 21 21(Max) | COB | 2030 | EL ON-OFF | 2 22° 4 45° 5 53° 6 63° | 27 2700K 30 3000K 40 4000K | SS Stainless Steel |
Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |

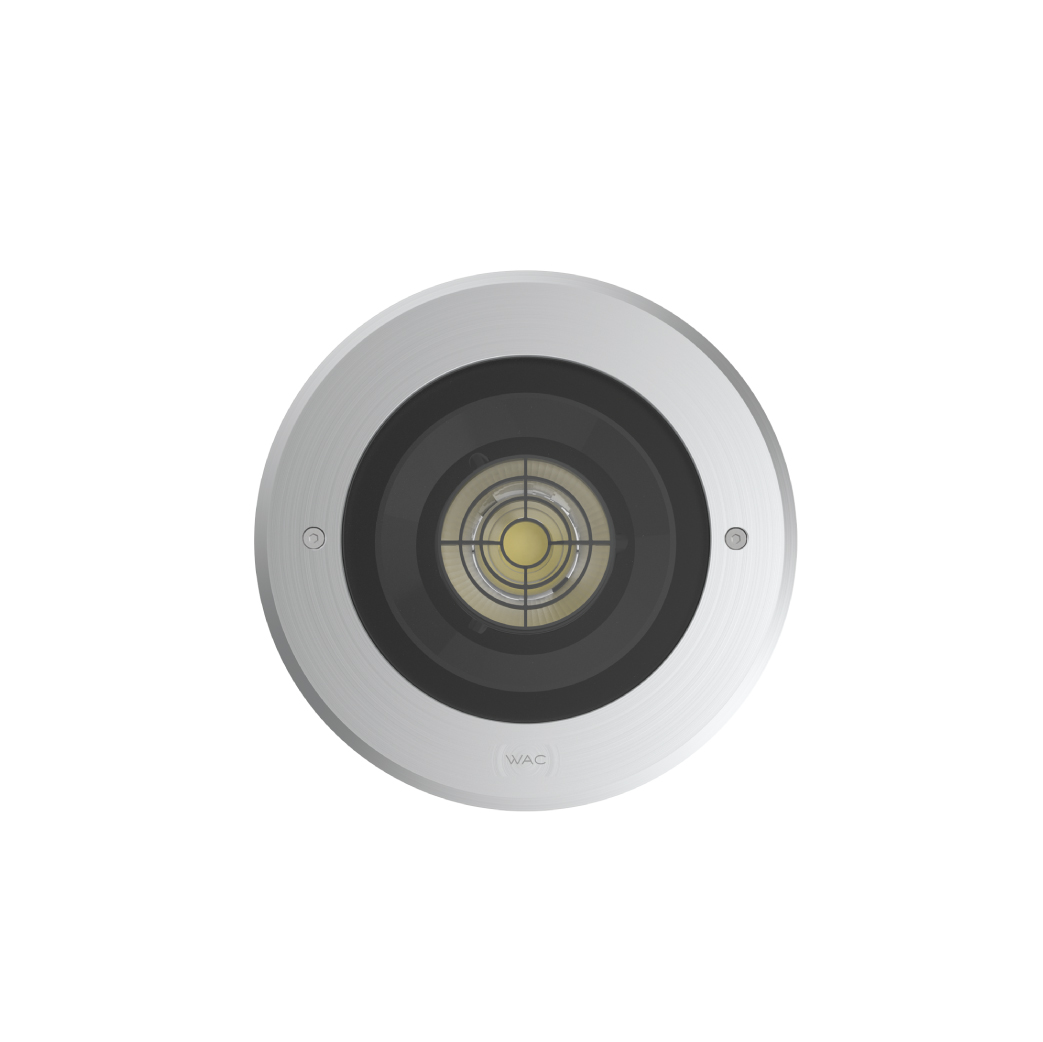

EIR8S Super Comfort | F Frame | 21 21(Max) | COB | 1192 | EL ON-OFF | 2 21° 4 40° 5 50° 6 60° | 27 2700K 30 3000K 40 4000K | SS Stainless Steel |
示例：EIR8SF-21EL-227SS
| 型号 | 光源功率（W） | 输入电压/电流 | 调光控制 | 光束角 | 色温（K） | 表面颜色 |
|---|---|---|---|---|---|---|
| EIR7SF-21EL-227SS | 21W | 220V AC/50Hz | ON-OFF | 20° | 2700 | 不锈钢色 |
| EIR7SF-21EL-230SS | 21W | 220V AC/50Hz | ON-OFF | 20° | 3000 | 不锈钢色 |
| EIR7SF-21EL-240SS | 21W | 220V AC/50Hz | ON-OFF | 20° | 4000 | 不锈钢色 |
| EIR7SF-21EL-427SS | 21W | 220V AC/50Hz | ON-OFF | 45° | 2700 | 不锈钢色 |
| EIR7SF-21EL-430SS | 21W | 220V AC/50Hz | ON-OFF | 45° | 3000 | 不锈钢色 |
| EIR7SF-21EL-440SS | 21W | 220V AC/50Hz | ON-OFF | 45° | 4000 | 不锈钢色 |
| EIR7SF-21EL-527SS | 21W | 220V AC/50Hz | ON-OFF | 50° | 2700 | 不锈钢色 |
| EIR7SF-21EL-530SS | 21W | 220V AC/50Hz | ON-OFF | 50° | 3000 | 不锈钢色 |
| EIR7SF-21EL-540SS | 21W | 220V AC/50Hz | ON-OFF | 50° | 4000 | 不锈钢色 |
| EIR7SF-21EL-627SS | 21W | 220V AC/50Hz | ON-OFF | 60° | 2700 | 不锈钢色 |
| EIR7SF-21EL-630SS | 21W | 220V AC/50Hz | ON-OFF | 60° | 3000 | 不锈钢色 |
| EIR7SF-21EL-640SS | 21W | 220V AC/50Hz | ON-OFF | 60° | 4000 | 不锈钢色 |
| EIR8SF-21EL-227SS | 21W | 220V AC/50Hz | ON-OFF | 20° | 2700 | 不锈钢色 |
| EIR8SF-21EL-230SS | 21W | 220V AC/50Hz | ON-OFF | 20° | 3000 | 不锈钢色 |
| EIR8SF-21EL-240SS | 21W | 220V AC/50Hz | ON-OFF | 20° | 4000 | 不锈钢色 |
| EIR8SF-21EL-427SS | 21W | 220V AC/50Hz | ON-OFF | 40° | 2700 | 不锈钢色 |
| EIR8SF-21EL-430SS | 21W | 220V AC/50Hz | ON-OFF | 40° | 3000 | 不锈钢色 |
| EIR8SF-21EL-440SS | 21W | 220V AC/50Hz | ON-OFF | 40° | 4000 | 不锈钢色 |
| EIR8SF-21EL-527SS | 21W | 220V AC/50Hz | ON-OFF | 50° | 2700 | 不锈钢色 |
| EIR8SF-21EL-530SS | 21W | 220V AC/50Hz | ON-OFF | 50° | 3000 | 不锈钢色 |
| EIR8SF-21EL-540SS | 21W | 220V AC/50Hz | ON-OFF | 50° | 4000 | 不锈钢色 |
| EIR8SF-21EL-627SS | 21W | 220V AC/50Hz | ON-OFF | 60° | 2700 | 不锈钢色 |
| EIR8SF-21EL-630SS | 21W | 220V AC/50Hz | ON-OFF | 60° | 3000 | 不锈钢色 |
| EIR8SF-21EL-640SS | 21W | 220V AC/50Hz | ON-OFF | 60° | 4000 | 不锈钢色 |
