FUEGO Compact 面框采用优质316不锈钢，灯体铝压铸成型，高温粉末喷涂，适用于户外环境，IP67 防护等级， IK08 防冲击等级，可抗压 2000kg。配合预埋筒的设计，方便客户安装与维护。

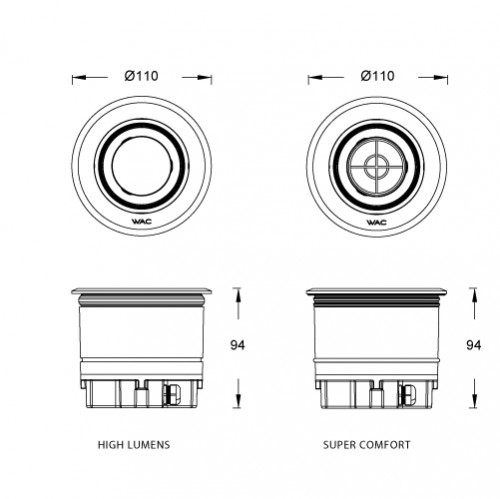

Fuego Compact
| Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |

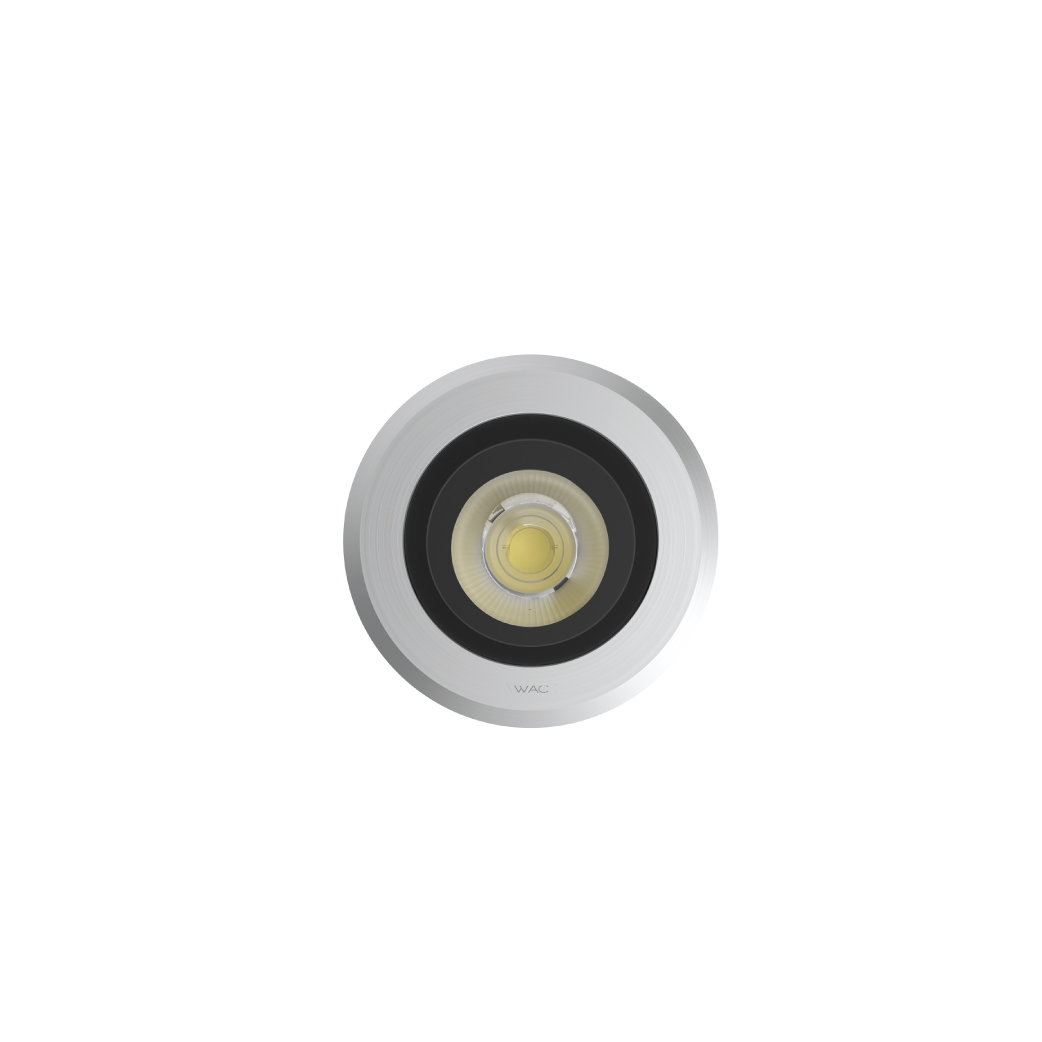

EIR7T High Lumens | F Fixed | 08 8.5W | COB | 885 | EL ON-OFF 220V AC Power Supply | 1 17° 2 29° 4 47° 6 62° | 27 2700K 30 3000K 40 4000K | SS Stainless Steel |
| Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |

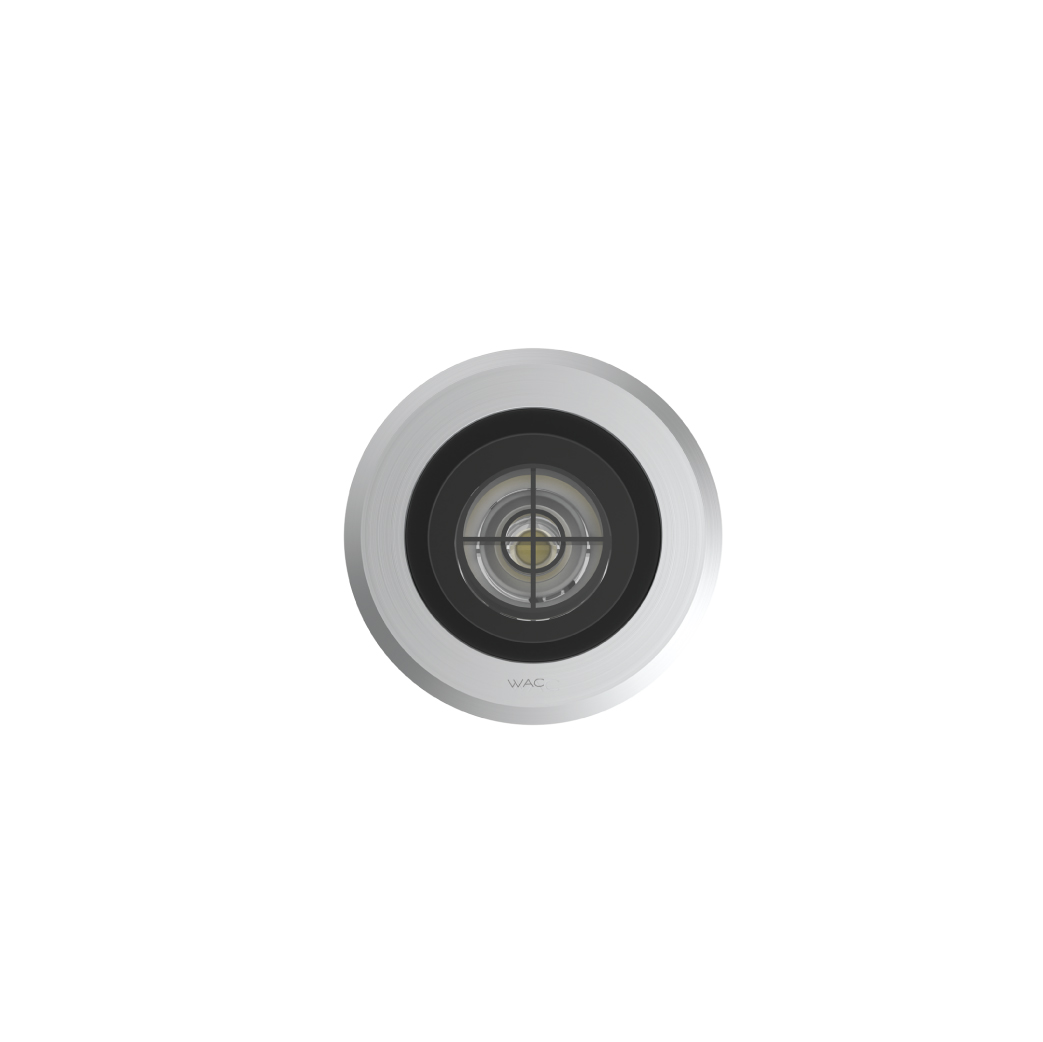

EIR8T Super Comfort | F Fixed | 08 8.5W | COB | 446 | EL ON-OFF 220V AC Power Supply | 1 17° 2 27° 4 40° 6 60° | 27 2700K 30 3000K 40 4000K | SS Stainless Steel |
示例：EIR8TF-08EL-127SS
| 型号 | 光源功率（W） | 输入电压/电流 | 调光控制 | 光束角 | 色温（K） | 表面颜色 |
|---|---|---|---|---|---|---|
| EIR7TF-08EL-127SS | 8W | 220V AC/50Hz | ON-OFF | 17° | 2700 | 不锈钢色 |
| EIR7TF-08EL-130SS | 8W | 220V AC/50Hz | ON-OFF | 17° | 3000 | 不锈钢色 |
| EIR7TF-08EL-140SS | 8W | 220V AC/50Hz | ON-OFF | 17° | 4000 | 不锈钢色 |
| EIR7TF-08EL-227SS | 8W | 220V AC/50Hz | ON-OFF | 27° | 2700 | 不锈钢色 |
| EIR7TF-08EL-230SS | 8W | 220V AC/50Hz | ON-OFF | 27° | 3000 | 不锈钢色 |
| EIR7TF-08EL-240SS | 8W | 220V AC/50Hz | ON-OFF | 27° | 4000 | 不锈钢色 |
| EIR7TF-08EL-427SS | 8W | 220V AC/50Hz | ON-OFF | 47° | 2700 | 不锈钢色 |
| EIR7TF-08EL-430SS | 8W | 220V AC/50Hz | ON-OFF | 47° | 3000 | 不锈钢色 |
| EIR7TF-08EL-440SS | 8W | 220V AC/50Hz | ON-OFF | 47° | 4000 | 不锈钢色 |
| EIR7TF-08EL-627SS | 8W | 220V AC/50Hz | ON-OFF | 60° | 2700 | 不锈钢色 |
| EIR7TF-08EL-630SS | 8W | 220V AC/50Hz | ON-OFF | 60° | 3000 | 不锈钢色 |
| EIR7TF-08EL-640SS | 8W | 220V AC/50Hz | ON-OFF | 60° | 4000 | 不锈钢色 |
| EIR8TF-08EL-127SS | 8W | 220V AC/50Hz | ON-OFF | 17° | 2700 | 不锈钢色 |
| EIR8TF-08EL-130SS | 8W | 220V AC/50Hz | ON-OFF | 17° | 3000 | 不锈钢色 |
| EIR8TF-08EL-140SS | 8W | 220V AC/50Hz | ON-OFF | 17° | 4000 | 不锈钢色 |
| EIR8TF-08EL-227SS | 8W | 220V AC/50Hz | ON-OFF | 27° | 2700 | 不锈钢色 |
| EIR8TF-08EL-230SS | 8W | 220V AC/50Hz | ON-OFF | 27° | 3000 | 不锈钢色 |
| EIR8TF-08EL-240SS | 8W | 220V AC/50Hz | ON-OFF | 27° | 4000 | 不锈钢色 |
| EIR8TF-08EL-427SS | 8W | 220V AC/50Hz | ON-OFF | 40° | 2700 | 不锈钢色 |
| EIR8TF-08EL-430SS | 8W | 220V AC/50Hz | ON-OFF | 40° | 3000 | 不锈钢色 |
| EIR8TF-08EL-440SS | 8W | 220V AC/50Hz | ON-OFF | 40° | 4000 | 不锈钢色 |
| EIR8TF-08EL-627SS | 8W | 220V AC/50Hz | ON-OFF | 60° | 2700 | 不锈钢色 |
| EIR8TF-08EL-630SS | 8W | 220V AC/50Hz | ON-OFF | 60° | 3000 | 不锈钢色 |
| EIR8TF-08EL-640SS | 8W | 220V AC/50Hz | ON-OFF | 60° | 4000 | 不锈钢色 |
