FUEGO Compact 面框采用优质 316 不锈钢，灯体铝压铸成型，高温粉末喷涂。适用于户外环境，IP67 防护等级， IK08 防冲击等级，可抗压 2000kg。高透光率透镜+专利隐光系统。配合预埋筒的设计，方便客户安装与维护。

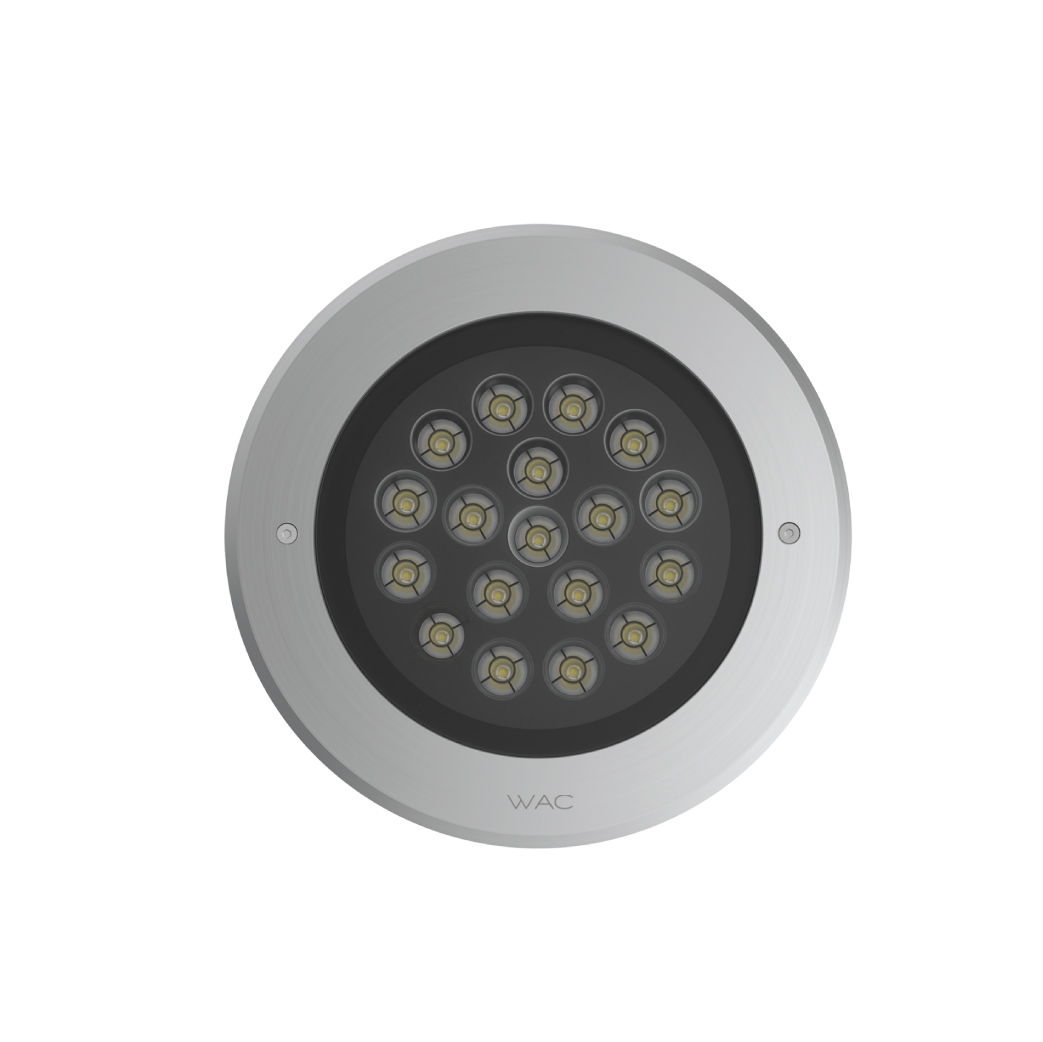

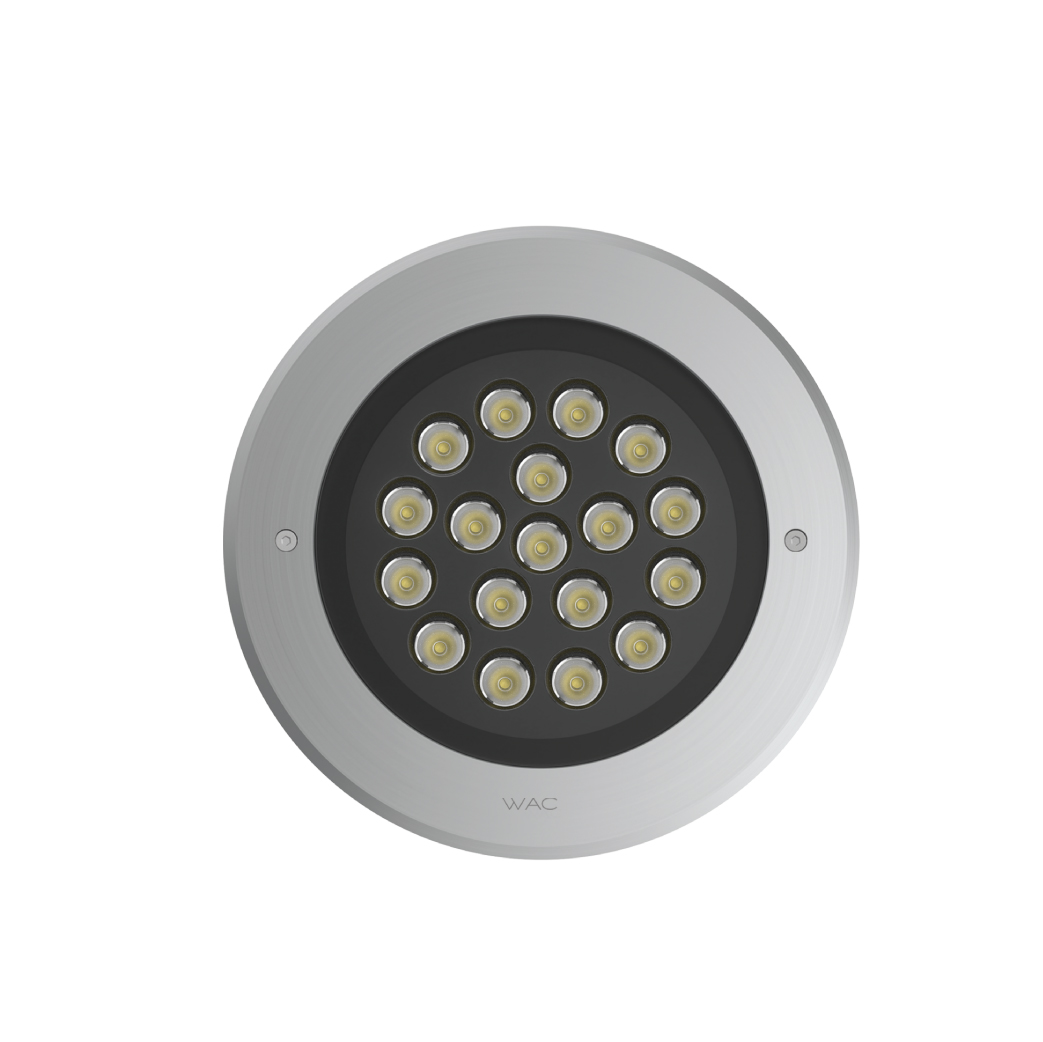

Fuego Compact
| Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EIR5M High Lumens | F Frame | 33 33(Max) | 18 | 2500 | EL ON-OFF | S 7° 1 14° 2 20° 3 30° | 27 2700K 30 3000K 40 4000K | SS Stainless Steel |
| Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EIR5M High Lumens | F Frame | 27 27(Max) | 18 | 2045 | ML DMX512 Dimming | S 7° 1 14° 2 20° 3 30° | 27 2700K 30 3000K 40 4000K | SS Stainless Steel |
| Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EIR6M Super Comfort | F Frame | 33 33(Max) | 18 | 1607 | EL ON-OFF | S 7° 1 13° 2 20° 3 30° | 27 2700K 30 3000K 40 4000K | SS Stainless Steel |
| Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EIR6M Super Comfort | F Frame | 27 27(Max) | 18 | 1315 | ML DMX512 Dimming | S 7° 1 13° 2 20° 3 30° | 27 2700K 30 3000K 40 4000K | SS Stainless Steel |
示例：EIR6MF-33EL-S27SS
| 型号 | 光源功率（W） | 输入电压/电流 | 调光控制 | 光束角 | 色温（K） | 表面颜色 |
|---|---|---|---|---|---|---|
| EIR5MF-27ML-127SS | 27W | 220V AC/50Hz | DMX512 Dimming | 13° | 2700 | 不锈钢色 |
| EIR5MF-27ML-130SS | 27W | 220V AC/50Hz | DMX512 Dimming | 13° | 3000 | 不锈钢色 |
| EIR5MF-27ML-140SS | 27W | 220V AC/50Hz | DMX512 Dimming | 13° | 4000 | 不锈钢色 |
| EIR5MF-27ML-227SS | 27W | 220V AC/50Hz | DMX512 Dimming | 20° | 2700 | 不锈钢色 |
| EIR5MF-27ML-230SS | 27W | 220V AC/50Hz | DMX512 Dimming | 20° | 3000 | 不锈钢色 |
| EIR5MF-27ML-240SS | 27W | 220V AC/50Hz | DMX512 Dimming | 20° | 4000 | 不锈钢色 |
| EIR5MF-27ML-327SS | 27W | 220V AC/50Hz | DMX512 Dimming | 30° | 2700 | 不锈钢色 |
| EIR5MF-27ML-330SS | 27W | 220V AC/50Hz | DMX512 Dimming | 30° | 3000 | 不锈钢色 |
| EIR5MF-27ML-340SS | 27W | 220V AC/50Hz | DMX512 Dimming | 30° | 4000 | 不锈钢色 |
| EIR5MF-27ML-S27SS | 27W | 220V AC/50Hz | DMX512 Dimming | 7° | 2700 | 不锈钢色 |
| EIR5MF-27ML-S30SS | 27W | 220V AC/50Hz | DMX512 Dimming | 7° | 3000 | 不锈钢色 |
| EIR5MF-27ML-S40SS | 27W | 220V AC/50Hz | DMX512 Dimming | 7° | 4000 | 不锈钢色 |
| EIR5MF-33EL-127SS | 33W | 220V AC/50Hz | ON-OFF | 13° | 2700 | 不锈钢色 |
| EIR5MF-33EL-130SS | 33W | 220V AC/50Hz | ON-OFF | 13° | 3000 | 不锈钢色 |
| EIR5MF-33EL-140SS | 33W | 220V AC/50Hz | ON-OFF | 13° | 4000 | 不锈钢色 |
| EIR5MF-33EL-227SS | 33W | 220V AC/50Hz | ON-OFF | 20° | 2700 | 不锈钢色 |
| EIR5MF-33EL-230SS | 33W | 220V AC/50Hz | ON-OFF | 20° | 3000 | 不锈钢色 |
| EIR5MF-33EL-240SS | 33W | 220V AC/50Hz | ON-OFF | 20° | 4000 | 不锈钢色 |
| EIR5MF-33EL-327SS | 33W | 220V AC/50Hz | ON-OFF | 30° | 2700 | 不锈钢色 |
| EIR5MF-33EL-330SS | 33W | 220V AC/50Hz | ON-OFF | 30° | 3000 | 不锈钢色 |
| EIR5MF-33EL-340SS | 33W | 220V AC/50Hz | ON-OFF | 30° | 4000 | 不锈钢色 |
| EIR5MF-33EL-S27SS | 33W | 220V AC/50Hz | ON-OFF | 7° | 2700 | 不锈钢色 |
| EIR5MF-33EL-S30SS | 33W | 220V AC/50Hz | ON-OFF | 7° | 3000 | 不锈钢色 |
| EIR5MF-33EL-S40SS | 33W | 220V AC/50Hz | ON-OFF | 7° | 4000 | 不锈钢色 |
| EIR6MF-27ML-127SS | 27W | 220V AC/50Hz | DMX512 Dimming | 13° | 2700 | 不锈钢色 |
| EIR6MF-27ML-130SS | 27W | 220V AC/50Hz | DMX512 Dimming | 13° | 3000 | 不锈钢色 |
| EIR6MF-27ML-140SS | 27W | 220V AC/50Hz | DMX512 Dimming | 13° | 4000 | 不锈钢色 |
| EIR6MF-27ML-227SS | 27W | 220V AC/50Hz | DMX512 Dimming | 20° | 2700 | 不锈钢色 |
| EIR6MF-27ML-230SS | 27W | 220V AC/50Hz | DMX512 Dimming | 20° | 3000 | 不锈钢色 |
| EIR6MF-27ML-240SS | 27W | 220V AC/50Hz | DMX512 Dimming | 20° | 4000 | 不锈钢色 |
| EIR6MF-27ML-327SS | 27W | 220V AC/50Hz | DMX512 Dimming | 30° | 2700 | 不锈钢色 |
| EIR6MF-27ML-330SS | 27W | 220V AC/50Hz | DMX512 Dimming | 30° | 3000 | 不锈钢色 |
| EIR6MF-27ML-340SS | 27W | 220V AC/50Hz | DMX512 Dimming | 30° | 4000 | 不锈钢色 |
| EIR6MF-27ML-S27SS | 27W | 220V AC/50Hz | DMX512 Dimming | 7° | 2700 | 不锈钢色 |
| EIR6MF-27ML-S30SS | 27W | 220V AC/50Hz | DMX512 Dimming | 7° | 3000 | 不锈钢色 |
| EIR6MF-27ML-S40SS | 27W | 220V AC/50Hz | DMX512 Dimming | 7° | 4000 | 不锈钢色 |
| EIR6MF-33EL-127SS | 33W | 220V AC/50Hz | ON-OFF | 13° | 2700 | 不锈钢色 |
| EIR6MF-33EL-130SS | 33W | 220V AC/50Hz | ON-OFF | 13° | 3000 | 不锈钢色 |
| EIR6MF-33EL-140SS | 33W | 220V AC/50Hz | ON-OFF | 13° | 4000 | 不锈钢色 |
| EIR6MF-33EL-227SS | 33W | 220V AC/50Hz | ON-OFF | 20° | 2700 | 不锈钢色 |
| EIR6MF-33EL-230SS | 33W | 220V AC/50Hz | ON-OFF | 20° | 3000 | 不锈钢色 |
| EIR6MF-33EL-240SS | 33W | 220V AC/50Hz | ON-OFF | 20° | 4000 | 不锈钢色 |
| EIR6MF-33EL-327SS | 33W | 220V AC/50Hz | ON-OFF | 30° | 2700 | 不锈钢色 |
| EIR6MF-33EL-330SS | 33W | 220V AC/50Hz | ON-OFF | 30° | 3000 | 不锈钢色 |
| EIR6MF-33EL-340SS | 33W | 220V AC/50Hz | ON-OFF | 30° | 4000 | 不锈钢色 |
| EIR6MF-33EL-S27SS | 33W | 220V AC/50Hz | ON-OFF | 7° | 2700 | 不锈钢色 |
| EIR6MF-33EL-S30SS | 33W | 220V AC/50Hz | ON-OFF | 7° | 3000 | 不锈钢色 |
| EIR6MF-33EL-S40SS | 33W | 220V AC/50Hz | ON-OFF | 7° | 4000 | 不锈钢色 |
