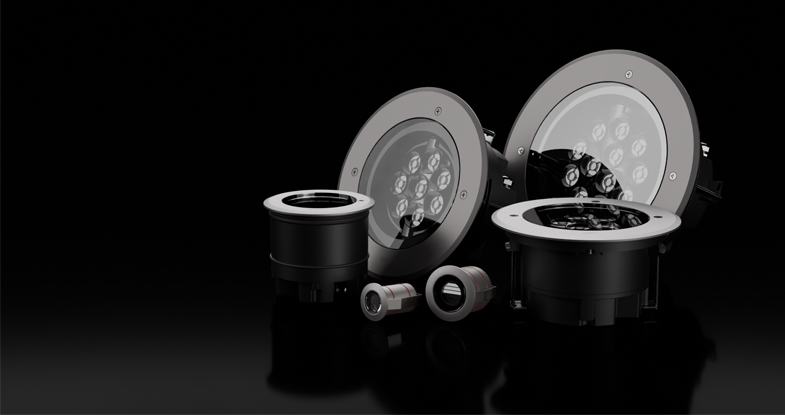

FUEGO Compact 面框采用优质 316 不锈钢，灯体铝压铸成型，高温粉末喷涂。适用于户外环境，IP67 防护等级， IK08 防冲击等级，可抗压 2000kg。高透光率透镜+专利隐光系统。配合预埋筒的设计，方便客户安装与维护。

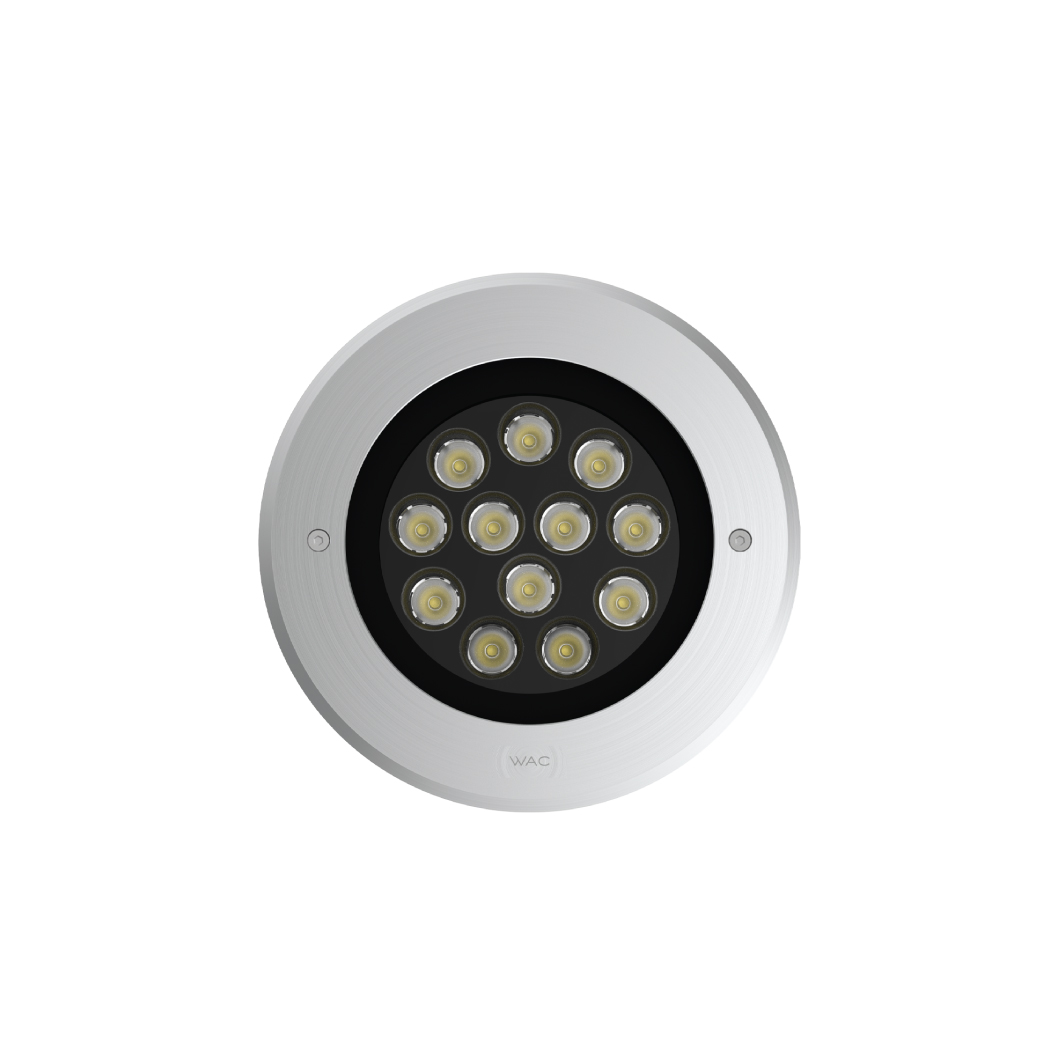

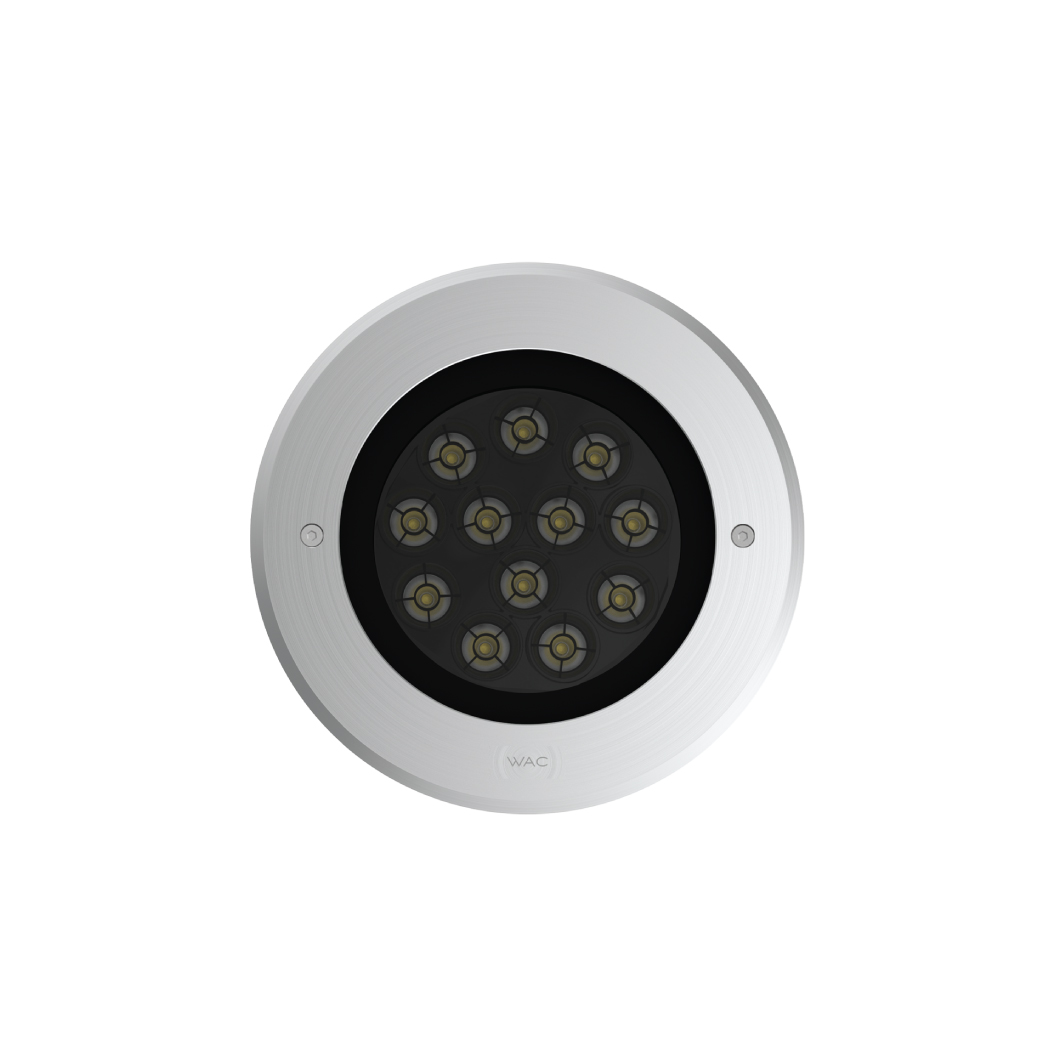

Fuego Compact
| 型号 | 光源功率（W） | 输入电压/电流 | 调光控制 | 光束角 | 色温（K） | 表面颜色 |
|---|---|---|---|---|---|---|
| EIR5SF-19ML-127SS | 19W | 220V AC/50Hz | DMX512 Dimming | 13° | 2700 | 不锈钢色 |
| EIR5SF-19ML-130SS | 19W | 220V AC/50Hz | DMX512 Dimming | 13° | 3000 | 不锈钢色 |
| EIR5SF-19ML-140SS | 19W | 220V AC/50Hz | DMX512 Dimming | 13° | 4000 | 不锈钢色 |
| EIR5SF-19ML-227SS | 19W | 220V AC/50Hz | DMX512 Dimming | 20° | 2700 | 不锈钢色 |
| EIR5SF-19ML-230SS | 19W | 220V AC/50Hz | DMX512 Dimming | 20° | 3000 | 不锈钢色 |
| EIR5SF-19ML-240SS | 19W | 220V AC/50Hz | DMX512 Dimming | 20° | 4000 | 不锈钢色 |
| EIR5SF-19ML-327SS | 19W | 220V AC/50Hz | DMX512 Dimming | 30° | 2700 | 不锈钢色 |
| EIR5SF-19ML-330SS | 19W | 220V AC/50Hz | DMX512 Dimming | 30° | 3000 | 不锈钢色 |
| EIR5SF-19ML-340SS | 19W | 220V AC/50Hz | DMX512 Dimming | 30° | 4000 | 不锈钢色 |
| EIR5SF-19ML-S27SS | 19W | 220V AC/50Hz | DMX512 Dimming | 7° | 2700 | 不锈钢色 |
| EIR5SF-19ML-S30SS | 19W | 220V AC/50Hz | DMX512 Dimming | 7° | 3000 | 不锈钢色 |
| EIR5SF-19ML-S40SS | 19W | 220V AC/50Hz | DMX512 Dimming | 7° | 4000 | 不锈钢色 |
| EIR5SF-21EL-127SS | 21W | 220V AC/50Hz | ON-OFF | 13° | 2700 | 不锈钢色 |
| EIR5SF-21EL-130SS | 21W | 220V AC/50Hz | ON-OFF | 13° | 3000 | 不锈钢色 |
| EIR5SF-21EL-140SS | 21W | 220V AC/50Hz | ON-OFF | 13° | 4000 | 不锈钢色 |
| EIR5SF-21EL-227SS | 21W | 220V AC/50Hz | ON-OFF | 20° | 2700 | 不锈钢色 |
| EIR5SF-21EL-230SS | 21W | 220V AC/50Hz | ON-OFF | 20° | 3000 | 不锈钢色 |
| EIR5SF-21EL-240SS | 21W | 220V AC/50Hz | ON-OFF | 20° | 4000 | 不锈钢色 |
| EIR5SF-21EL-327SS | 21W | 220V AC/50Hz | ON-OFF | 30° | 2700 | 不锈钢色 |
| EIR5SF-21EL-330SS | 21W | 220V AC/50Hz | ON-OFF | 30° | 3000 | 不锈钢色 |
| EIR5SF-21EL-340SS | 21W | 220V AC/50Hz | ON-OFF | 30° | 4000 | 不锈钢色 |
| EIR5SF-21EL-S27SS | 21W | 220V AC/50Hz | ON-OFF | 7° | 2700 | 不锈钢色 |
| EIR5SF-21EL-S30SS | 21W | 220V AC/50Hz | ON-OFF | 7° | 3000 | 不锈钢色 |
| EIR5SF-21EL-S40SS | 21W | 220V AC/50Hz | ON-OFF | 7° | 4000 | 不锈钢色 |
| EIR6SF-19ML-127SS | 19W | 220V AC/50Hz | DMX512 Dimming | 13° | 2700 | 不锈钢色 |
| EIR6SF-19ML-130SS | 19W | 220V AC/50Hz | DMX512 Dimming | 13° | 3000 | 不锈钢色 |
| EIR6SF-19ML-140SS | 19W | 220V AC/50Hz | DMX512 Dimming | 13° | 4000 | 不锈钢色 |
| EIR6SF-19ML-227SS | 19W | 220V AC/50Hz | DMX512 Dimming | 20° | 2700 | 不锈钢色 |
| EIR6SF-19ML-230SS | 19W | 220V AC/50Hz | DMX512 Dimming | 20° | 3000 | 不锈钢色 |
| EIR6SF-19ML-240SS | 19W | 220V AC/50Hz | DMX512 Dimming | 20° | 4000 | 不锈钢色 |
| EIR6SF-19ML-327SS | 19W | 220V AC/50Hz | DMX512 Dimming | 30° | 2700 | 不锈钢色 |
| EIR6SF-19ML-330SS | 19W | 220V AC/50Hz | DMX512 Dimming | 30° | 3000 | 不锈钢色 |
| EIR6SF-19ML-340SS | 19W | 220V AC/50Hz | DMX512 Dimming | 30° | 4000 | 不锈钢色 |
| EIR6SF-19ML-S27SS | 19W | 220V AC/50Hz | DMX512 Dimming | 7° | 2700 | 不锈钢色 |
| EIR6SF-19ML-S30SS | 19W | 220V AC/50Hz | DMX512 Dimming | 7° | 3000 | 不锈钢色 |
| EIR6SF-19ML-S40SS | 19W | 220V AC/50Hz | DMX512 Dimming | 7° | 4000 | 不锈钢色 |
| EIR6SF-21EL-127SS | 21W | 220V AC/50Hz | ON-OFF | 13° | 2700 | 不锈钢色 |
| EIR6SF-21EL-130SS | 21W | 220V AC/50Hz | ON-OFF | 13° | 3000 | 不锈钢色 |
| EIR6SF-21EL-140SS | 21W | 220V AC/50Hz | ON-OFF | 13° | 4000 | 不锈钢色 |
| EIR6SF-21EL-227SS | 21W | 220V AC/50Hz | ON-OFF | 20° | 2700 | 不锈钢色 |
| EIR6SF-21EL-230SS | 21W | 220V AC/50Hz | ON-OFF | 20° | 3000 | 不锈钢色 |
| EIR6SF-21EL-240SS | 21W | 220V AC/50Hz | ON-OFF | 20° | 4000 | 不锈钢色 |
| EIR6SF-21EL-327SS | 21W | 220V AC/50Hz | ON-OFF | 30° | 2700 | 不锈钢色 |
| EIR6SF-21EL-330SS | 21W | 220V AC/50Hz | ON-OFF | 30° | 3000 | 不锈钢色 |
| EIR6SF-21EL-340SS | 21W | 220V AC/50Hz | ON-OFF | 30° | 4000 | 不锈钢色 |
| EIR6SF-21EL-S27SS | 21W | 220V AC/50Hz | ON-OFF | 7° | 2700 | 不锈钢色 |
| EIR6SF-21EL-S30SS | 21W | 220V AC/50Hz | ON-OFF | 7° | 3000 | 不锈钢色 |
| EIR6SF-21EL-S40SS | 21W | 220V AC/50Hz | ON-OFF | 7° | 4000 | 不锈钢色 |
