FUEGO Compact 面框采用优质316不锈钢，灯体铝压铸成型，高温粉末喷涂，适用于户外环境，IP67 防护等级， IK08 防冲击等级，可抗压 2000kg。配合预埋筒得设计，方便客户安装与维护。高透光率透镜，应用于住宅区、广场、公园、购物中心、雕塑装饰照明等。

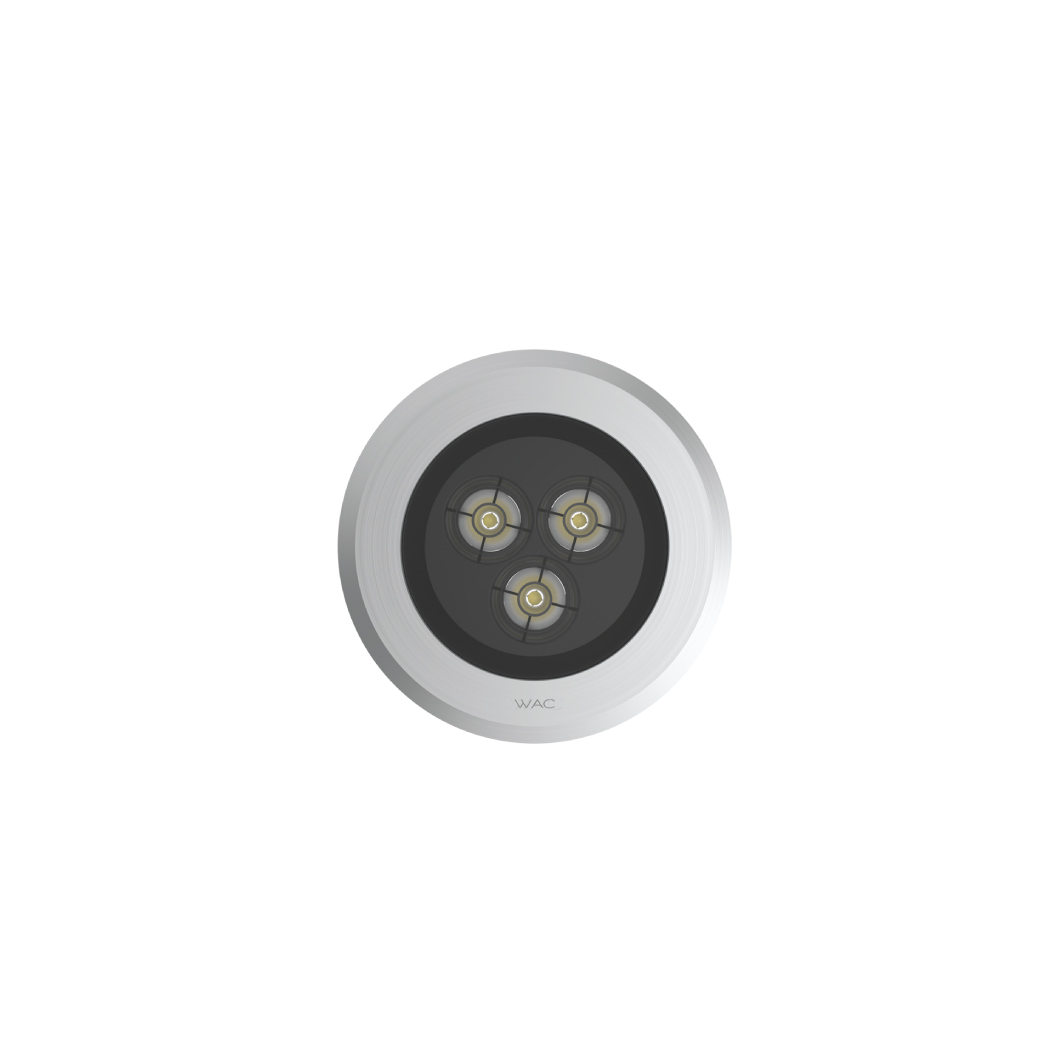

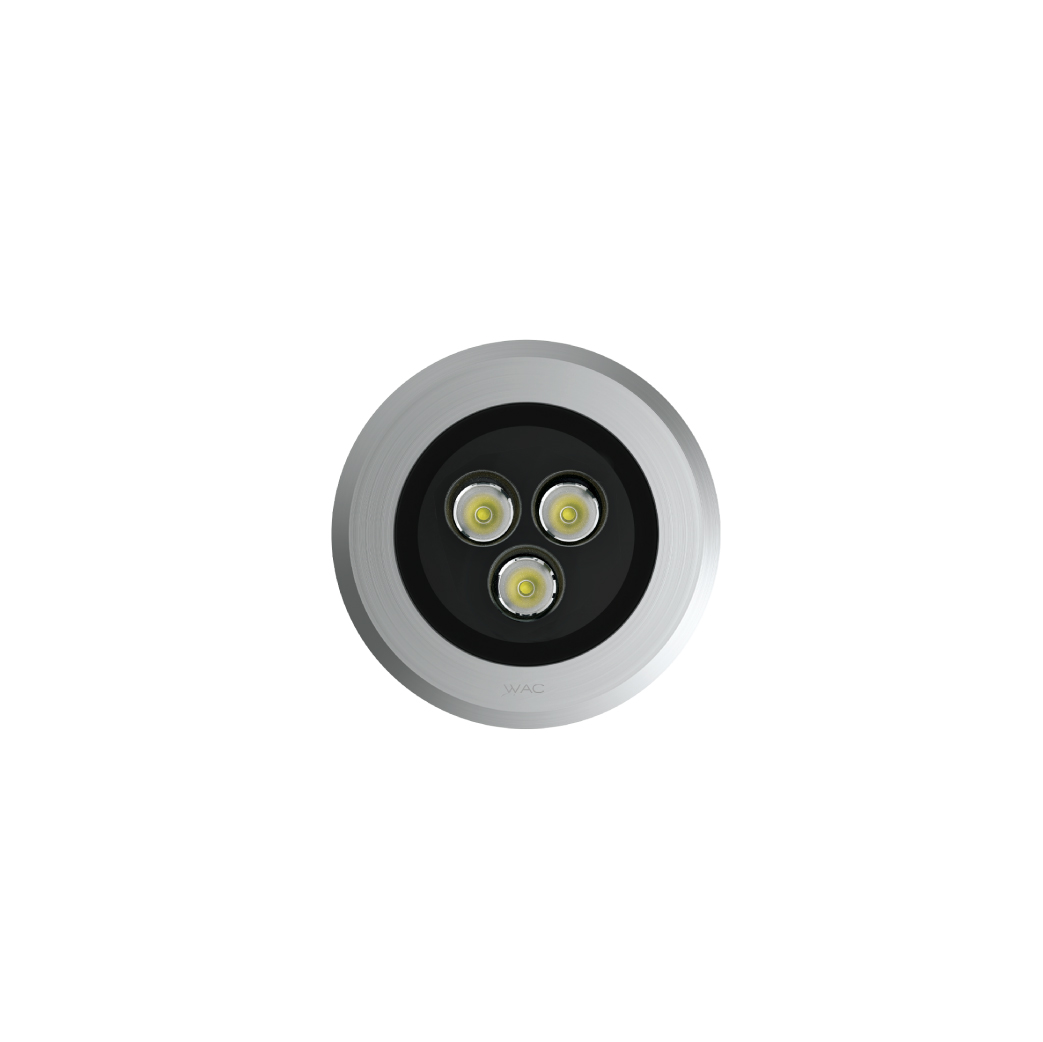

Fuego Compact
| 型号 | 光源功率（W） | 输入电压/电流 | 调光控制 | 光束角 | 色温（K） | 表面颜色 |
|---|---|---|---|---|---|---|
| EIR5TF-05ML-127SS | 5W | 220V AC/50Hz | DMX512 Dimming | 13° | 2700 | 不锈钢色 |
| EIR5TF-05ML-130SS | 5W | 220V AC/50Hz | DMX512 Dimming | 13° | 3000 | 不锈钢色 |
| EIR5TF-05ML-140SS | 5W | 220V AC/50Hz | DMX512 Dimming | 13° | 4000 | 不锈钢色 |
| EIR5TF-05ML-227SS | 5W | 220V AC/50Hz | DMX512 Dimming | 20° | 2700 | 不锈钢色 |
| EIR5TF-05ML-230SS | 5W | 220V AC/50Hz | DMX512 Dimming | 20° | 3000 | 不锈钢色 |
| EIR5TF-05ML-240SS | 5W | 220V AC/50Hz | DMX512 Dimming | 20° | 4000 | 不锈钢色 |
| EIR5TF-05ML-327SS | 5W | 220V AC/50Hz | DMX512 Dimming | 30° | 2700 | 不锈钢色 |
| EIR5TF-05ML-330SS | 5W | 220V AC/50Hz | DMX512 Dimming | 30° | 3000 | 不锈钢色 |
| EIR5TF-05ML-340SS | 5W | 220V AC/50Hz | DMX512 Dimming | 30° | 4000 | 不锈钢色 |
| EIR5TF-05ML-S27SS | 5W | 220V AC/50Hz | DMX512 Dimming | 6° | 2700 | 不锈钢色 |
| EIR5TF-05ML-S30SS | 5W | 220V AC/50Hz | DMX512 Dimming | 6° | 3000 | 不锈钢色 |
| EIR5TF-05ML-S40SS | 5W | 220V AC/50Hz | DMX512 Dimming | 6° | 4000 | 不锈钢色 |
| EIR5TF-06EL-127SS | 6W | 220V AC/50Hz | ON-OFF | 13° | 2700 | 不锈钢色 |
| EIR5TF-06EL-130SS | 6W | 220V AC/50Hz | ON-OFF | 13° | 3000 | 不锈钢色 |
| EIR5TF-06EL-140SS | 6W | 220V AC/50Hz | ON-OFF | 13° | 4000 | 不锈钢色 |
| EIR5TF-06EL-227SS | 6W | 220V AC/50Hz | ON-OFF | 20° | 2700 | 不锈钢色 |
| EIR5TF-06EL-230SS | 6W | 220V AC/50Hz | ON-OFF | 20° | 3000 | 不锈钢色 |
| EIR5TF-06EL-240SS | 6W | 220V AC/50Hz | ON-OFF | 20° | 4000 | 不锈钢色 |
| EIR5TF-06EL-327SS | 6W | 220V AC/50Hz | ON-OFF | 30° | 2700 | 不锈钢色 |
| EIR5TF-06EL-330SS | 6W | 220V AC/50Hz | ON-OFF | 30° | 3000 | 不锈钢色 |
| EIR5TF-06EL-340SS | 6W | 220V AC/50Hz | ON-OFF | 30° | 4000 | 不锈钢色 |
| EIR5TF-06EL-S27SS | 6W | 220V AC/50Hz | ON-OFF | 6° | 2700 | 不锈钢色 |
| EIR5TF-06EL-S30SS | 6W | 220V AC/50Hz | ON-OFF | 6° | 3000 | 不锈钢色 |
| EIR5TF-06EL-S40SS | 6W | 220V AC/50Hz | ON-OFF | 6° | 4000 | 不锈钢色 |
| EIR6TF-05ML-127SS | 5W | 220V AC/50Hz | DMX512 Dimming | 13° | 2700 | 不锈钢色 |
| EIR6TF-05ML-130SS | 5W | 220V AC/50Hz | DMX512 Dimming | 13° | 3000 | 不锈钢色 |
| EIR6TF-05ML-140SS | 5W | 220V AC/50Hz | DMX512 Dimming | 13° | 4000 | 不锈钢色 |
| EIR6TF-05ML-227SS | 5W | 220V AC/50Hz | DMX512 Dimming | 20° | 2700 | 不锈钢色 |
| EIR6TF-05ML-230SS | 5W | 220V AC/50Hz | DMX512 Dimming | 20° | 3000 | 不锈钢色 |
| EIR6TF-05ML-240SS | 5W | 220V AC/50Hz | DMX512 Dimming | 20° | 4000 | 不锈钢色 |
| EIR6TF-05ML-327SS | 5W | 220V AC/50Hz | DMX512 Dimming | 30° | 2700 | 不锈钢色 |
| EIR6TF-05ML-330SS | 5W | 220V AC/50Hz | DMX512 Dimming | 30° | 3000 | 不锈钢色 |
| EIR6TF-05ML-340SS | 5W | 220V AC/50Hz | DMX512 Dimming | 30° | 4000 | 不锈钢色 |
| EIR6TF-05ML-S27SS | 5W | 220V AC/50Hz | DMX512 Dimming | 6° | 2700 | 不锈钢色 |
| EIR6TF-05ML-S30SS | 5W | 220V AC/50Hz | DMX512 Dimming | 6° | 3000 | 不锈钢色 |
| EIR6TF-05ML-S40SS | 5W | 220V AC/50Hz | DMX512 Dimming | 6° | 4000 | 不锈钢色 |
| EIR6TF-06EL-127SS | 6W | 220V AC/50Hz | ON-OFF | 13° | 2700 | 不锈钢色 |
| EIR6TF-06EL-130SS | 6W | 220V AC/50Hz | ON-OFF | 13° | 3000 | 不锈钢色 |
| EIR6TF-06EL-140SS | 6W | 220V AC/50Hz | ON-OFF | 13° | 4000 | 不锈钢色 |
| EIR6TF-06EL-227SS | 6W | 220V AC/50Hz | ON-OFF | 20° | 2700 | 不锈钢色 |
| EIR6TF-06EL-230SS | 6W | 220V AC/50Hz | ON-OFF | 20° | 3000 | 不锈钢色 |
| EIR6TF-06EL-240SS | 6W | 220V AC/50Hz | ON-OFF | 20° | 4000 | 不锈钢色 |
| EIR6TF-06EL-327SS | 6W | 220V AC/50Hz | ON-OFF | 30° | 2700 | 不锈钢色 |
| EIR6TF-06EL-330SS | 6W | 220V AC/50Hz | ON-OFF | 30° | 3000 | 不锈钢色 |
| EIR6TF-06EL-340SS | 6W | 220V AC/50Hz | ON-OFF | 30° | 4000 | 不锈钢色 |
| EIR6TF-06EL-S27SS | 6W | 220V AC/50Hz | ON-OFF | 6° | 2700 | 不锈钢色 |
| EIR6TF-06EL-S30SS | 6W | 220V AC/50Hz | ON-OFF | 6° | 3000 | 不锈钢色 |
| EIR6TF-06EL-S40SS | 6W | 220V AC/50Hz | ON-OFF | 6° | 4000 | 不锈钢色 |
