低调的轮廓设计与高性能的光学表现更突显环境，PANTHER 系列灯具具有多种尺寸以及最新的 LED 技术。可以垂直与水平方向精确调节转动。可应用于建筑立面或景观投射等场所。

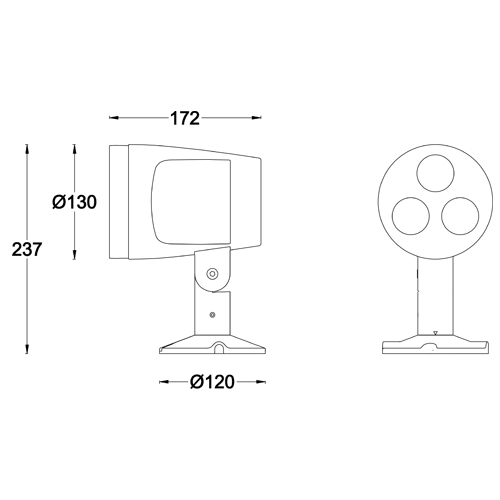

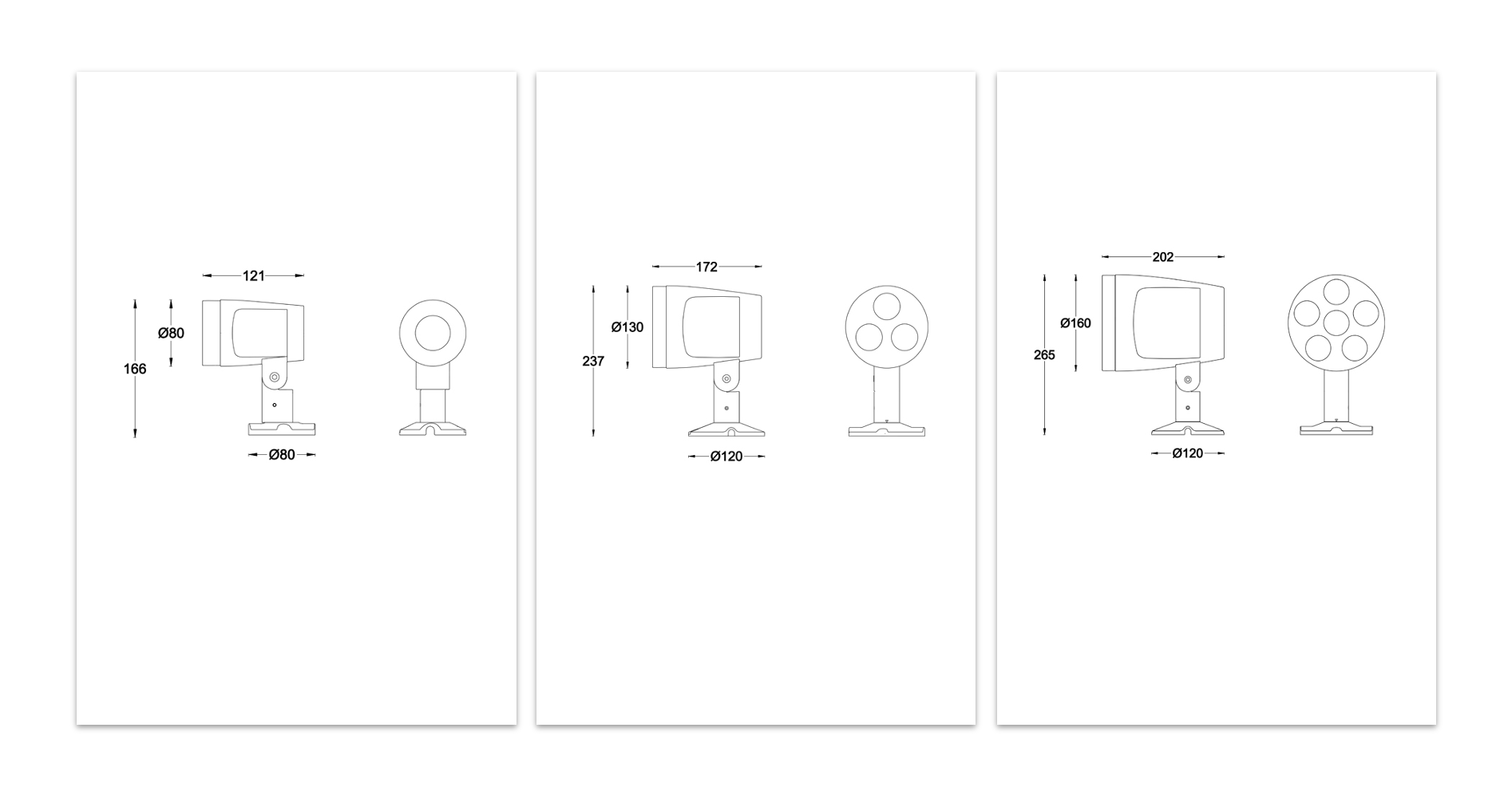

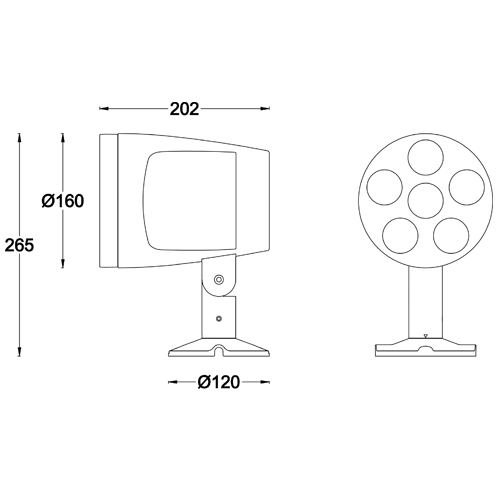

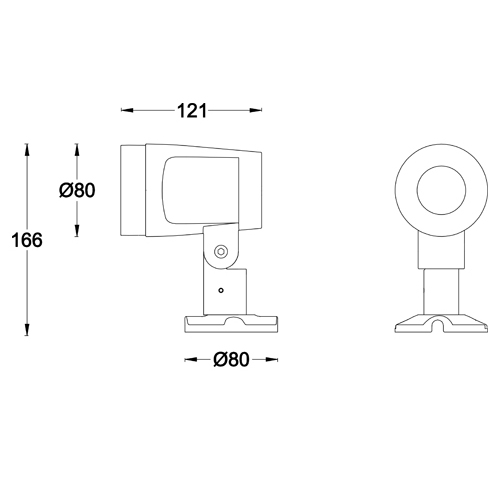

Φ80/Φ130/Φ160 产品尺寸预览图
| Model | Power (W) | LEDs (quantity) | Max Lumens(lm) | Control Systems | Beam | CCT | Finish |
EP3NI-07 | 5.5(Max) | 1 | 244 | MT DMX512 Dimming 24V DC Power Supply | 1 16° 2 25° 3 35° | F30 RGBW (W3000K) F40 RGBW (W4000K) F60 RGBW (W6000K) | BK Black |
| Model | Power (W) | LEDs (quantity) | Max Lumens(lm) | Control Systems | Beam | CCT | Finish |
EP3MI-20 | 20(Max) | 3 | 743 | MT DMX512 Dimming 24V DC Power Supply | 1 16° 2 25° 3 35° | F30 RGBW (W3000K) F40 RGBW (W4000K) F60 RGBW (W6000K) | BK Black |
| Model | Power (W) | LEDs (quantity) | Max Lumens(lm) | Control Systems | Beam | CCT | Finish |
EP3LI-40 | 31(Max) | 6 | 1566 | MT DMX512 Dimming 24V DC Power Supply | 1 16° 2 25° 3 35° | F30 RGBW (W3000K) F40 RGBW (W4000K) F60 RGBW (W6000K) | BK Black |
示例：EP3LI-40MT-1F30BK
| 型号 | 光源功率（W） | 输入电压/电流 | 调光控制 | 光束角 | 色温（K） | 表面颜色 |
|---|---|---|---|---|---|---|
| EP3LI-40MT-1F30BK | 30.6W | 24V DC | DMX512 Dimming | 16° | RGBW(3000K) | 黑色 |
| EP3LI-40MT-1F40BK | 30.6W | 24V DC | DMX512 Dimming | 16° | RGBW(4000K) | 黑色 |
| EP3LI-40MT-1F60BK | 30.6W | 24V DC | DMX512 Dimming | 16° | RGBW(6000K) | 黑色 |
| EP3LI-40MT-2F30BK | 30.6W | 24V DC | DMX512 Dimming | 25° | RGBW(3000K) | 黑色 |
| EP3LI-40MT-2F40BK | 30.6W | 24V DC | DMX512 Dimming | 25° | RGBW(4000K) | 黑色 |
| EP3LI-40MT-2F60BK | 30.6W | 24V DC | DMX512 Dimming | 25° | RGBW(6000K) | 黑色 |
| EP3LI-40MT-3F30BK | 30.6W | 24V DC | DMX512 Dimming | 35° | RGBW(3000K) | 黑色 |
| EP3LI-40MT-3F40BK | 30.6W | 24V DC | DMX512 Dimming | 35° | RGBW(4000K) | 黑色 |
| EP3LI-40MT-3F60BK | 30.6W | 24V DC | DMX512 Dimming | 35° | RGBW(6000K) | 黑色 |
| EP3MI-20MT-1F30BK | 16.5W | 24V DC | DMX512 Dimming | 16° | RGBW(3000K) | 黑色 |
| EP3MI-20MT-1F40BK | 16.5W | 24V DC | DMX512 Dimming | 16° | RGBW(4000K) | 黑色 |
| EP3MI-20MT-1F60BK | 16.5W | 24V DC | DMX512 Dimming | 16° | RGBW(6000K) | 黑色 |
| EP3MI-20MT-2F30BK | 16.5W | 24V DC | DMX512 Dimming | 25° | RGBW(3000K) | 黑色 |
| EP3MI-20MT-2F40BK | 16.5W | 24V DC | DMX512 Dimming | 25° | RGBW(4000K) | 黑色 |
| EP3MI-20MT-2F60BK | 16.5W | 24V DC | DMX512 Dimming | 25° | RGBW(6000K) | 黑色 |
| EP3MI-20MT-3F30BK | 16.5W | 24V DC | DMX512 Dimming | 35° | RGBW(3000K) | 黑色 |
| EP3MI-20MT-3F40BK | 16.5W | 24V DC | DMX512 Dimming | 35° | RGBW(4000K) | 黑色 |
| EP3MI-20MT-3F60BK | 16.5W | 24V DC | DMX512 Dimming | 35° | RGBW(6000K) | 黑色 |
| EP3NI-07MT-1F30BK | 5.5W | 24V DC | DMX512 Dimming | 16° | RGBW(3000K) | 黑色 |
| EP3NI-07MT-1F40BK | 5.5W | 24V DC | DMX512 Dimming | 16° | RGBW(4000K) | 黑色 |
| EP3NI-07MT-1F60BK | 5.5W | 24V DC | DMX512 Dimming | 16° | RGBW(6000K) | 黑色 |
| EP3NI-07MT-2F30BK | 5.5W | 24V DC | DMX512 Dimming | 25° | RGBW(3000K) | 黑色 |
| EP3NI-07MT-2F40BK | 5.5W | 24V DC | DMX512 Dimming | 25° | RGBW(4000K) | 黑色 |
| EP3NI-07MT-2F60BK | 5.5W | 24V DC | DMX512 Dimming | 25° | RGBW(6000K) | 黑色 |
| EP3NI-07MT-3F30BK | 5.5W | 24V DC | DMX512 Dimming | 35° | RGBW(3000K) | 黑色 |
| EP3NI-07MT-3F40BK | 5.5W | 24V DC | DMX512 Dimming | 35° | RGBW(4000K) | 黑色 |
| EP3NI-07MT-3F60BK | 5.5W | 24V DC | DMX512 Dimming | 35° | RGBW(6000K) | 黑色 |
