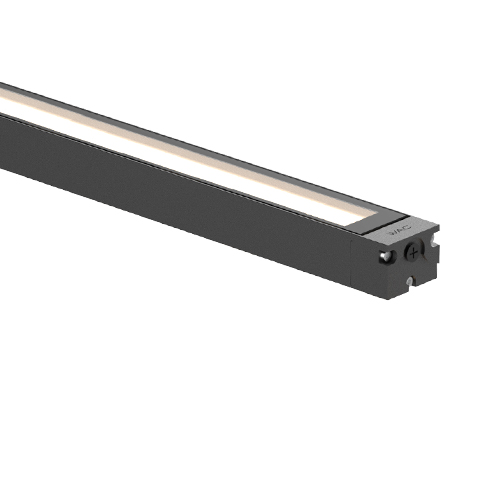

灯具配备光效强，寿命长的高质量芯片以及独特光学性能的透镜，结合等间距排布设计，保证了均匀的出光。灯具从侧边或底部出线，特殊配置的 Gore 呼吸阀，可有效平衡内外部气压，以防冷凝水，符合 LEED 户外照明功耗设计的要求。

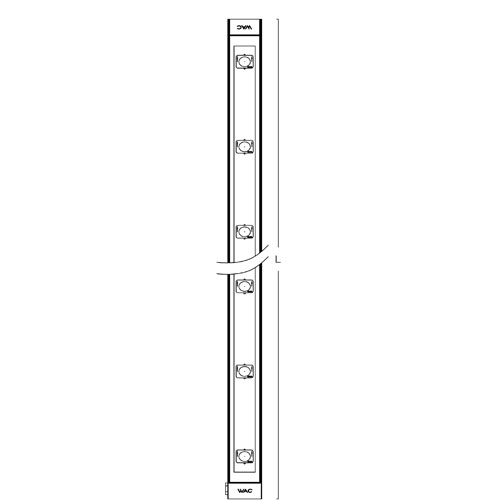

| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
ELV103-07 | 300 | 07(Max) | 3 | 368 | ET ON-OFF 24V DC Power Supply EC Max 700mA Drive MT DMX512 Dimming 24V DC Power Supply | C 60°*100° | S Side B Bottom | 30 3000K 40 4000K | B Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
ELV106-14 | 600 | 14(Max) | 6 | 748 | ET ON-OFF 24V DC Power Supply EC Max 700mA Drive MT DMX512 Dimming 24V DC Power Supply | C 60°*100° | S Side B Bottom | 30 3000K 40 4000K | B Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
ELV109-21 | 900 | 21(Max) | 9 | 1088 | ET ON-OFF 24V DC Power Supply EC Max 700mA Drive MT DMX512 Dimming 24V DC Power Supply | C 60°*100° | S Side B Bottom | 30 3000K 40 4000K | B Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
ELV112-28 | 1200 | 28(Max) | 12 | 1399 | ET ON-OFF 24V DC Power Supply EC Max 700mA Drive MT DMX512 Dimming 24V DC Power Supply | C 60°*100° | S Side B Bottom | 30 3000K 40 4000K | B Black |
示例：ELV103-07MT-CS30-B
| 型号 | 灯具长度/尺寸 | 光源功率（W） | 输入电压/电流 | 调光控制 | 光束角 | 出线方式 | 色温（K） | 表面颜色 |
|---|---|---|---|---|---|---|---|---|
| ELV103-07ET-CB30BK | 300mm | 7W | 24V DC | ON-OFF | 60x100° | 底部出线 | 3000 | 黑色 |
| ELV103-07ET-CB40BK | 300mm | 7W | 24V DC | ON-OFF | 60x100° | 底部出线 | 4000 | 黑色 |
| ELV103-07ET-CS30BK | 300mm | 7W | 24V DC | ON-OFF | 60x100° | 侧出线 | 3000 | 黑色 |
| ELV103-07ET-CS40BK | 300mm | 7W | 24V DC | ON-OFF | 60x100° | 侧出线 | 4000 | 黑色 |
| ELV103-07MT-CB30BK | 300mm | 7W | 24V DC | DMX512 Dimming | 60x100° | 底部出线 | 3000 | 黑色 |
| ELV103-07MT-CB40BK | 300mm | 7W | 24V DC | DMX512 Dimming | 60x100° | 底部出线 | 4000 | 黑色 |
| ELV103-07MT-CS30BK | 300mm | 7W | 24V DC | DMX512 Dimming | 60x100° | 侧出线 | 3000 | 黑色 |
| ELV103-07MT-CS40BK | 300mm | 7W | 24V DC | DMX512 Dimming | 60x100° | 侧出线 | 4000 | 黑色 |
| ELV106-14ET-CB30BK | 600mm | 14W | 24V DC | ON-OFF | 60x100° | 底部出线 | 3000 | 黑色 |
| ELV106-14ET-CB40BK | 600mm | 14W | 24V DC | ON-OFF | 60x100° | 底部出线 | 4000 | 黑色 |
| ELV106-14ET-CS30BK | 600mm | 14W | 24V DC | ON-OFF | 60x100° | 侧出线 | 3000 | 黑色 |
| ELV106-14ET-CS40BK | 600mm | 14W | 24V DC | ON-OFF | 60x100° | 侧出线 | 4000 | 黑色 |
| ELV106-14MT-CB30BK | 600mm | 14W | 24V DC | DMX512 Dimming | 60x100° | 底部出线 | 3000 | 黑色 |
| ELV106-14MT-CB40BK | 600mm | 14W | 24V DC | DMX512 Dimming | 60x100° | 底部出线 | 4000 | 黑色 |
| ELV106-14MT-CS30BK | 600mm | 14W | 24V DC | DMX512 Dimming | 60x100° | 侧出线 | 3000 | 黑色 |
| ELV106-14MT-CS40BK | 600mm | 14W | 24V DC | DMX512 Dimming | 60x100° | 侧出线 | 4000 | 黑色 |
| ELV109-21ET-CB30BK | 900mm | 21W | 24V DC | ON-OFF | 60x100° | 底部出线 | 3000 | 黑色 |
| ELV109-21ET-CB40BK | 900mm | 21W | 24V DC | ON-OFF | 60x100° | 底部出线 | 4000 | 黑色 |
| ELV109-21ET-CS30BK | 900mm | 21W | 24V DC | ON-OFF | 60x100° | 侧出线 | 3000 | 黑色 |
| ELV109-21ET-CS40BK | 900mm | 21W | 24V DC | ON-OFF | 60x100° | 侧出线 | 4000 | 黑色 |
| ELV109-21MT-CB30BK | 900mm | 21W | 24V DC | DMX512 Dimming | 60x100° | 底部出线 | 3000 | 黑色 |
| ELV109-21MT-CB40BK | 900mm | 21W | 24V DC | DMX512 Dimming | 60x100° | 底部出线 | 4000 | 黑色 |
| ELV109-21MT-CS30BK | 900mm | 21W | 24V DC | DMX512 Dimming | 60x100° | 侧出线 | 3000 | 黑色 |
| ELV109-21MT-CS40BK | 900mm | 21W | 24V DC | DMX512 Dimming | 60x100° | 侧出线 | 4000 | 黑色 |
| ELV112-28ET-CB30BK | 1200mm | 28W | 24V DC | ON-OFF | 60x100° | 底部出线 | 3000 | 黑色 |
| ELV112-28ET-CB40BK | 1200mm | 28W | 24V DC | ON-OFF | 60x100° | 底部出线 | 4000 | 黑色 |
| ELV112-28ET-CS30BK | 1200mm | 28W | 24V DC | ON-OFF | 60x100° | 侧出线 | 3000 | 黑色 |
| ELV112-28ET-CS40BK | 1200mm | 28W | 24V DC | ON-OFF | 60x100° | 侧出线 | 4000 | 黑色 |
| ELV112-28MT-CB30BK | 1200mm | 28W | 24V DC | DMX512 Dimming | 60x100° | 底部出线 | 3000 | 黑色 |
| ELV112-28MT-CB40BK | 1200mm | 28W | 24V DC | DMX512 Dimming | 60x100° | 底部出线 | 4000 | 黑色 |
| ELV112-28MT-CS30BK | 1200mm | 28W | 24V DC | DMX512 Dimming | 60x100° | 侧出线 | 3000 | 黑色 |
| ELV112-28MT-CS40BK | 1200mm | 28W | 24V DC | DMX512 Dimming | 60x100° | 侧出线 | 4000 | 黑色 |
