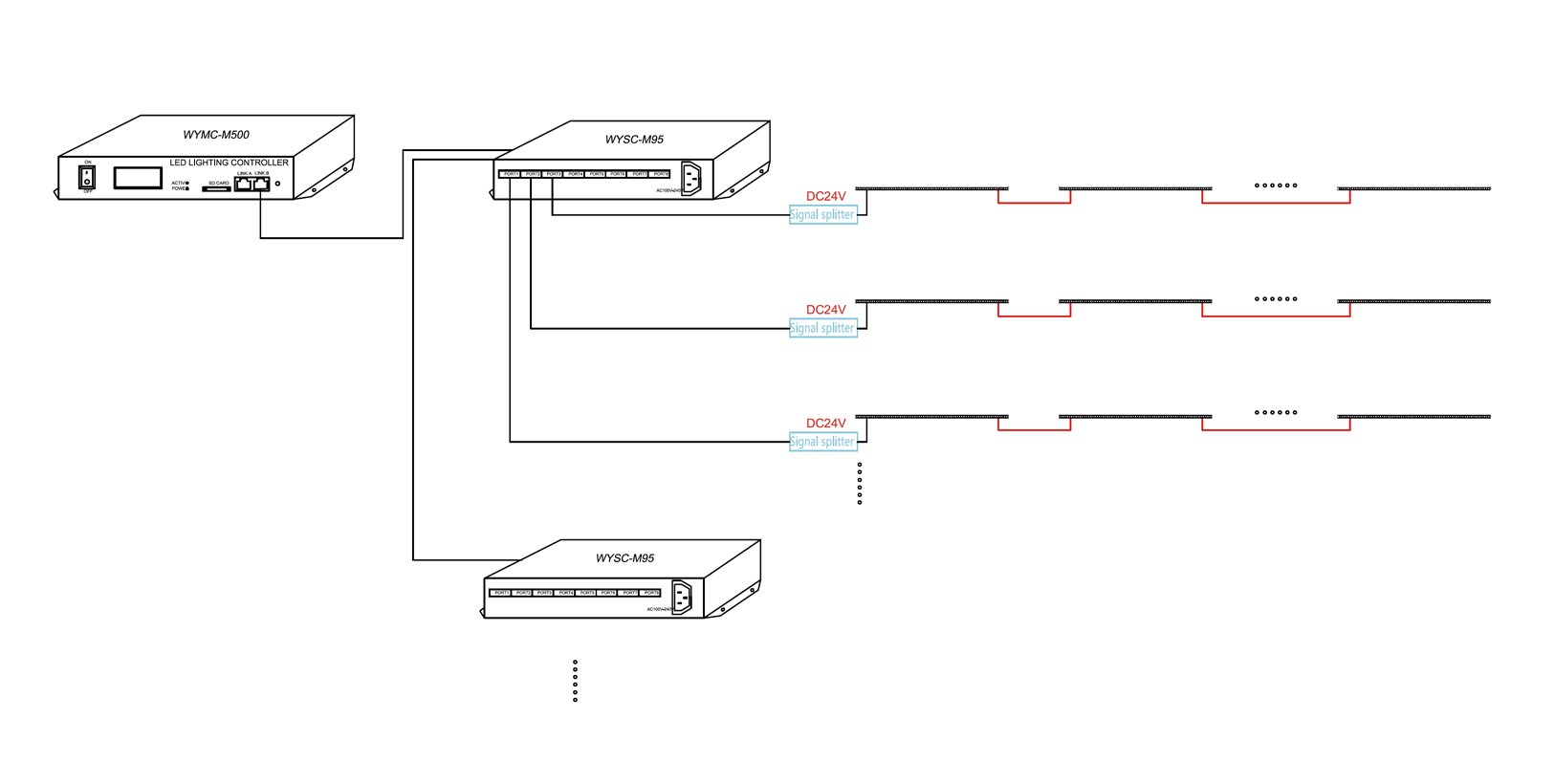

简洁的外观，纤细的灯身，底部柔性出线，满足现场装配及电力电缆要求。DC24V，确保馈电、信号的有效传输，能耗低。DMX512调光控制，带自动编址功能，支架方便安装以及拆卸，维护便利。

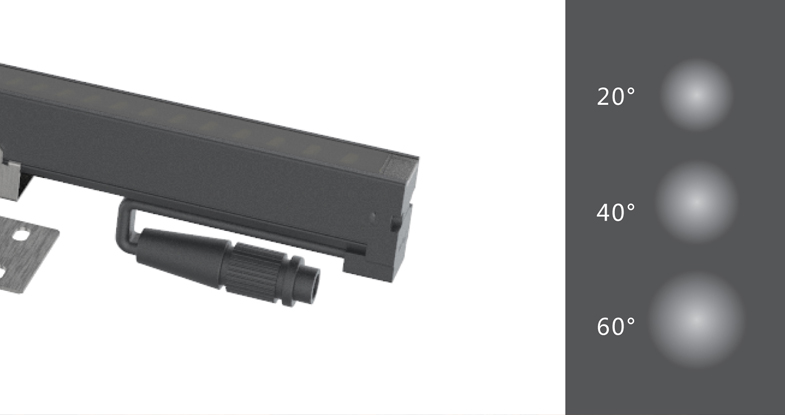

提供20°、40°及60°三种光学配置，满足更多投射及洗墙功能需要。
最多可连续串联灯具达14米。

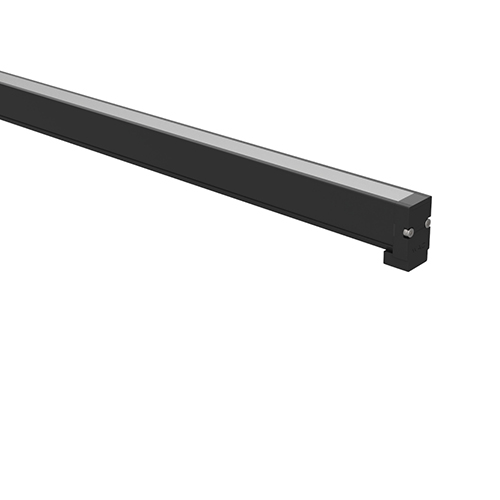

ACCENT C7

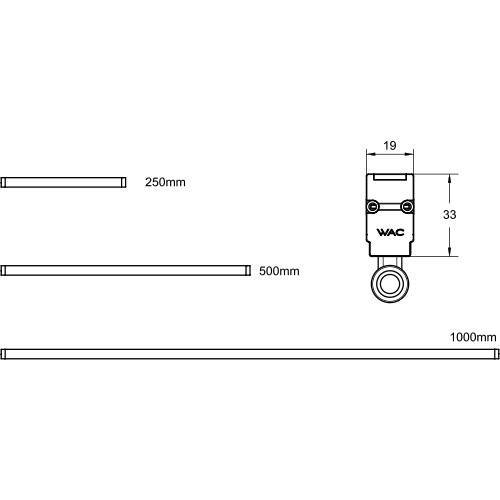

| Model | Length (mm) | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller (m) | CCT | Finish |
ELC703-03 | 250 | 03(Max) | 18 | 177 | ET ON-OFF 24V DC Powe Supply | 2 20° 4 40° 6 60° | 0 W/O Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller (m) | CCT | Finish |
ELC703-03 | 250 | 03(Max) | 18 | 177 | MT DMX512 Dimming 24V DC Power Supply | 2 20° 4 40° 6 60° | 1 1 Phase 6 6 Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller (m) | CCT | Finish |
ELC705-06 | 500 | 06(Max) | 36 | 358 | ET ON-OFF 24V DC Power Supply | 2 20° 4 40° 6 60° | 0 W/O Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller (m) | CCT | Finish |
ELC705-06 | 500 | 06(Max) | 36 | 358 | MT DMX512 Dimming 24V DC Power Supply | 2 20° 4 40° 6 60° | 1 1 Phase 6 6 Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller (m) | CCT | Finish |
ELC710-12 | 1000 | 12(Max) | 72 | 667 | ET ON-OFF 24V DC Power Supply | 2 20° 4 40° 6 60° | 0 W/O Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller (m) | CCT | Finish |
ELC710-12 | 1000 | 12(Max) | 72 | 667 | MT DMX512 Dimming 24V DC Power Supply | 2 20° 4 40° 6 60° | 1 1 Phase 6 6Phase | 27 2700K 30 3000K 40 4000K | BK Black |
示例：ELC710-12ET-2030BK
| 型号 | 灯具长度/尺寸 | 光源功率（W） | 输入电压/电流 | 调光控制 | 光束角 | 控制段数 | 色温（K） | 表面颜色 |
|---|---|---|---|---|---|---|---|---|
| ELC703-03ET-2027BK | 250mm | 3W | 24V DC | ON-OFF | 20° | 2700 | 黑色 | |
| ELC703-03ET-2030BK | 250mm | 3W | 24V DC | ON-OFF | 20° | 3000 | 黑色 | |
| ELC703-03ET-2040BK | 250mm | 3W | 24V DC | ON-OFF | 20° | 4000 | 黑色 | |
| ELC703-03ET-4027BK | 250mm | 3W | 24V DC | ON-OFF | 40° | 2700 | 黑色 | |
| ELC703-03ET-4030BK | 250mm | 3W | 24V DC | ON-OFF | 40° | 3000 | 黑色 | |
| ELC703-03ET-4040BK | 250mm | 3W | 24V DC | ON-OFF | 40° | 4000 | 黑色 | |
| ELC703-03ET-6027BK | 250mm | 3W | 24V DC | ON-OFF | 60° | 2700 | 黑色 | |
| ELC703-03ET-6030BK | 250mm | 3W | 24V DC | ON-OFF | 60° | 3000 | 黑色 | |
| ELC703-03ET-6040BK | 250mm | 3W | 24V DC | ON-OFF | 60° | 4000 | 黑色 | |
| ELC703-03MT-2127BK | 250mm | 3W | 24V DC | DMX512 Dimming | 20° | 每米1段 | 2700 | 黑色 |
| ELC703-03MT-2130BK | 250mm | 3W | 24V DC | DMX512 Dimming | 20° | 每米1段 | 3000 | 黑色 |
| ELC703-03MT-2140BK | 250mm | 3W | 24V DC | DMX512 Dimming | 20° | 每米1段 | 4000 | 黑色 |
| ELC703-03MT-2627BK | 250mm | 3W | 24V DC | DMX512 Dimming | 20° | 每米6段 | 2700 | 黑色 |
| ELC703-03MT-2630BK | 250mm | 3W | 24V DC | DMX512 Dimming | 20° | 每米6段 | 3000 | 黑色 |
| ELC703-03MT-2640BK | 250mm | 3W | 24V DC | DMX512 Dimming | 20° | 每米6段 | 4000 | 黑色 |
| ELC703-03MT-4127BK | 250mm | 3W | 24V DC | DMX512 Dimming | 40° | 每米1段 | 2700 | 黑色 |
| ELC703-03MT-4130BK | 250mm | 3W | 24V DC | DMX512 Dimming | 40° | 每米1段 | 3000 | 黑色 |
| ELC703-03MT-4140BK | 250mm | 3W | 24V DC | DMX512 Dimming | 40° | 每米1段 | 4000 | 黑色 |
| ELC703-03MT-4627BK | 250mm | 3W | 24V DC | DMX512 Dimming | 40° | 每米6段 | 2700 | 黑色 |
| ELC703-03MT-4630BK | 250mm | 3W | 24V DC | DMX512 Dimming | 40° | 每米6段 | 3000 | 黑色 |
| ELC703-03MT-4640BK | 250mm | 3W | 24V DC | DMX512 Dimming | 40° | 每米6段 | 4000 | 黑色 |
| ELC703-03MT-6127BK | 250mm | 3W | 24V DC | DMX512 Dimming | 60° | 每米1段 | 2700 | 黑色 |
| ELC703-03MT-6130BK | 250mm | 3W | 24V DC | DMX512 Dimming | 60° | 每米1段 | 3000 | 黑色 |
| ELC703-03MT-6140BK | 250mm | 3W | 24V DC | DMX512 Dimming | 60° | 每米1段 | 4000 | 黑色 |
| ELC703-03MT-6627BK | 250mm | 3W | 24V DC | DMX512 Dimming | 60° | 每米6段 | 2700 | 黑色 |
| ELC703-03MT-6630BK | 250mm | 3W | 24V DC | DMX512 Dimming | 60° | 每米6段 | 3000 | 黑色 |
| ELC703-03MT-6640BK | 250mm | 3W | 24V DC | DMX512 Dimming | 60° | 每米6段 | 4000 | 黑色 |
| ELC705-06ET-2027BK | 500mm | 6W | 24V DC | ON-OFF | 20° | 2700 | 黑色 | |
| ELC705-06ET-2030BK | 500mm | 6W | 24V DC | ON-OFF | 20° | 3000 | 黑色 | |
| ELC705-06ET-2040BK | 500mm | 6W | 24V DC | ON-OFF | 20° | 4000 | 黑色 | |
| ELC705-06ET-4027BK | 500mm | 6W | 24V DC | ON-OFF | 40° | 2700 | 黑色 | |
| ELC705-06ET-4030BK | 500mm | 6W | 24V DC | ON-OFF | 40° | 3000 | 黑色 | |
| ELC705-06ET-4040BK | 500mm | 6W | 24V DC | ON-OFF | 40° | 4000 | 黑色 | |
| ELC705-06ET-6027BK | 500mm | 6W | 24V DC | ON-OFF | 60° | 2700 | 黑色 | |
| ELC705-06ET-6030BK | 500mm | 6W | 24V DC | ON-OFF | 60° | 3000 | 黑色 | |
| ELC705-06ET-6040BK | 500mm | 6W | 24V DC | ON-OFF | 60° | 4000 | 黑色 | |
| ELC705-06MT-2127BK | 500mm | 6W | 24V DC | DMX512 Dimming | 20° | 每米1段 | 2700 | 黑色 |
| ELC705-06MT-2130BK | 500mm | 6W | 24V DC | DMX512 Dimming | 20° | 每米1段 | 3000 | 黑色 |
| ELC705-06MT-2140BK | 500mm | 6W | 24V DC | DMX512 Dimming | 20° | 每米1段 | 4000 | 黑色 |
| ELC705-06MT-2627BK | 500mm | 6W | 24V DC | DMX512 Dimming | 20° | 每米6段 | 2700 | 黑色 |
| ELC705-06MT-2630BK | 500mm | 6W | 24V DC | DMX512 Dimming | 20° | 每米6段 | 3000 | 黑色 |
| ELC705-06MT-2640BK | 500mm | 6W | 24V DC | DMX512 Dimming | 20° | 每米6段 | 4000 | 黑色 |
| ELC705-06MT-4127BK | 500mm | 6W | 24V DC | DMX512 Dimming | 40° | 每米1段 | 2700 | 黑色 |
| ELC705-06MT-4130BK | 500mm | 6W | 24V DC | DMX512 Dimming | 40° | 每米1段 | 3000 | 黑色 |
| ELC705-06MT-4140BK | 500mm | 6W | 24V DC | DMX512 Dimming | 40° | 每米1段 | 4000 | 黑色 |
| ELC705-06MT-4627BK | 500mm | 6W | 24V DC | DMX512 Dimming | 40° | 每米6段 | 2700 | 黑色 |
| ELC705-06MT-4630BK | 500mm | 6W | 24V DC | DMX512 Dimming | 40° | 每米6段 | 3000 | 黑色 |
| ELC705-06MT-4640BK | 500mm | 6W | 24V DC | DMX512 Dimming | 40° | 每米6段 | 4000 | 黑色 |
| ELC705-06MT-6127BK | 500mm | 6W | 24V DC | DMX512 Dimming | 60° | 每米1段 | 2700 | 黑色 |
| ELC705-06MT-6130BK | 500mm | 6W | 24V DC | DMX512 Dimming | 60° | 每米1段 | 3000 | 黑色 |
| ELC705-06MT-6140BK | 500mm | 6W | 24V DC | DMX512 Dimming | 60° | 每米1段 | 4000 | 黑色 |
| ELC705-06MT-6627BK | 500mm | 6W | 24V DC | DMX512 Dimming | 60° | 每米6段 | 2700 | 黑色 |
| ELC705-06MT-6630BK | 500mm | 6W | 24V DC | DMX512 Dimming | 60° | 每米6段 | 3000 | 黑色 |
| ELC705-06MT-6640BK | 500mm | 6W | 24V DC | DMX512 Dimming | 60° | 每米6段 | 4000 | 黑色 |
| ELC710-12ET-2027BK | 1000mm | 12W | 24V DC | ON-OFF | 20° | 2700 | 黑色 | |
| ELC710-12ET-2030BK | 1000mm | 12W | 24V DC | ON-OFF | 20° | 3000 | 黑色 | |
| ELC710-12ET-2040BK | 1000mm | 12W | 24V DC | ON-OFF | 20° | 4000 | 黑色 | |
| ELC710-12ET-4027BK | 1000mm | 12W | 24V DC | ON-OFF | 40° | 2700 | 黑色 | |
| ELC710-12ET-4030BK | 1000mm | 12W | 24V DC | ON-OFF | 40° | 3000 | 黑色 | |
| ELC710-12ET-4040BK | 1000mm | 12W | 24V DC | ON-OFF | 40° | 4000 | 黑色 | |
| ELC710-12ET-6027BK | 1000mm | 12W | 24V DC | ON-OFF | 60° | 2700 | 黑色 | |
| ELC710-12ET-6030BK | 1000mm | 12W | 24V DC | ON-OFF | 60° | 3000 | 黑色 | |
| ELC710-12ET-6040BK | 1000mm | 12W | 24V DC | ON-OFF | 60° | 4000 | 黑色 | |
| ELC710-12MT-2127BK | 1000mm | 12W | 24V DC | DMX512 Dimming | 20° | 每米1段 | 2700 | 黑色 |
| ELC710-12MT-2130BK | 1000mm | 12W | 24V DC | DMX512 Dimming | 20° | 每米1段 | 3000 | 黑色 |
| ELC710-12MT-2140BK | 1000mm | 12W | 24V DC | DMX512 Dimming | 20° | 每米1段 | 4000 | 黑色 |
| ELC710-12MT-2627BK | 1000mm | 12W | 24V DC | DMX512 Dimming | 20° | 每米6段 | 2700 | 黑色 |
| ELC710-12MT-2630BK | 1000mm | 12W | 24V DC | DMX512 Dimming | 20° | 每米6段 | 3000 | 黑色 |
| ELC710-12MT-2640BK | 1000mm | 12W | 24V DC | DMX512 Dimming | 20° | 每米6段 | 4000 | 黑色 |
| ELC710-12MT-4127BK | 1000mm | 12W | 24V DC | DMX512 Dimming | 40° | 每米1段 | 2700 | 黑色 |
| ELC710-12MT-4130BK | 1000mm | 12W | 24V DC | DMX512 Dimming | 40° | 每米1段 | 3000 | 黑色 |
| ELC710-12MT-4140BK | 1000mm | 12W | 24V DC | DMX512 Dimming | 40° | 每米1段 | 4000 | 黑色 |
| ELC710-12MT-4627BK | 1000mm | 12W | 24V DC | DMX512 Dimming | 40° | 每米6段 | 2700 | 黑色 |
| ELC710-12MT-4630BK | 1000mm | 12W | 24V DC | DMX512 Dimming | 40° | 每米6段 | 3000 | 黑色 |
| ELC710-12MT-4640BK | 1000mm | 12W | 24V DC | DMX512 Dimming | 40° | 每米6段 | 4000 | 黑色 |
| ELC710-12MT-6127BK | 1000mm | 12W | 24V DC | DMX512 Dimming | 60° | 每米1段 | 2700 | 黑色 |
| ELC710-12MT-6130BK | 1000mm | 12W | 24V DC | DMX512 Dimming | 60° | 每米1段 | 3000 | 黑色 |
| ELC710-12MT-6140BK | 1000mm | 12W | 24V DC | DMX512 Dimming | 60° | 每米1段 | 4000 | 黑色 |
| ELC710-12MT-6627BK | 1000mm | 12W | 24V DC | DMX512 Dimming | 60° | 每米6段 | 2700 | 黑色 |
| ELC710-12MT-6630BK | 1000mm | 12W | 24V DC | DMX512 Dimming | 60° | 每米6段 | 3000 | 黑色 |
| ELC710-12MT-6640BK | 1000mm | 12W | 24V DC | DMX512 Dimming | 60° | 每米6段 | 4000 | 黑色 |
