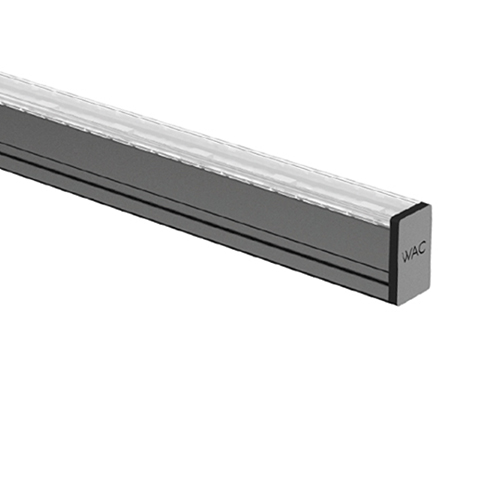

等间距排布设计，保证了均匀的出光效果，无阴影。符合 LEED 户外照明功耗设计的要求，整洁轻巧的外观确保轻松装配到外墙。配备柔性电缆，可自由选择侧面或底部出线，满足项目需求。灯具支持 DMX512 调光控制，带自动编址功能。

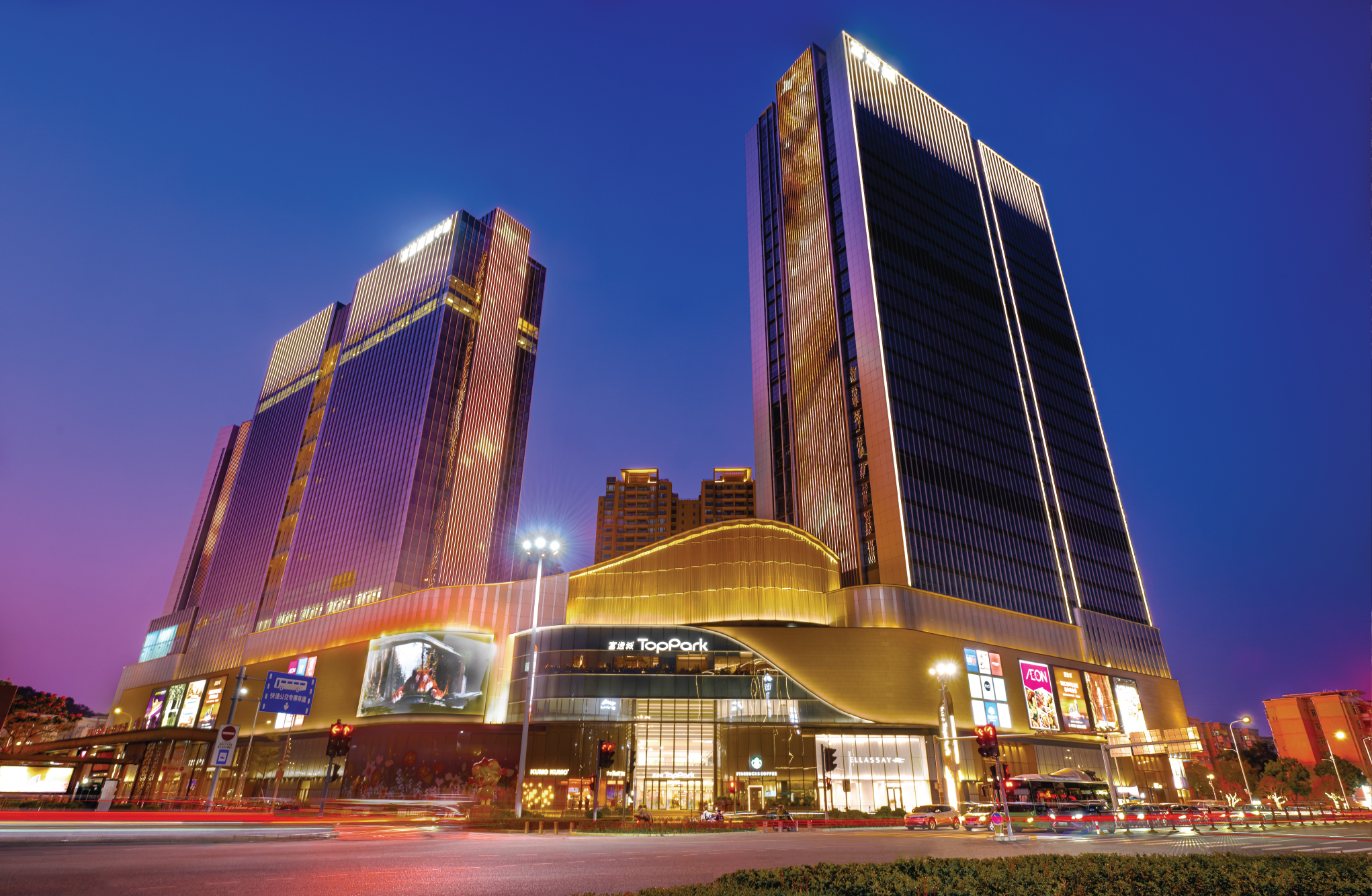

中山富逸城
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
ELC503-03 | 250 | 03(Max) | 12 | 163 | ET ON-OFF 24V DC Powe Supply | A 120° | 0 W/O Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
ELC503-03 | 250 | 03(Max) | 12 | 163 | MT DMX512 Dimming 24V DC Power Supply | A 120° | 1 1 Phase 4 4 Phase 8 8 Phase | 27 2700K 30 3000K 40 4000K FC RGB FW RGBW | BK Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
ELC505-06 | 500 | 06(Max) | 24 | 325 | ET ON-OFF 24V DC Power Supply | A 120° | 0 W/O Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
ELC505-06 | 500 | 06(Max) | 24 | 325 | MT DMX512 Dimming 24V DC Power Supply | A 120° | 1 1 Phase 4 4 Phase 8 8 Phase | 27 2700K 30 3000K 40 4000K FC RGB FW RGBW | BK Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
ELC510-12 | 1000 | 12(Max) | 48 | 649 | ET ON-OFF 24V DC Power Supply | A 120° | 0 W/O Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
ELC510-12 | 1000 | 12(Max) | 48 | 649 | MT DMX512 Dimming 24V DC Power Supply | A 120° | 1 1 Phase 4 4 Phase 8 8Phase | 27 2700K 30 3000K 40 4000K FC RGB FW RGBW | BK Black |
示例：ELC510-12ET-A027BK
| 型号 | 灯具长度/尺寸 | 光源功率（W） | 输入电压/电流 | 调光控制 | 光束角 | 控制段数 | 色温（K） | 表面颜色 |
|---|---|---|---|---|---|---|---|---|
| ELC503-03ET-A027BK | 250mm | 2.5W | 24V DC | ON-OFF | 120° | 2700 | 黑色 | |
| ELC503-03ET-A030BK | 250mm | 2.5W | 24V DC | ON-OFF | 120° | 3000 | 黑色 | |
| ELC503-03ET-A040BK | 250mm | 2.5W | 24V DC | ON-OFF | 120° | 4000 | 黑色 | |
| ELC503-03MT-A127BK | 250mm | 2.5W | 24V DC | DMX512 Dimming | 120° | 每米1段 | 2700 | 黑色 |
| ELC503-03MT-A130BK | 250mm | 2.5W | 24V DC | DMX512 Dimming | 120° | 每米1段 | 3000 | 黑色 |
| ELC503-03MT-A140BK | 250mm | 2.5W | 24V DC | DMX512 Dimming | 120° | 每米1段 | 4000 | 黑色 |
| ELC503-03MT-A1FCBK | 250mm | 2.5W | 24V DC | DMX512 Dimming | 120° | 每米1段 | RGB | 黑色 |
| ELC503-03MT-A1FWBK | 250mm | 2.5W | 24V DC | DMX512 Dimming | 120° | 每米1段 | RGBW | 黑色 |
| ELC503-03MT-A427BK | 250mm | 2.5W | 24V DC | DMX512 Dimming | 120° | 每米4段 | 2700 | 黑色 |
| ELC503-03MT-A430BK | 250mm | 2.5W | 24V DC | DMX512 Dimming | 120° | 每米4段 | 3000 | 黑色 |
| ELC503-03MT-A440BK | 250mm | 2.5W | 24V DC | DMX512 Dimming | 120° | 每米4段 | 4000 | 黑色 |
| ELC503-03MT-A4FCBK | 250mm | 2.5W | 24V DC | DMX512 Dimming | 120° | 每米4段 | RGB | 黑色 |
| ELC503-03MT-A4FWBK | 250mm | 2.5W | 24V DC | DMX512 Dimming | 120° | 每米4段 | RGBW | 黑色 |
| ELC503-03MT-A827BK | 250mm | 2.5W | 24V DC | DMX512 Dimming | 120° | 每米8段 | 2700 | 黑色 |
| ELC503-03MT-A830BK | 250mm | 2.5W | 24V DC | DMX512 Dimming | 120° | 每米8段 | 3000 | 黑色 |
| ELC503-03MT-A840BK | 250mm | 2.5W | 24V DC | DMX512 Dimming | 120° | 每米8段 | 4000 | 黑色 |
| ELC503-03MT-A8FCBK | 250mm | 2.5W | 24V DC | DMX512 Dimming | 120° | 每米8段 | RGB | 黑色 |
| ELC503-03MT-A8FWBK | 250mm | 2.5W | 24V DC | DMX512 Dimming | 120° | 每米8段 | RGBW | 黑色 |
| ELC505-06ET-A027BK | 500mm | 5W | 24V DC | ON-OFF | 120° | 2700 | 黑色 | |
| ELC505-06ET-A030BK | 500mm | 5W | 24V DC | ON-OFF | 120° | 3000 | 黑色 | |
| ELC505-06ET-A040BK | 500mm | 5W | 24V DC | ON-OFF | 120° | 4000 | 黑色 | |
| ELC505-06MT-A127BK | 500mm | 5W | 24V DC | DMX512 Dimming | 120° | 每米1段 | 2700 | 黑色 |
| ELC505-06MT-A130BK | 500mm | 5W | 24V DC | DMX512 Dimming | 120° | 每米1段 | 3000 | 黑色 |
| ELC505-06MT-A140BK | 500mm | 5W | 24V DC | DMX512 Dimming | 120° | 每米1段 | 4000 | 黑色 |
| ELC505-06MT-A1FCBK | 500mm | 5W | 24V DC | DMX512 Dimming | 120° | 每米1段 | RGB | 黑色 |
| ELC505-06MT-A1FWBK | 500mm | 5W | 24V DC | DMX512 Dimming | 120° | 每米1段 | RGBW | 黑色 |
| ELC505-06MT-A427BK | 500mm | 5W | 24V DC | DMX512 Dimming | 120° | 每米4段 | 2700 | 黑色 |
| ELC505-06MT-A430BK | 500mm | 5W | 24V DC | DMX512 Dimming | 120° | 每米4段 | 3000 | 黑色 |
| ELC505-06MT-A440BK | 500mm | 5W | 24V DC | DMX512 Dimming | 120° | 每米4段 | 4000 | 黑色 |
| ELC505-06MT-A4FCBK | 500mm | 5W | 24V DC | DMX512 Dimming | 120° | 每米4段 | RGB | 黑色 |
| ELC505-06MT-A4FWBK | 500mm | 5W | 24V DC | DMX512 Dimming | 120° | 每米4段 | RGBW | 黑色 |
| ELC505-06MT-A827BK | 500mm | 5W | 24V DC | DMX512 Dimming | 120° | 每米8段 | 2700 | 黑色 |
| ELC505-06MT-A830BK | 500mm | 5W | 24V DC | DMX512 Dimming | 120° | 每米8段 | 3000 | 黑色 |
| ELC505-06MT-A840BK | 500mm | 5W | 24V DC | DMX512 Dimming | 120° | 每米8段 | 4000 | 黑色 |
| ELC505-06MT-A8FCBK | 500mm | 5W | 24V DC | DMX512 Dimming | 120° | 每米8段 | RGB | 黑色 |
| ELC505-06MT-A8FWBK | 500mm | 5W | 24V DC | DMX512 Dimming | 120° | 每米8段 | RGBW | 黑色 |
| ELC510-12ET-A027BK | 1000mm | 10W | 24V DC | ON-OFF | 120° | 2700 | 黑色 | |
| ELC510-12ET-A030BK | 1000mm | 10W | 24V DC | ON-OFF | 120° | 3000 | 黑色 | |
| ELC510-12ET-A040BK | 1000mm | 10W | 24V DC | ON-OFF | 120° | 4000 | 黑色 | |
| ELC510-12MT-A127BK | 1000mm | 10W | 24V DC | DMX512 Dimming | 120° | 每米1段 | 2700 | 黑色 |
| ELC510-12MT-A130BK | 1000mm | 10W | 24V DC | DMX512 Dimming | 120° | 每米1段 | 3000 | 黑色 |
| ELC510-12MT-A140BK | 1000mm | 10W | 24V DC | DMX512 Dimming | 120° | 每米1段 | 4000 | 黑色 |
| ELC510-12MT-A1FCBK | 1000mm | 10W | 24V DC | DMX512 Dimming | 120° | 每米1段 | RGB | 黑色 |
| ELC510-12MT-A1FWBK | 1000mm | 10W | 24V DC | DMX512 Dimming | 120° | 每米1段 | RGBW | 黑色 |
| ELC510-12MT-A427BK | 1000mm | 10W | 24V DC | DMX512 Dimming | 120° | 每米1段 | 2700 | 黑色 |
| ELC510-12MT-A430BK | 1000mm | 10W | 24V DC | DMX512 Dimming | 120° | 每米4段 | 3000 | 黑色 |
| ELC510-12MT-A440BK | 1000mm | 10W | 24V DC | DMX512 Dimming | 120° | 每米4段 | 4000 | 黑色 |
| ELC510-12MT-A4FCBK | 1000mm | 10W | 24V DC | DMX512 Dimming | 120° | 每米4段 | RGB | 黑色 |
| ELC510-12MT-A4FWBK | 1000mm | 10W | 24V DC | DMX512 Dimming | 120° | 每米4段 | RGBW | 黑色 |
| ELC510-12MT-A827BK | 1000mm | 10W | 24V DC | DMX512 Dimming | 120° | 每米8段 | 2700 | 黑色 |
| ELC510-12MT-A830BK | 1000mm | 10W | 24V DC | DMX512 Dimming | 120° | 每米8段 | 3000 | 黑色 |
| ELC510-12MT-A840BK | 1000mm | 10W | 24V DC | DMX512 Dimming | 120° | 每米8段 | 4000 | 黑色 |
| ELC510-12MT-A8FCBK | 1000mm | 10W | 24V DC | DMX512 Dimming | 120° | 每米8段 | RGB | 黑色 |
| ELC510-12MT-A8FWBK | 1000mm | 10W | 24V DC | DMX512 Dimming | 120° | 每米8段 | RGBW | 黑色 |
